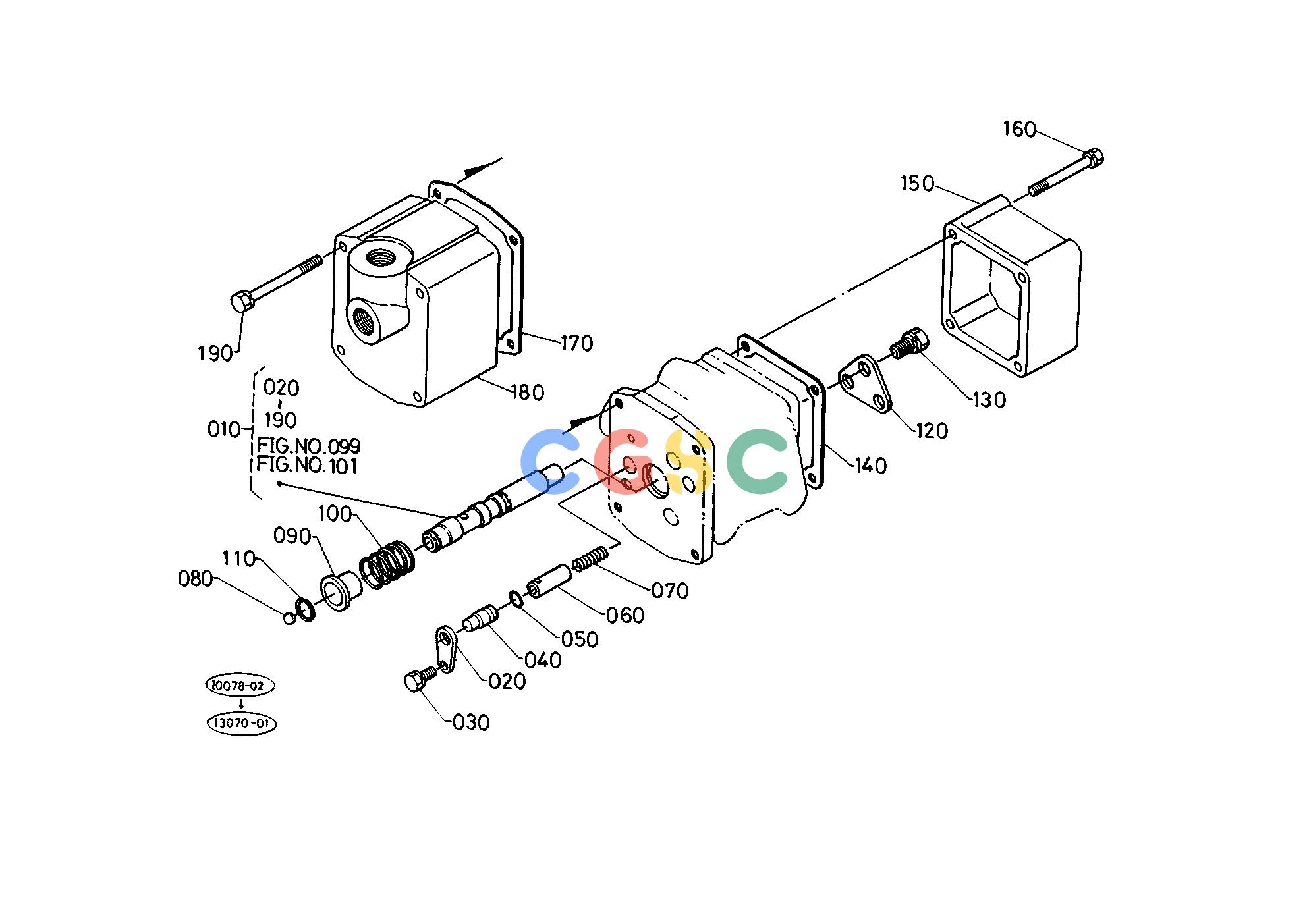

久保田零件查询T10000 CONTROL VALVE 2 [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
460 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636137200
|
[1] |
ASSY VALVE CONTROL
|
0.0000(lbs); 0.000
|
| 020. |
6715636730
|
[1] |
PLATE
|
0.2200(lbs); 0.100
|
| 030. |
0120250610
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 040. |
6715636740
|
[1] |
COVER
|
0.0330(lbs); 0.015
|
| 050. |
0481100070
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 060. |
6636136750
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 070. |
6715636760
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 080. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 090. |
6715636780
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 100. |
6715636790
|
[1] |
SPRING SPOOL
|
0.0220(lbs); 0.010
|
| 110. |
6636136800
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 120. |
6715636820
|
[1] |
PLATE JOINT
|
0.0792(lbs); 0.036
|
| 130. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 140. |
6715636830
|
[1] |
GASKET RELIEF COVER
|
0.0000(lbs); 0.000
|
| 150. |
6715636840
|
[1] |
COVER RELIEF
|
0.3300(lbs); 0.150
|
| 160. |
0122250655
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 170. |
6715636850
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 180. |
6636136860
|
[1] |
COVER VALVE
|
0.9900(lbs); 0.450
|
| 180. |
6636136862
|
[1] |
COVER VALVE
|
1.0780(lbs); 0.490
|
| 190. |
0120250665
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
