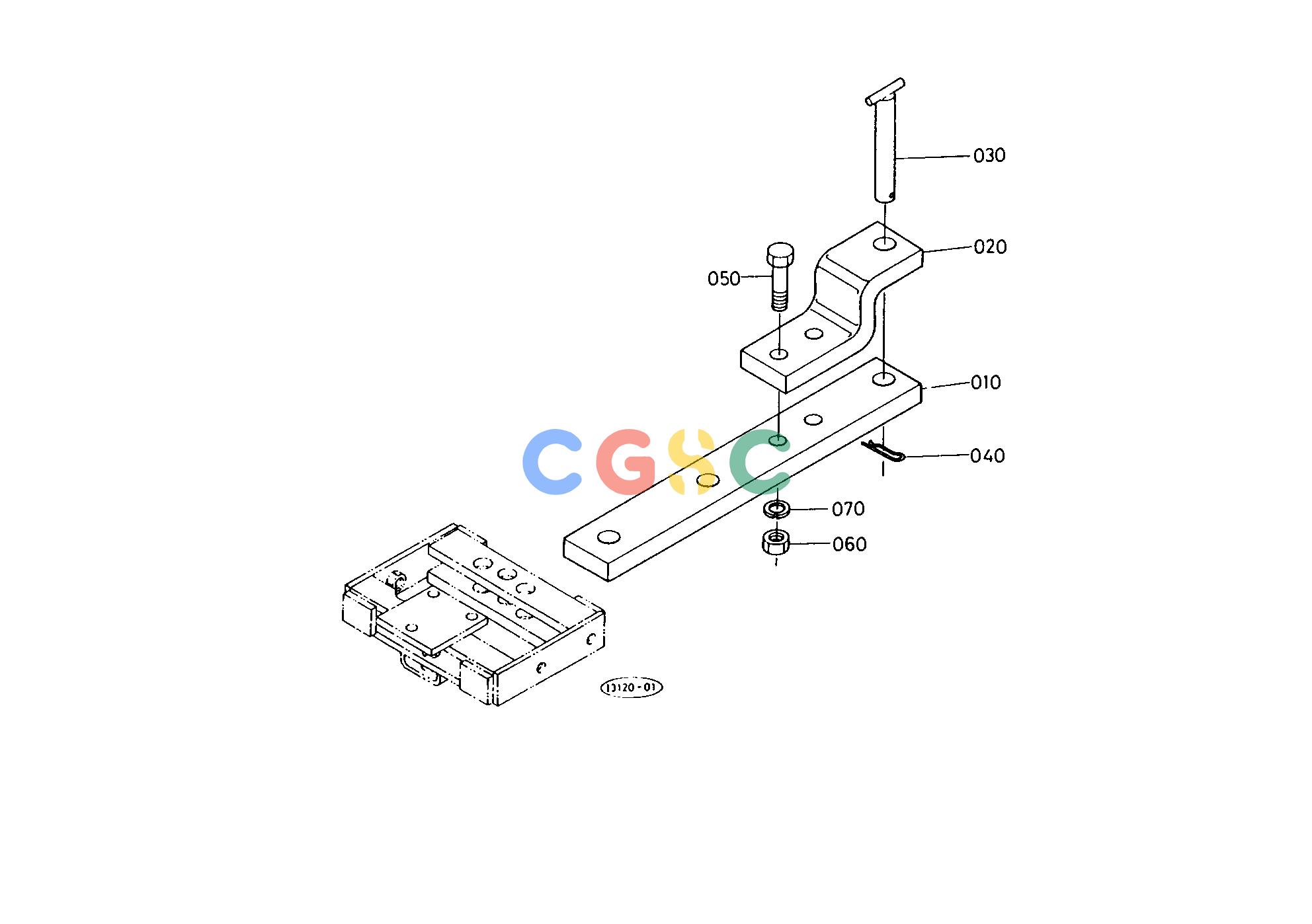

久保田零件查询T10502 DRAWBAR [CA AU] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780029410
|
[1] |
DRAWBAR
|
11.0000(lbs); 5.000
|
| 010. |
6783029410
|
[1] |
DRAWBAR
|
11.9240(lbs); 5.420
|
| 020. |
6783029410
|
[1] |
DRAWBAR
|
11.9240(lbs); 5.420
|
| 030. |
6783029430
|
[1] |
PIN SET
|
0.9900(lbs); 0.450
|
| 040. |
3115029730
|
[1] |
PIN SPRING
|
0.0968(lbs); 0.044
|
| 050. |
0117351665
|
[2] |
BOLT
|
0.2574(lbs); 0.117
|
| 060. |
0217650160
|
[2] |
NUT
|
0.0462(lbs); 0.021
|
| 070. |
0451250160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
