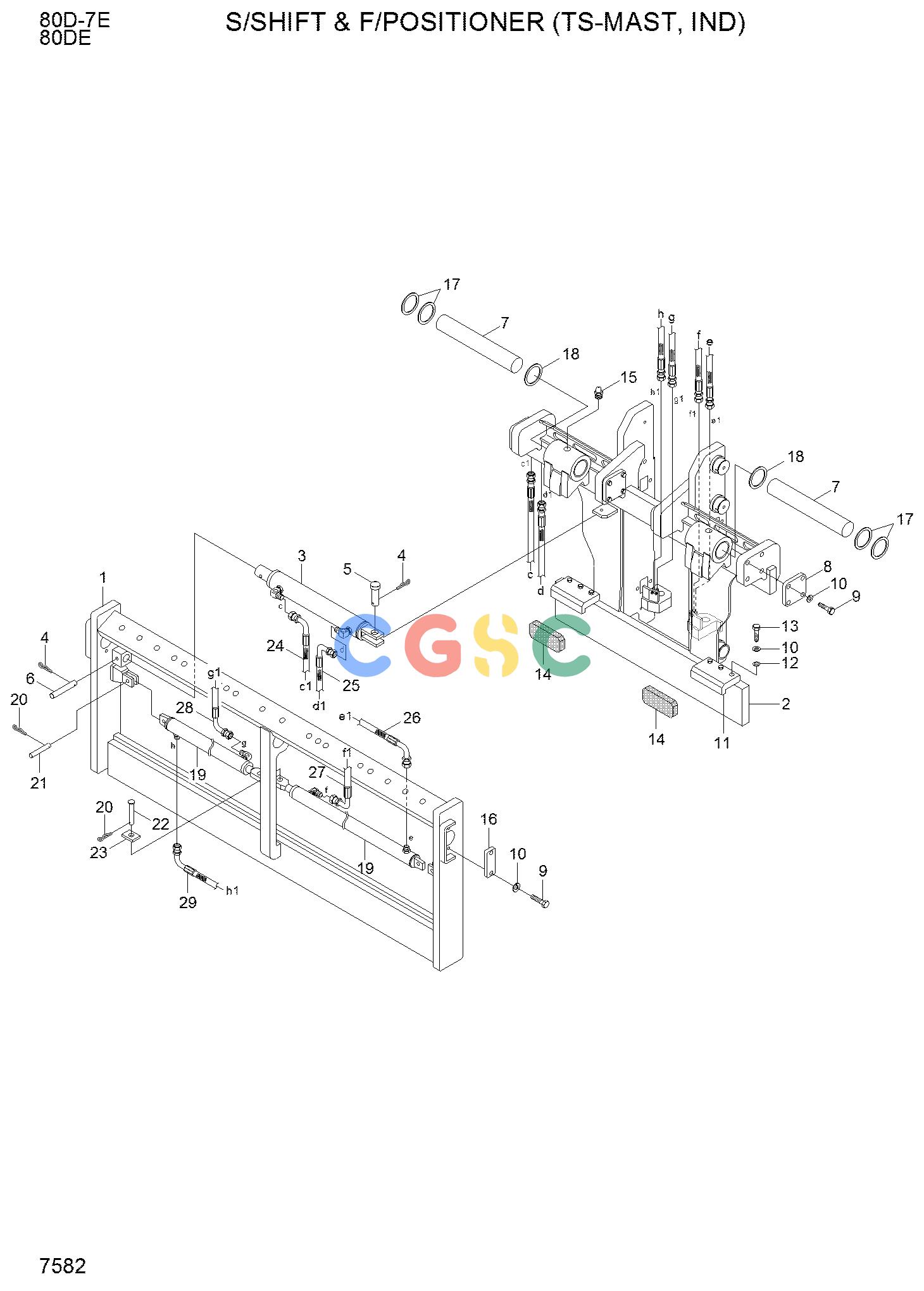

现代零件查询80D-7E ACE(#0508-) S/SHIFT & F/POSITIONER (TS-MAST, IND)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
69FQ-39120
|
[1] |
INT S-SHIFT & F-POSITION
|
|
| N1. |
69FQ-29200
|
[1] |
CARRIAGE WA
|
|
| N2. |
69FQ-29300
|
[1] |
SIDE SHIFT WA
|
|
| 3. |
ISS5-001-Z00
|
[1] |
CYLINDER-SIDE SHIFT
|
|
| 4. |
JKRP-0020
|
[2] |
R-PIN
|
|
| 5. |
JKSS-D4-0301P
|
[1] |
PIN-CYLINDER BASE
|
|
| 6. |
JKSS-D4-0302P
|
[1] |
PIN-CYLINDER ROD
|
|
| 7. |
ISS5-001-A03
|
[2] |
BAR-SHIFTING
|
|
| 8. |
ISS5-001-A04
|
[4] |
COVER-SHIFT
|
|
| 9. |
JKHB-H-1660
|
[20] |
BOLT-HEX
|
|
| 10. |
JKSW-H-0016
|
[26] |
WASHER-SPRING
|
|
| 11. |
ISS5-001-A05
|
[2] |
HOOK
|
|
| 12. |
ISS5-001-A06
|
[4] |
SPACER
|
|
| 13. |
JKHB-H-1670
|
[6] |
BOLT-HEX
|
|
| 14. |
ISS5-001-A07
|
[2] |
SLIDING PAD
|
|
| 15. |
JKGN-00T1
|
[2] |
GREASE NIPPLE
|
|
| 16. |
ISS5-001-A08
|
[2] |
COVER-FORK BAR
|
|
| 17. |
JK0B-759080
|
[4] |
BEARING-OILLES
|
|
| 18. |
JKSR-H-0090
|
[2] |
STOP RING
|
|
| 19. |
ISS5-027-Z00
|
[2] |
CYLINDER-F/POSITIONER
|
|
| 20. |
66FQ-00430
|
[4] |
R-PIN
|
|
| 21. |
66FQ-00420
|
[2] |
PIN BASE
|
|
| 22. |
66FQ-00440
|
[2] |
PIN ROD
|
|
| 23. |
68FQ-70210
|
[2] |
BRACKET-CYLINDER ROD
|
|
| 24. |
P933-064025
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 25. |
P933-064007
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 26. |
P933-064019
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 27. |
P933-064006
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 28. |
P933-064008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 29. |
P933-064020
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
