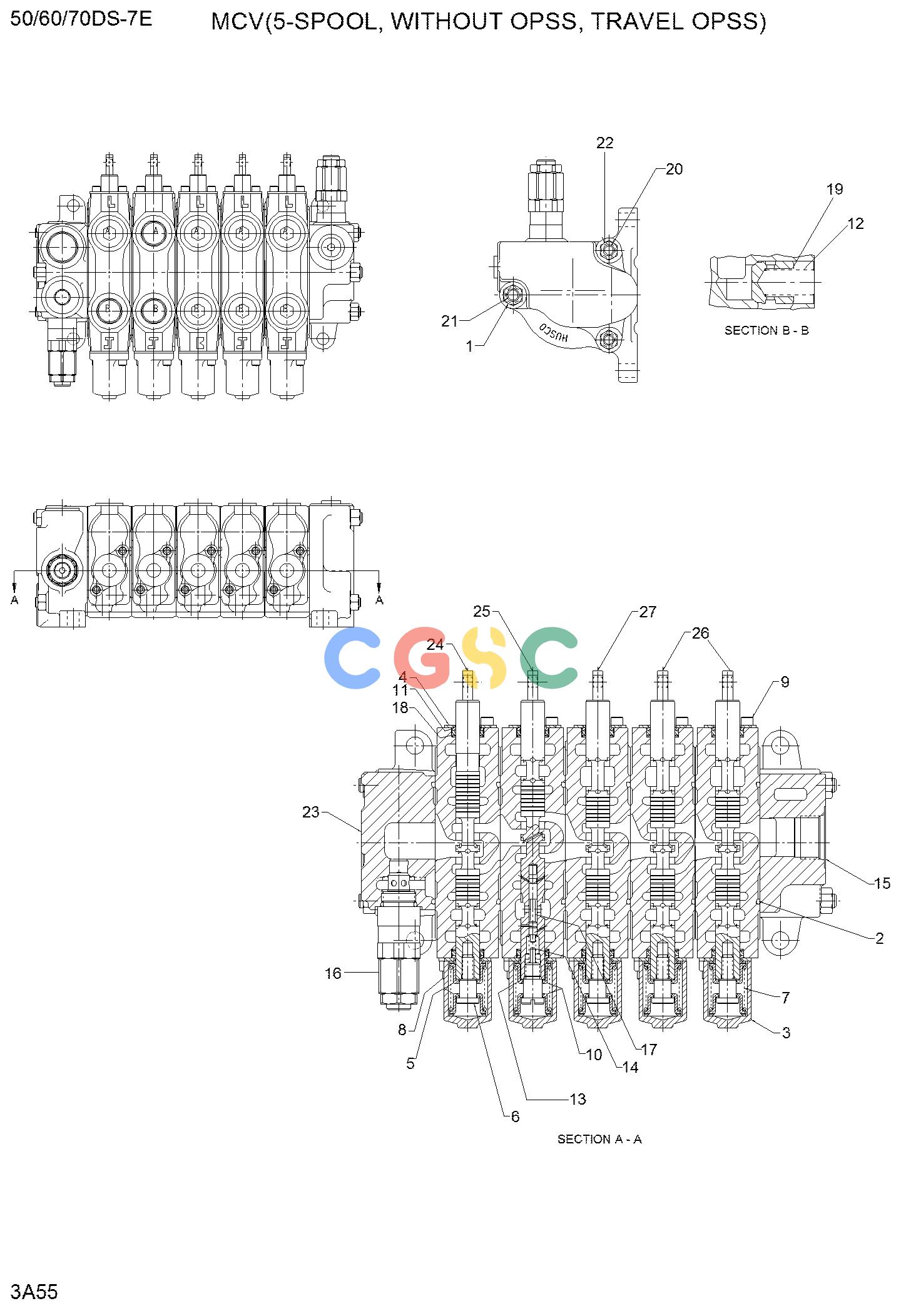

现代零件查询80D-7E ACE(#0508-) LIFT SECTION KITEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -1. |
XKAU-00469
|
[1] |
LIFT SECTION KIT
|
|
| 6. |
XKAU-00439
|
[1] |
JL BLOCK
|
|
| 7. |
XKAU-00440
|
[1] |
SPOOL-LIFT
|
|
| 8. |
XKAU-00441
|
[1] |
CAP
|
|
| K9. |
XKAU-00442
|
[2] |
O-RING
|
|
| 10. |
XKAU-00443
|
[1] |
LOCK BOLT
|
|
| 11. |
XKAU-00444
|
[2] |
GUIDE
|
|
| 12. |
XKAU-00445
|
[1] |
SPRING
|
|
| 13. |
XKAU-00446
|
[1] |
BUSH
|
|
| K14. |
XKAU-00447
|
[1] |
O-RING
|
|
| 15. |
XKAU-00448
|
[1] |
CAP-SPRING
|
|
| 16. |
XKAU-00449
|
[1] |
POPPET INLET
|
|
| 17. |
XKAU-00450
|
[1] |
SPRING
|
|
| 18. |
XKAU-00451
|
[1] |
PLUG
|
|
| K19. |
XKAU-00234
|
[1] |
O-RING
|
|
| K20. |
XKAU-00452
|
[1] |
O-RING
|
|
| 21. |
XKAU-00453
|
[2] |
BOLT
|
|
| 22. |
XKAU-00454
|
[2] |
BOLT
|
|
| 23. |
XKAU-00455
|
[1] |
PLUG
|
|
| K24. |
XKAU-00097
|
[1] |
O-RING
|
|
| K. |
XKAU-00472
|
[1] |
LIFT SECTION SEAL KIT
|
|
