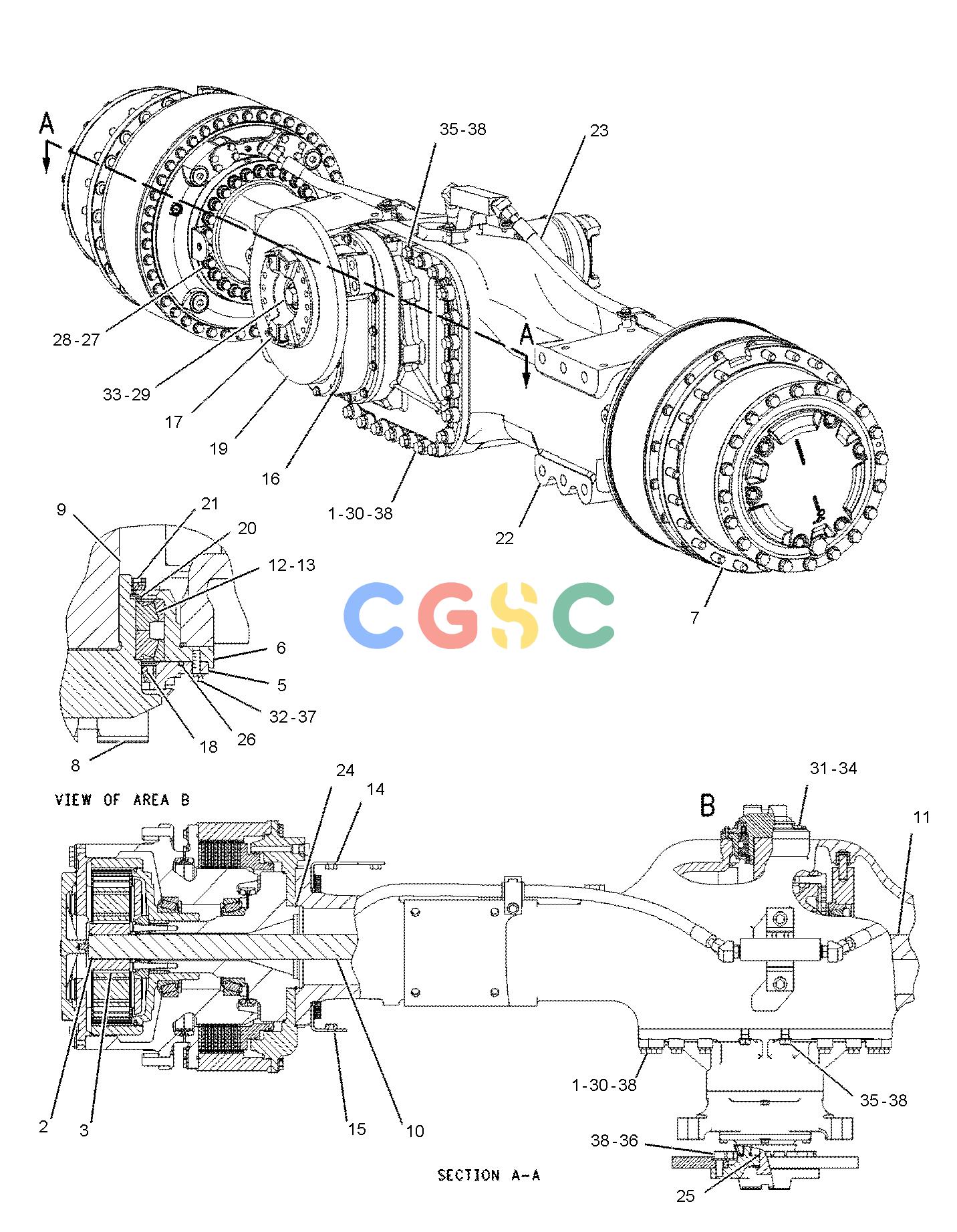

卡特零件查询（735） 217-5645: AXLE & FRAME AR
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y | [1] | AXLE AR-CENTER |
| | Y | [1] | AXLE AR-REAR |
| | 213-3850Y | [1] | CONTROL GP-PARKING BRAKE(TRAILER) | |
| | 217-0513Y | [1] | FRAME AR-REAR | |
| | 141-6857Y | [1] | HITCH GP-OSCILLATING | |
| | 213-3855Y | [1] | LINES GP-AXLE OIL COOLER | |
| | 213-3853Y | [1] | LINES GP-DIFFERENTIAL LOCK | |
| | 213-3851Y | [1] | LINES GP-GREASE | |
| | 213-3852Y | [1] | LINES GP-SERVICE BRAKE | |
| | 217-2832Y | [1] | SHAFT GP-DRIVE(REAR) | |
| | 152-7027Y | [1] | SHAFT GP-HITCH DRIVE | |
| | 235-2749Y | [1] | WIRING GP-REAR | |
| | Y | | SEPARATE ILLUSTRATION |
