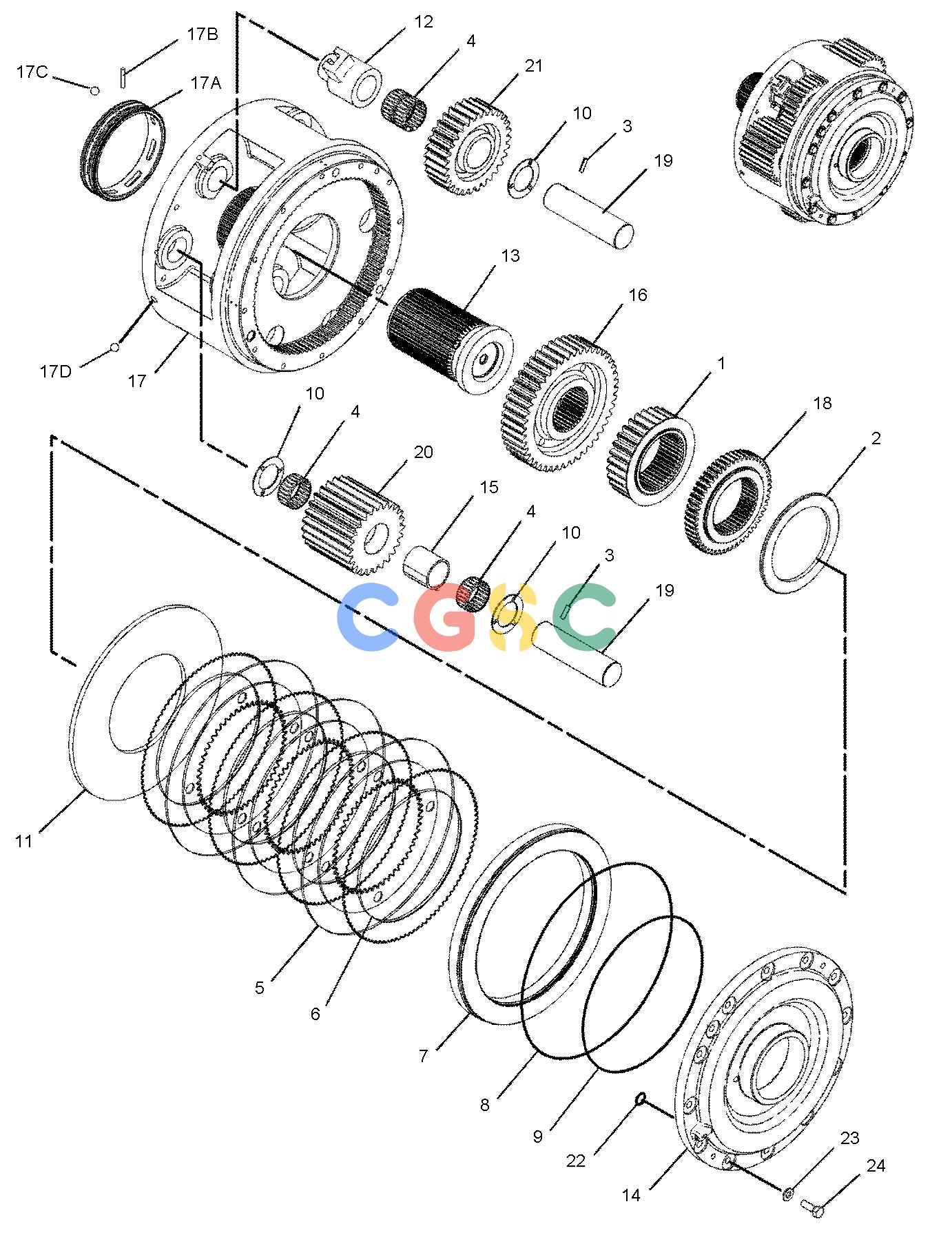

卡特零件查询（735） 148-9450: PLANETARY GP-TRANSFER GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
433 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-9442 | [1] | GEAR AS(30-TEETH) | |
| 2. | 2K-0715 | [1] | WASHER-THRUST(5.03X6.71X0.250-IN THK) | |
| 3. | 3S-2708 | [6] | PIN-SPRING | |
| 4. | 5M-0578 | [12] | BEARING AS-ROLLER | |
| 5. | 6Y-7958 | [3] | DISC-FRICTION | |
| 6. | 8D-3879 | [4] | DISC | |
| 7. | 8D-3937 | [1] | PISTON | |
| 8. | 8D-3971 | [1] | SEAL-RING(EXTERNAL) | |
| 9. | 8D-3972 | [1] | SEAL-RING(INTERNAL) | |
| 10. | 8E-8308 | [9] | DISC-THRUST | |
| 11. | 148-9403 | [1] | SPACER(150X293X7.5-MM THK) | |
| 12. | 261-0313 | [3] | SPACER | |
| 13. | 148-9425 | [1] | SHAFT | |
| 14. | 148-9426 | [1] | HOUSING AS | |
| | 2D-6642 | [2] | BALL | |
| 15. | 261-0314 | [3] | SPACER | |
| 16. | 148-9439 | [1] | GEAR AS(45-TEETH) | |
| 17. | 148-9441 | [1] | CARRIER AS | |
| 17A. | 6P-7564 | [1] | CARRIER-RING | |
| 17B. | 2H-2255 | [1] | DOWEL | |
| 17C. | 4B-9782 | [1] | BALL | |
| 17D. | 4B-9784 | [1] | BALL | |
| 18. | 299-4250 | [1] | HUB | |
| 19. | 148-9445 | [6] | SHAFT | |
| 20. | 148-9446 | [3] | GEAR-PLANETARY(25-TEETH) | |
| 21. | 148-9447 | [3] | GEAR-PLANETARY(30-TEETH) | |
| 22. | 8L-2746 | [1] | SEAL-O-RING | |
| 23. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4195M | [13] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
