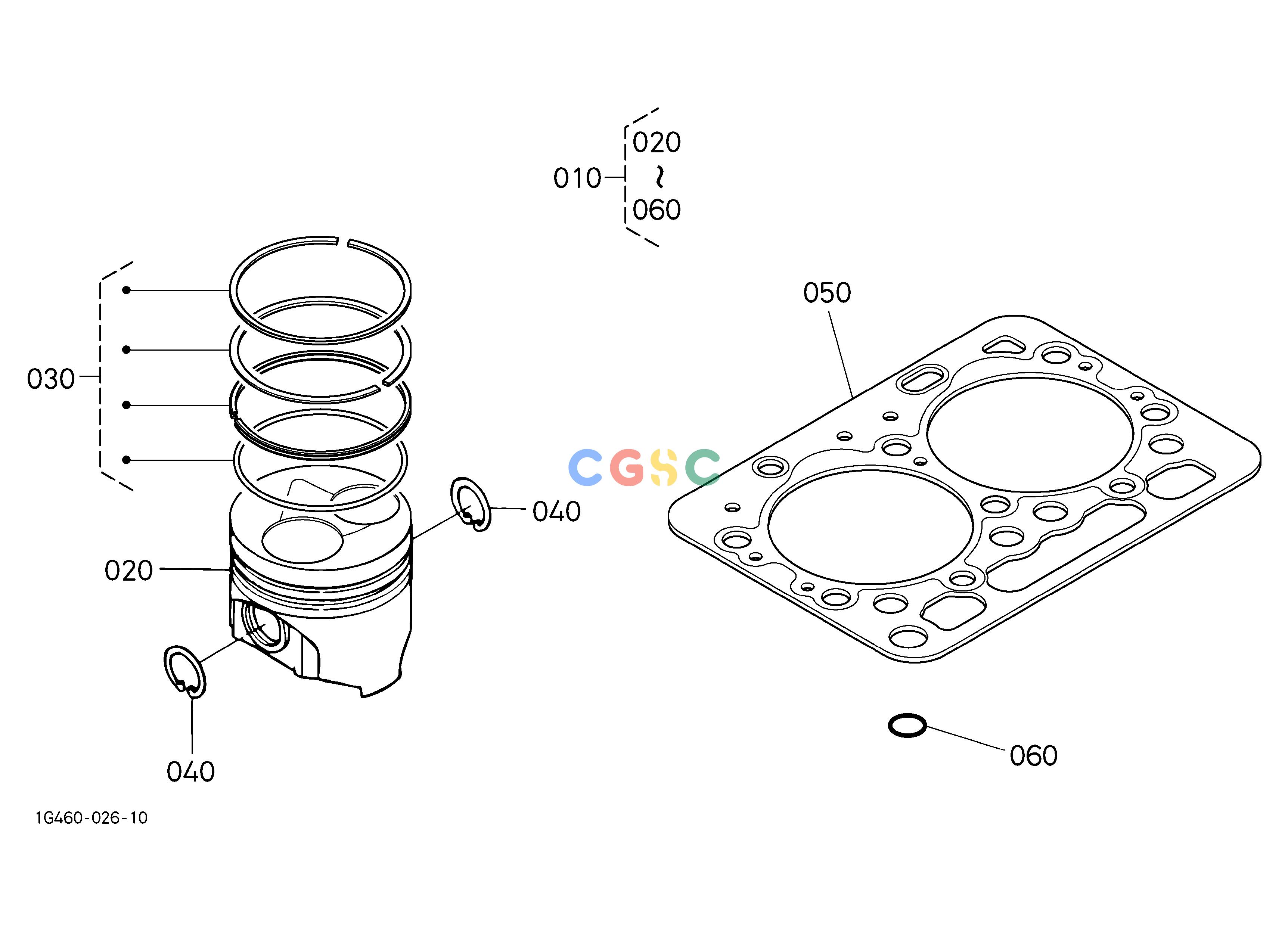

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G46021000
|
[1] |
KIT PISTON
|
1.8920(lbs); 0.860
|
| 010. |
1G46021002
|
[1] |
KIT PISTON
|
1.8920(lbs); 0.860
|
| 020. |
1G46021110
|
[2] |
PISTON
|
0.5500(lbs); 0.250
|
| 020. |
1G96221112
|
[2] |
PISTON
|
0.5940(lbs); 0.270
|
| 030. |
1G46021050
|
[2] |
ASSY PISTON RING
|
0.0814(lbs); 0.037
|
| 040. |
1526121330
|
[4] |
CIR CLIP PISTON PIN
|
0.0022(lbs); 0.001
|
| 050. |
1G46003310
|
[1] |
GASKET CYLINDER HEAD
|
0.0902(lbs); 0.041
|
| 060. |
1522133700
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
