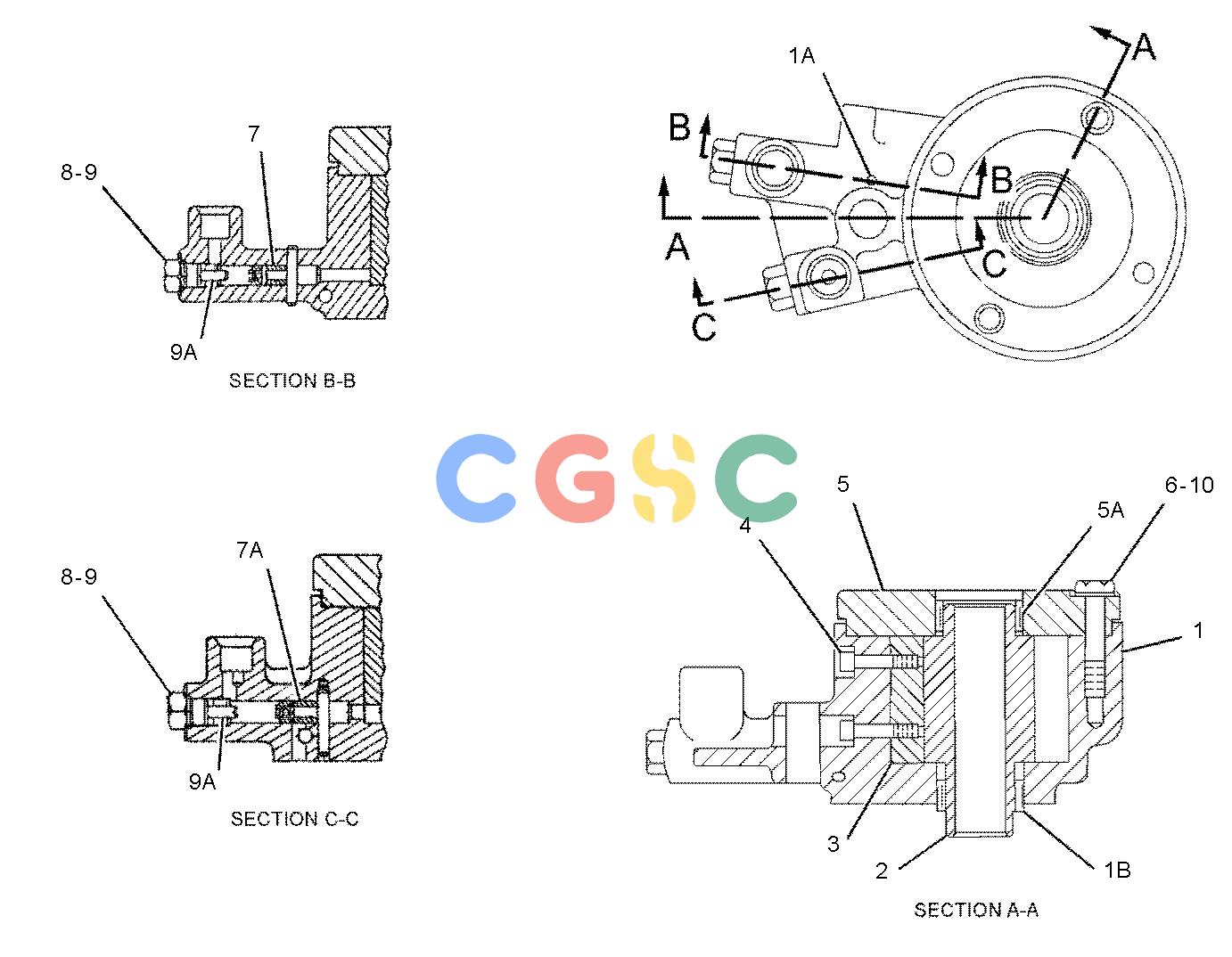

卡特零件查询（735） 9W-4119: ACTUATOR GP-ROTARY
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8E-8440C | [1] | BODY AS-ACTUATOR | |
| 1A. | 8E-8439 | [2] | DOWEL | |
| 1B. | 5P-9400 | [1] | BEARING-ROLLER | |
| 2. | 9W-4118 | [1] | ROTOR AS-ACTUATOR | |
| | 5P-7590 | [5] | BOLT-SOCKET HEAD(6-32X0.75) | |
| 3. | 9G-9440 | [1] | VANE-ACTUATOR | |
| 4. | 5D-4697 | [2] | BOLT-12 POINT HEAD(1/4-20X1-IN) | |
| 5. | 9W-4116 | [1] | COVER AS | |
| 5A. | 5P-9400 | [1] | BEARING-ROLLER | |
| 6. | 1B-9575 | [2] | BOLT(5/16-18X1.56-IN) | |
| 7. | 9W-6964 | [1] | VALVE AS-EXHAUST(UPSHIFT PRESSURE SIGNAL) | |
| 7A. | 9W-6964 | [1] | VALVE AS-EXHAUST(DOWNSHIFT PRESSURE SIGNAL) | |
| | | | (EACH VALVE AS INCLUDES) |
| | 8N-4173 | [1] | DOWEL | |
| | 3E-4354 | [1] | BALL | |
| 8. | 1J-9671 | [2] | SEAL-O-RING | |
| 9. | 9S-6155C | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-8460 | [1] | PLUG(1/2-20-THD) | |
| 9A. | 4H-8380 | [1] | PIN-SPRING | |
| 10. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
