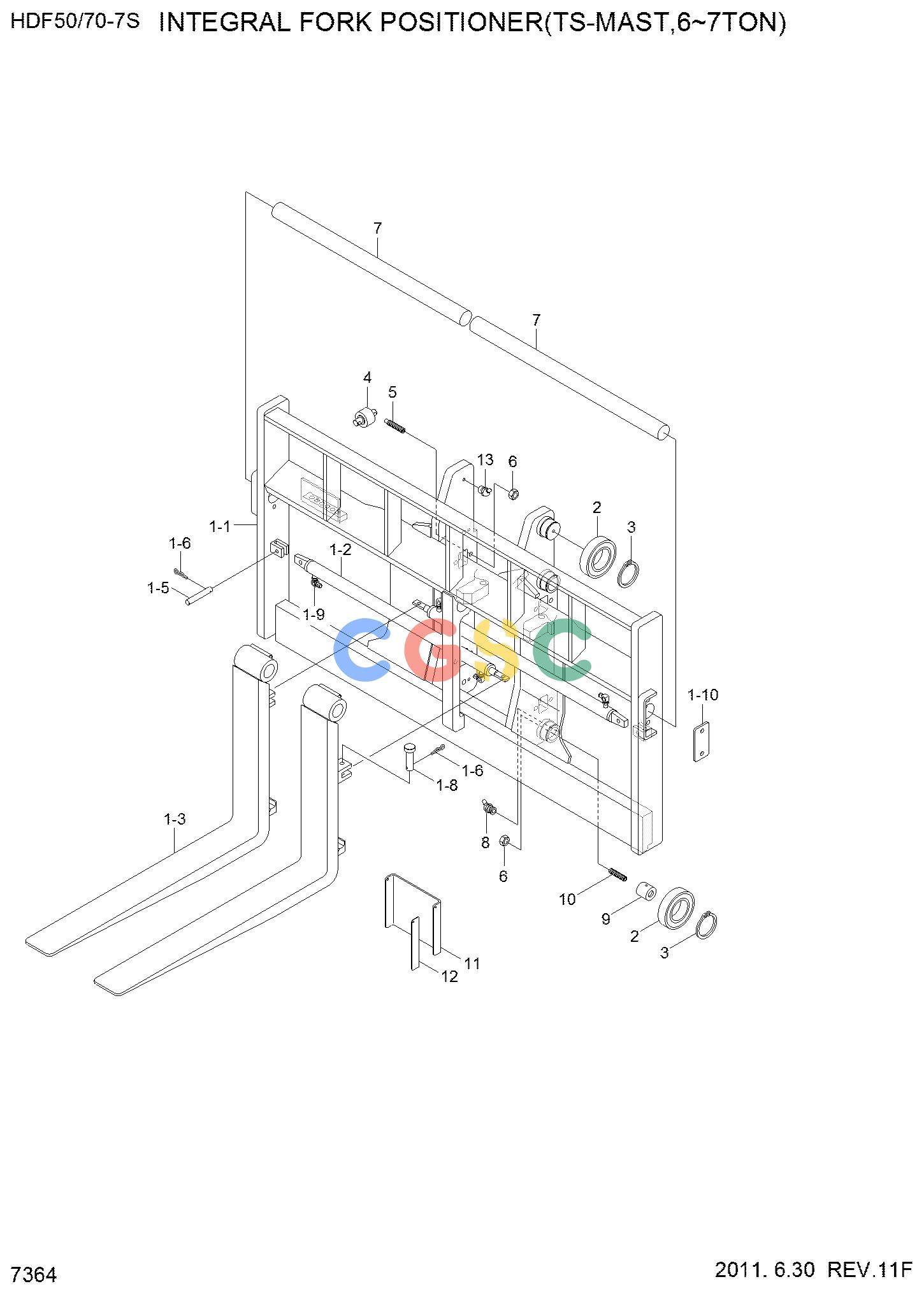

现代零件查询HDF50/70-7 INTEGRAL FORK POSITIONER(TS-MAST,6~7TON)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
68FQ-26210
|
[1] |
FORK POSITIONER ASSY
|
|
| 1. |
68FQ-26220
|
[1] |
FORK POSITIONER ASSY
|
|
| 1-1. |
68FQ-26300
|
[1] |
CARRIAGE W.A
|
|
| 1-1. |
68FQ-26310
|
[1] |
CARRIAGE W.A
|
|
| 1-2. |
66FQ-10300
|
[2] |
CYLINDER
|
|
| 1-2. |
66FQ-10310
|
[2] |
CYLINDER
|
|
| 1-3. |
66FQ-00400
|
[2] |
SLIDING PLATE-FORK
|
|
| 1-4. |
66FQ-00410
|
[2] |
BRACKET CYLINDER BASE
|
|
| 1-5. |
66FQ-00420
|
[2] |
PIN BASE
|
|
| 1-6. |
66FQ-00430
|
[4] |
R-PIN
|
|
| 1-7. |
68FQ-70210
|
[2] |
BRACKET-CYLINDER ROD
|
|
| 1-8. |
66FQ-00440
|
[2] |
PIN ROD
|
|
| 1-9. |
66FQ-00450
|
[4] |
FITTING
|
|
| 1-10. |
61FQ-25110
|
[2] |
COVER
|
|
| 2. |
61FF-18600
|
[6] |
LOAD R/BRG ASSY(164.5)
|
|
| 2. |
61FF-18610
|
[6] |
LOAD R/BRG ASSY(164.0)
|
|
| 2. |
61FF-18620
|
[6] |
LOAD R/BRG ASSY(165.0)
|
|
| 3. |
S601-075004
|
[6] |
RING-RETAINING
|
|
| 4. |
63FF-18301
|
[4] |
SIDE ROLLER ASSY
|
|
| 5. |
61FF-18810-DAC
|
[8] |
ADJUSTABLE SCREW
|
|
| 6. |
S205-20100B
|
[12] |
NUT-HEX
|
|
| 7. |
61FF-18011
|
[2] |
HANGER BAR-FORK
|
|
| 7. |
61FQ-18121
|
[2] |
HANGER BAR-FORK
|
|
| 8. |
S652-810008
|
[4] |
NIPPLE-GREASE
|
|
| 9. |
63FQ-18100
|
[4] |
PLUG-WEAR
|
|
| 10. |
63FF-18220
|
[4] |
SCREW-SET
|
|
| 11. |
61FQ-25320
|
[2] |
SPACER
|
|
| 12. |
61FQ-25350
|
[2] |
SHIM
|
|
| 13. |
S651-810008
|
[2] |
NIPPLE-GREASE
|
|
