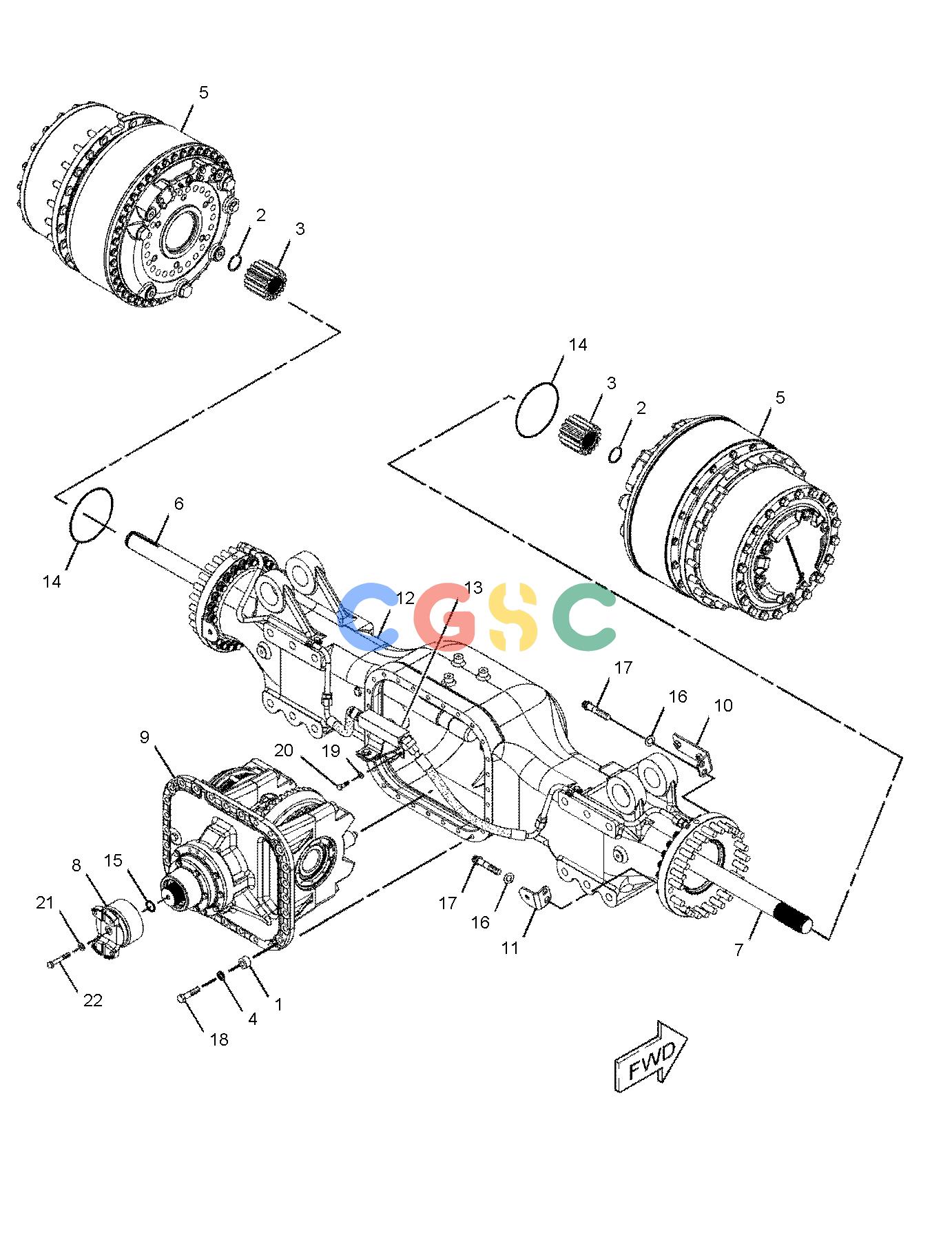

卡特零件查询（735） 237-4738: AXLE GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8G-5258 | [28] | SPACER(17X35X20-MM THK) | |
| 2. | 8K-6464 | [2] | RING-RETAINING | |
| 3. | 102-2453 | [2] | GEAR-SUN(16-TEETH) | |
| 4. | 9X-8257 | [28] | WASHER(17.5X30X3.5-MM THK) | |
| 5. | 217-6290Y | [2] | WHEEL GP-FINAL DRIVE & BRAKE | |
| 6. | 139-2159 | [1] | SHAFT | |
| 7. | 139-2161 | [1] | SHAFT | |
| 8. | 308-6000 | [1] | YOKE AS | |
| 9. | 148-7200Y | [1] | DIFFERENTIAL & BEVEL GEAR GP(AXLE, FRONT) | |
| 10. | 151-6899 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 11. | 151-6901 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 12. | 219-8561 | [1] | HOUSING AS-AXLE | |
| | 160-6213 | [2] | BUSHING | |
| | 165-4929 | [1] | PLUG AS-MAGNETIC | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 5P-4484 | [1] | PLUG-MAGNETIC(AXLE HOUSING) | |
| | 197-4977 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 5P-4483 | [1] | PLUG | |
| 13. | 226-7365Y | [1] | LINES GP-SERVICE BRAKE(AXLE, FRONT) | |
| 14. | 2K-2939 | [2] | SEAL-O-RING | |
| 15. | 4F-7391 | [1] | SEAL-O-RING | |
| 16. | 6V-2360 | [52] | WASHER-HARD(20X32X3-MM THK) | |
| 17. | 6V-2881 | [52] | BOLT(3/4-10X3.5-IN) | |
| 18. | 7X-2554M | [28] | BOLT(M16X2X70-MM) | |
| 19. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 21. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
