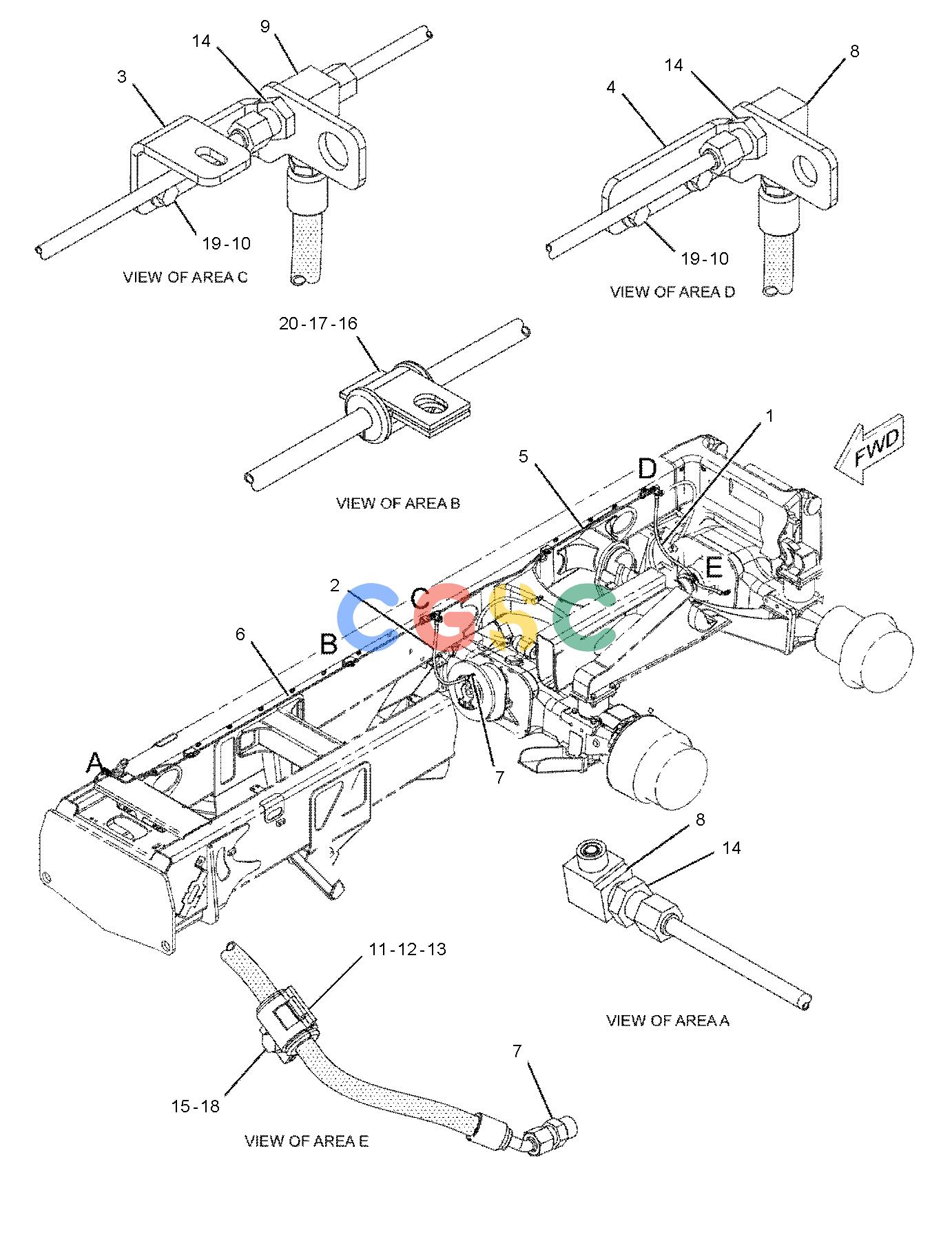

卡特零件查询（735） 213-3853: LINES GP-DIFFERENTIAL LOCK
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 115-7817I | [1] | HOSE AS | |
| 2. | 163-8452I | [1] | HOSE AS | |
| 3. | 190-6291 | [1] | BRACKET | |
| 4. | 206-9434 | [1] | BRACKET | |
| 5. | 214-5027 | [1] | TUBE AS | |
| 6. | 214-5028 | [1] | TUBE AS | |
| 7. | 148-8318 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 8. | 148-8377 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 9. | 153-6246 | [1] | TEE AS | |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 10. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 11. | 5P-7462 | [1] | CLIP(SLOT) | |
| 12. | 5P-7463 | [1] | CLIP(TAB) | |
| 13. | 6V-0683 | [1] | GROMMET | |
| 14. | 6V-9168 | [3] | NUT(11/16-16-THD) | |
| 15. | 7X-0507 | [2] | WASHER-HARD(12X22.5X5-MM THK) | |
| 16. | 8T-1887 | [3] | CLIP(SLOT) | |
| 17. | 8T-1888 | [3] | CLIP(TAB) | |
| 18. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 19. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 20. | 8W-8909 | [3] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
