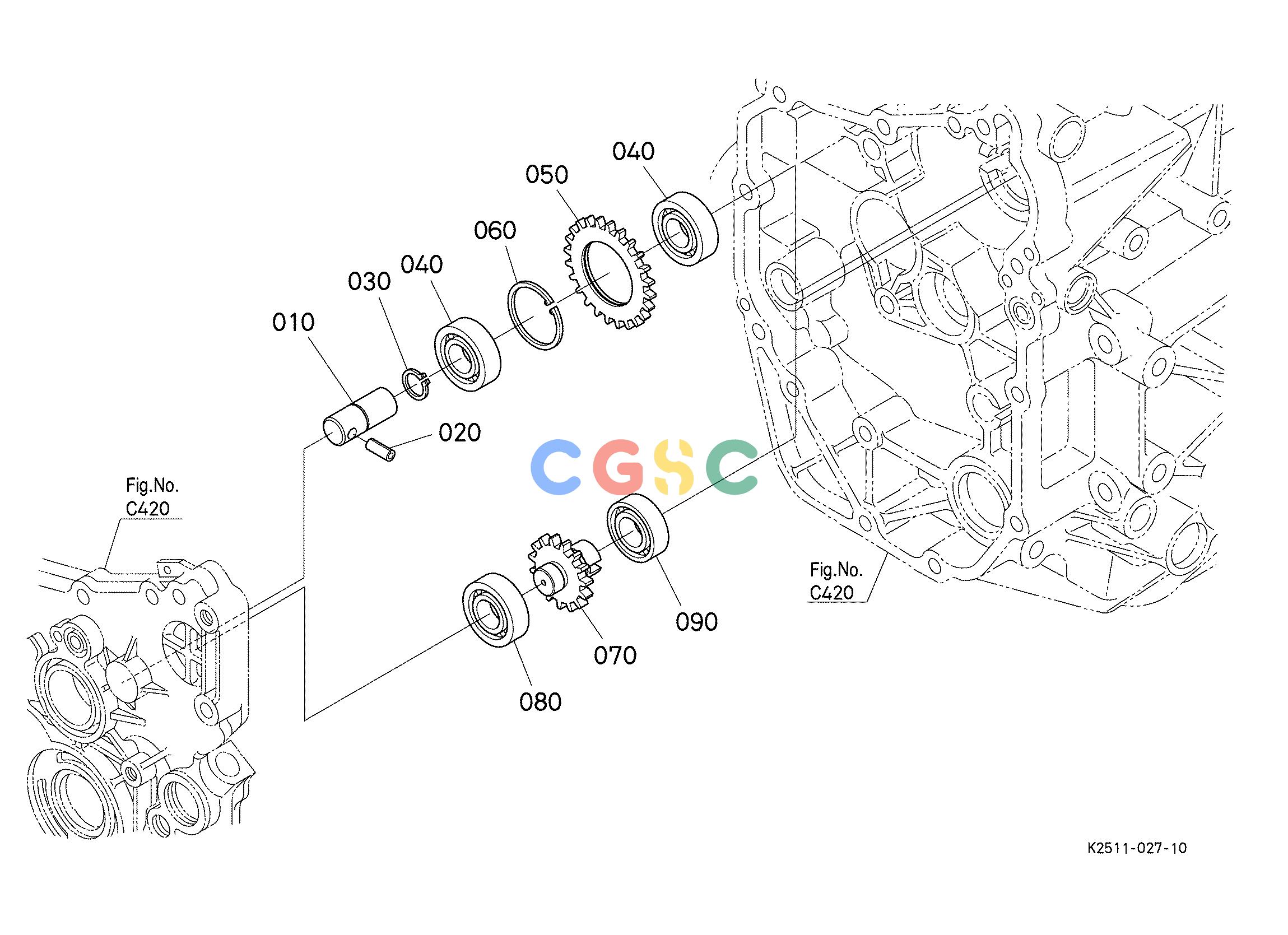

久保田零件查询D14200 GP IDLE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256112210
|
[1] |
SHAFT GP IDLE
|
0.0022(lbs); 0.001
|
| 020. |
0541100616
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 030. |
0461200170
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 040. |
0810106203
|
[2] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 050. |
K256112220
|
[1] |
GEAR GP IDLE
|
0.2640(lbs); 0.120
|
| 060. |
0461100400
|
[1] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 070. |
K256112310
|
[1] |
GEAR SHAFT GP
|
0.3300(lbs); 0.150
|
| 080. |
0810106203
|
[1] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 090. |
0810106004
|
[1] |
BEARING BALL
|
0.1430(lbs); 0.065
|
