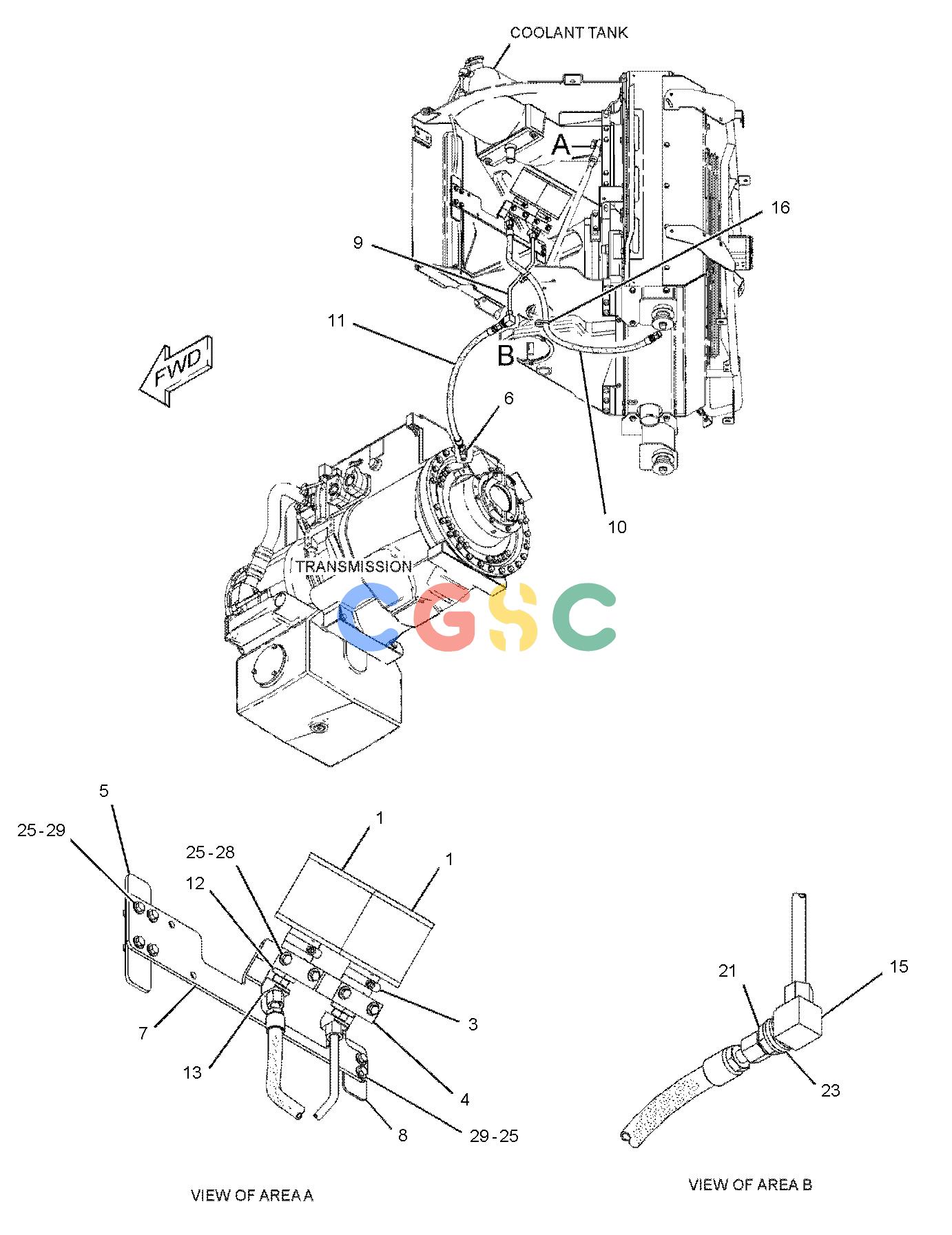

卡特零件查询（735） 197-7200: BREATHER GP-POWER TRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8X-4575 | [2] | FILTER AS-BREATHER(POWER TRAIN) | |
| 3. | 9M-2904 | [2] | CLAMP-HOSE | |
| 4. | 105-0381 | [2] | BLOCK | |
| 5. | 178-8977 | [1] | PLATE AS | |
| 6. | 208-1628 | [1] | ELBOW AS | |
| | 2T-1922 | [1] | ELBOW | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 7. | 212-5826 | [1] | BRACKET AS | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 8. | 212-5828 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 9. | 212-5830 | [1] | TUBE AS | |
| 10. | 150-9045CI | [1] | HOSE AS | |
| 11. | 212-5832I | [1] | HOSE AS | |
| 12. | 148-8306 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 5P-5777 | [1] | ADAPTER-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 13. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 15. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 16. | 6U-0455 | [2] | STRAP | |
| 21. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 23. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 25. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 28. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 29. | 8T-7547M | [6] | BOLT(M8X1.25X30-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
