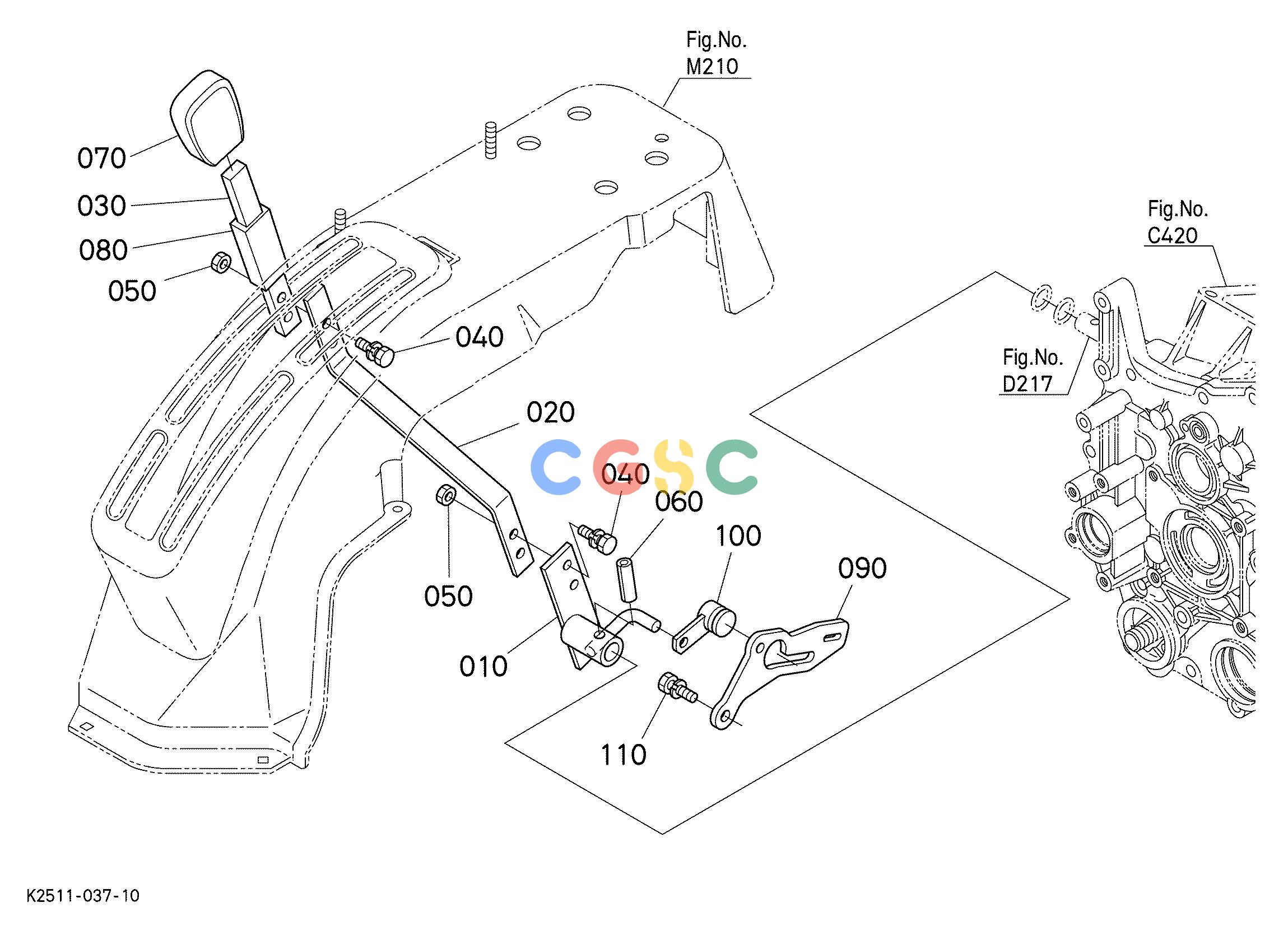

久保田零件查询F11001 RANGE GEAR SHIFT LEVER ## S.No.<=54723 SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256142970
|
[1] |
LEVER SUB SELECT
|
0.8580(lbs); 0.390
|
| 020. |
K256142920
|
[1] |
LEVER SUB MID
|
0.3344(lbs); 0.152
|
| 030. |
K256142930
|
[1] |
LEVER SUB UPPER
|
0.5280(lbs); 0.240
|
| 040. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0541100836
|
[1] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 070. |
K256142740
|
[1] |
GRIP LEVER SUB
|
0.0748(lbs); 0.034
|
| 080. |
K256142630
|
[1] |
CUSHION
|
0.0286(lbs); 0.013
|
| 090. |
K256142720
|
[1] |
STAY SWITCH NEUTRAL
|
0.4620(lbs); 0.210
|
| 100. |
K256142730
|
[1] |
ROD SWITCH
|
0.2420(lbs); 0.110
|
| 110. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
