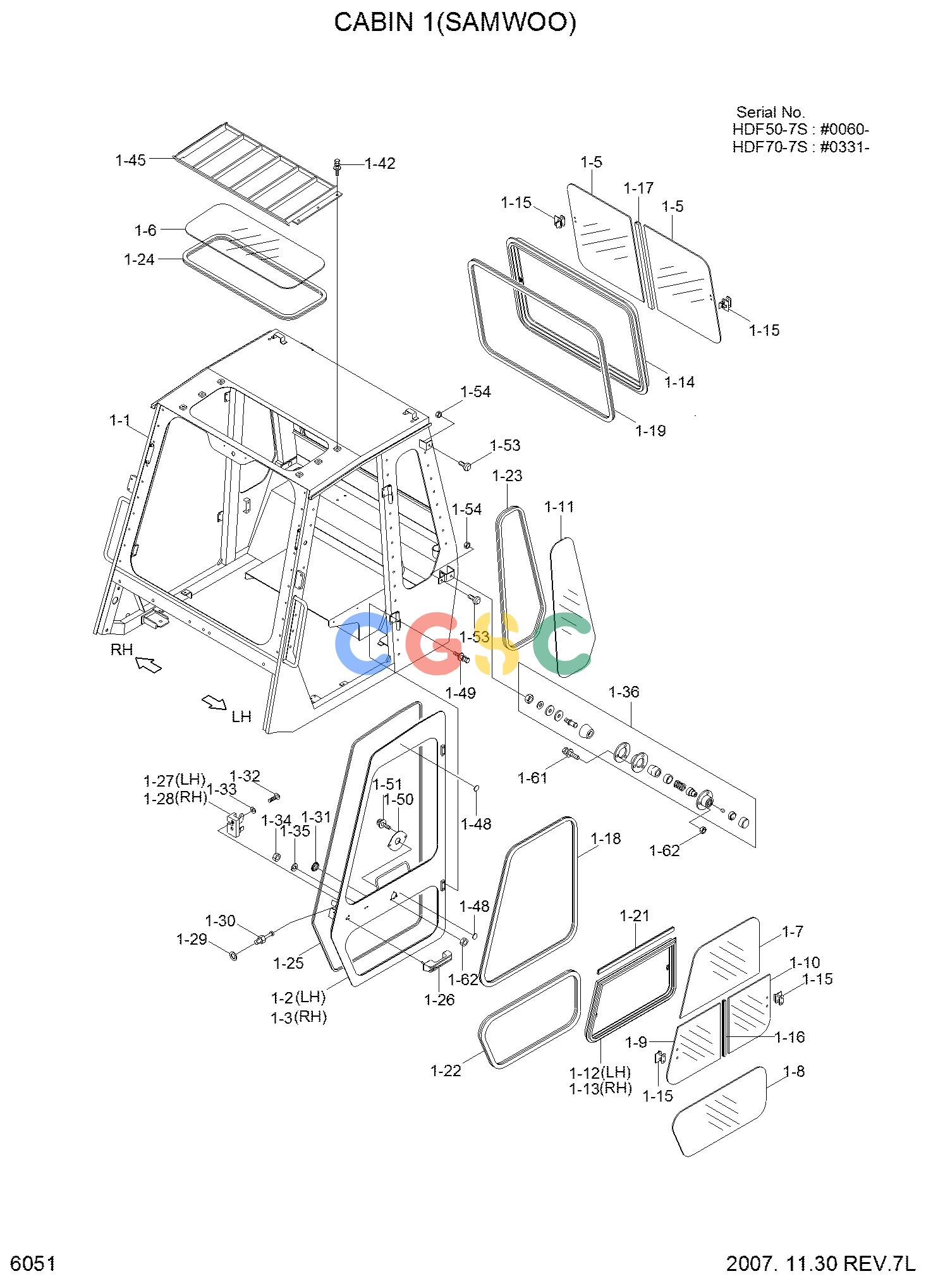

现代零件查询HDF50/70-7 CABIN 1(SAMWOO)EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 441 次

Pos.	Part No	Qty	Parts name	Comments
1.	75FQ-50013	[1]	CABIN ASSY	HDF50-7
1.	75FQ-50013	[1]	CABIN ASSY	HDF70-7
1-1.	75FQ-50022	[1]	CABIN WA
1-2.	75FQ-50670	[1]	DOOR WA-LH
1-3.	75FQ-50680	[1]	DOOR WA-RH
1-5.	75FQ-50690	[2]	GLASS-REAR
1-6.	71FQ-51050	[1]	GLASS-TOP
1-7.	75FQ-50700	[2]	GLASS-DOOR(1)
1-8.	75FQ-50710	[2]	GLASS-DOOR(2)
1-9.	75FQ-50720	[2]	GLASS-DOOR(3)
1-10.	75FQ-50730	[2]	GLASS-DOOR(4)
1-11.	75FQ-50740	[2]	GLASS-DOOR(5)
1-12.	75FQ-50760	[1]	SASH-LH
1-13.	75FQ-50770	[1]	SASH-RH
1-14.	71FQ-51130	[1]	SASH-REAR
1-15.	71N6-02550	[6]	LOCK ASSY
1-16.	75FQ-50870	[2]	SASH-SIDE
1-17.	75FQ-50750	[1]	SASH-REAR
1-18.	S781-126901	[2]	SEAL-SIDE
1-19.	S782-132602	[1]	SEAL-LOCKING
1-21.	S781-105751	[2]	SEAL-SIDE
1-22.	S781-117801	[2]	SEAL-SIDE
1-23.	S781-122001	[2]	SEAL
1-24.	S781-123501	[1]	SEAL-GLASS
1-25.	S771-041420	[2]	WEATHER STRIP
1-26.	71EH-13140	[2]	OUT HANDLE ASSY
1-27.	72FA-12100	[1]	DOOR LATCH,LH
1-28.	72FA-12110	[1]	DOOR LATCH,RH
1-29.	S403-121002	[2]	WASHER-PLAIN
1-30.	71FE-51230	[2]	STRIKER
1-31.	75FQ-50890	[4]	GROMMET
1-32.	S161-080352	[4]	SCREW-CROSS R/ROUND
1-33.	S411-080002	[4]	WASHER-SPRING
1-34.	S201-061002	[8]	NUT-HEX
1-35.	S411-060006	[8]	WASHER-SPRING
1-36.	75D1-05470	[2]	CATCH SET
1-42.	S035-082026	[6]	BOLT-W/WASHER
1-45.	71FQ-51180	[1]	PROTECTOR
1-48.	17E1-5146	[4]	BUMPER-DOOR
1-49.	S035-102026	[8]	BOLT-W/WASHER
1-50.	71FQ-51221	[2]	PLATE
1-51.	S131-061546	[4]	SCREW-W/WASHER
1-53.	71EH-13150	[4]	BUMPER-RUBBER
1-54.	S203-101006	[8]	NUT-HEX
1-61.	S031-051542	[6]	BOLT-W/WASHER
1-62.	S203-051002	[6]	NUT-HEX
2.	75FQ-51310	[1]	GLASS-REAR	HDF50-7
2.	75FQ-51310	[1]	GLASS-REAR	HDF70-7
3.	S781-132601	[1]	SEAL-GLASS	HDF50-7
3.	S781-132601	[1]	SEAL-GLASS	HDF-70-7
