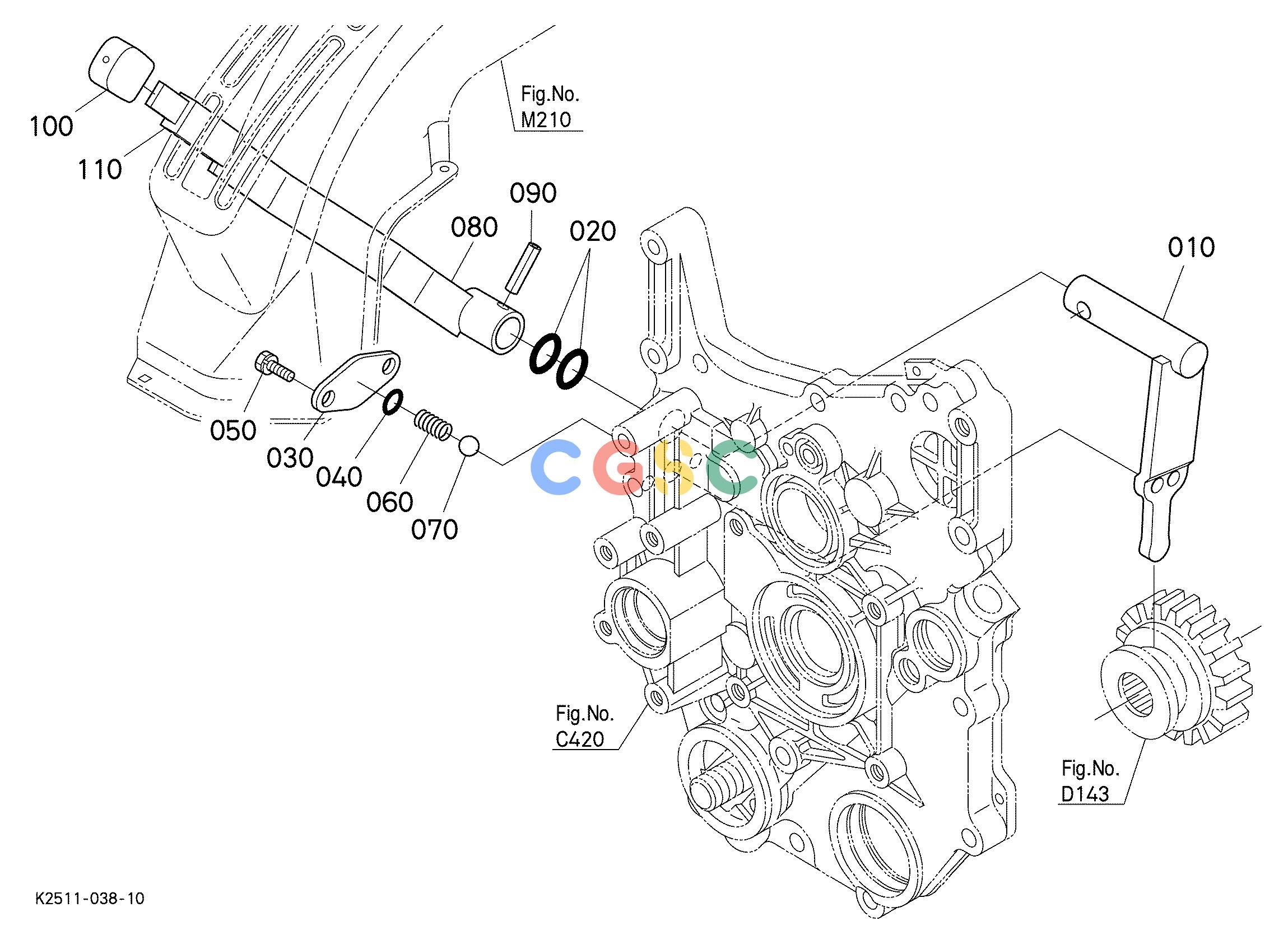

久保田零件查询F11301 FRONT WHEEL DRIVE LEVER ## S.No.<=54723 SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
234 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256113210
|
[1] |
ARM 4WD SHIFT
|
0.4400(lbs); 0.200
|
| 020. |
0481700160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
K256113220
|
[1] |
PLATE FWD SELECT
|
0.0176(lbs); 0.008
|
| 040. |
0481700090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0102350614
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 060. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 070. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 080. |
K256142750
|
[1] |
LEVER 4WD SELECT
|
2.0240(lbs); 0.920
|
| 090. |
0541100836
|
[1] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 100. |
K256142780
|
[1] |
GRIP LEVER 4WD
|
0.0484(lbs); 0.022
|
| 110. |
K256142630
|
[1] |
CUSHION
|
0.0286(lbs); 0.013
|
