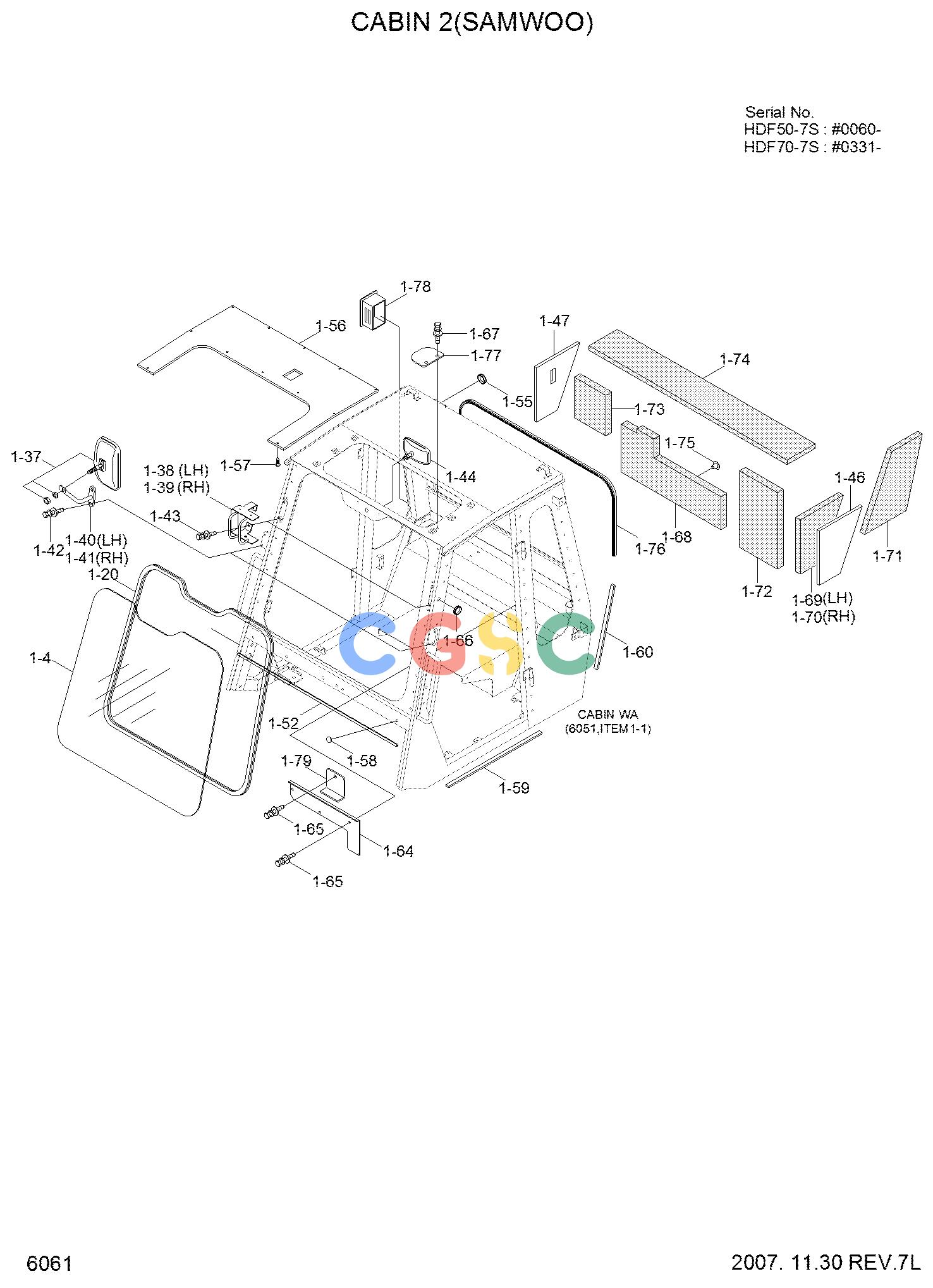

现代零件查询HDF50/70-7 CABIN 2(SAMWOO)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
@
|
[1] |
CABIN ASSY
|
|
| 1. |
@
|
[1] |
CABIN ASSY
|
|
| 1-4. |
71FQ-51031
|
[1] |
GLASS-FRONT
|
|
| 1-20. |
S781-144001
|
[1] |
SEAL-GLASS
|
|
| 1-37. |
71N8-46000
|
[2] |
MIRROR
|
|
| 1-38. |
71FF-30470
|
[1] |
PROTECTOR-LH
|
|
| 1-39. |
71FF-30460
|
[1] |
PROTECTOR-RH
|
|
| 1-40. |
71FF-30091
|
[1] |
STAY-MIRROR,LH
|
|
| 1-41. |
71FF-30101
|
[1] |
STAY-MIRROR,RH
|
|
| 1-42. |
S035-082026
|
[10] |
BOLT-W/WASHER
|
|
| 1-43. |
S035-081526
|
[4] |
BOLT-W/WASHER
|
|
| 1-44. |
71L1-3377
|
[1] |
MIRROR-ROOM
|
|
| 1-46. |
75FQ-50900
|
[1] |
INSULATION FOAM
|
|
| 1-47. |
75FQ-50910
|
[1] |
INSULATION FOAM
|
|
| 1-52. |
S771-014000
|
[1] |
WEATHER STRIP
|
|
| 1-55. |
ED03020000
|
[1] |
GROMMET
|
|
| 1-56. |
75FQ-50880
|
[1] |
ROOF-LINING
|
|
| 1-57. |
71FE-51220
|
[12] |
SCREW
|
|
| 1-58. |
71FQ-51240
|
[6] |
RUBBER CAP
|
|
| 1-59. |
75FQ-50920
|
[2] |
RUBBER
|
|
| 1-60. |
75FQ-50930
|
[2] |
RUBBER
|
|
| 1-64. |
71FQ-10531
|
[1] |
PLATE
|
|
| 1-65. |
S035-081526
|
[9] |
BOLT-W/WASHER
|
|
| 1-66. |
S681-190400
|
[5] |
GROMMET
|
|
| 1-67. |
S035-082026
|
[8] |
BOLT-W/WASHER
|
|
| 1-68. |
77FQ-30300
|
[1] |
SPONGE(1)
|
|
| 1-69. |
77FQ-30310
|
[1] |
SPONGE(3)
|
|
| 1-70. |
77FQ-30330
|
[1] |
SPONGE(4)
|
|
| 1-71. |
77FQ-30340
|
[1] |
SPONGE
|
|
| 1-72. |
77FQ-30350
|
[1] |
SPONGE
|
|
| 1-73. |
77FQ-30360
|
[1] |
SPONGE(7)
|
|
| 1-74. |
71FQ-30380
|
[1] |
SPONGE
|
|
| 1-75. |
71EM-51580
|
[15] |
CAP-STUD BOLT
|
|
| 1-76. |
S771-023000
|
[1] |
WEATHER STRIP
|
|
| 1-77. |
77FQ-10551
|
[1] |
COVER PLATE
|
|
| 1-78. |
71FH-30030
|
[1] |
CAP
|
|
| 1-79. |
77FQ-10560
|
[1] |
COVER-SENSOR
|
|
