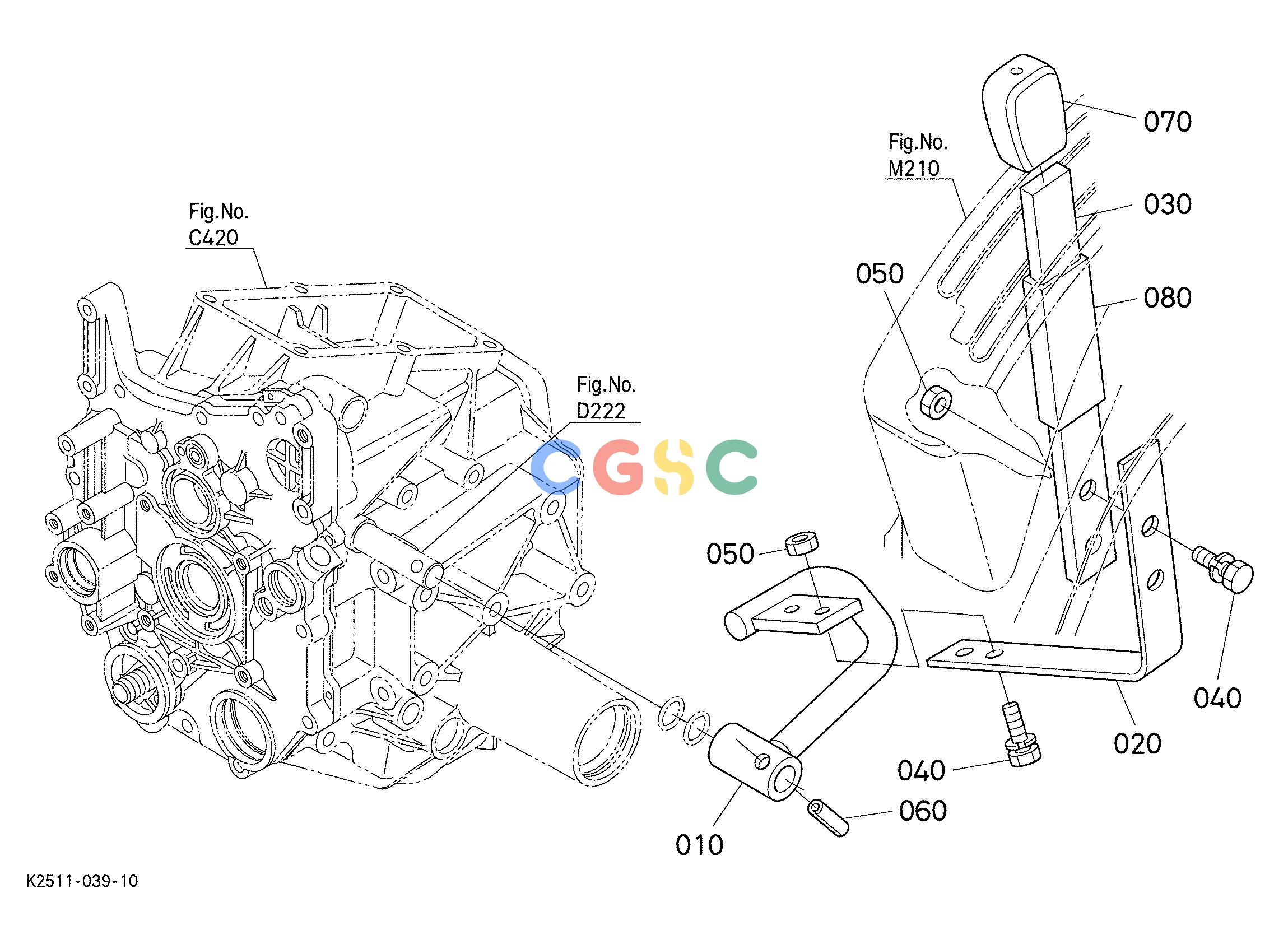

久保田零件查询F12201 PTO SELECT LEVER ## S.No.<=54723 SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256142960
|
[1] |
LEVER PTO SELECT
|
2.1120(lbs); 0.960
|
| 020. |
K256142910
|
[1] |
LEVER PTO SEL.MID
|
0.1716(lbs); 0.078
|
| 030. |
K256142930
|
[1] |
LEVER SUB UPPER
|
0.5280(lbs); 0.240
|
| 040. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0541100836
|
[1] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 070. |
K256142620
|
[1] |
GRIP LEVER PTO
|
0.0770(lbs); 0.035
|
| 080. |
K256142630
|
[1] |
CUSHION
|
0.0286(lbs); 0.013
|
