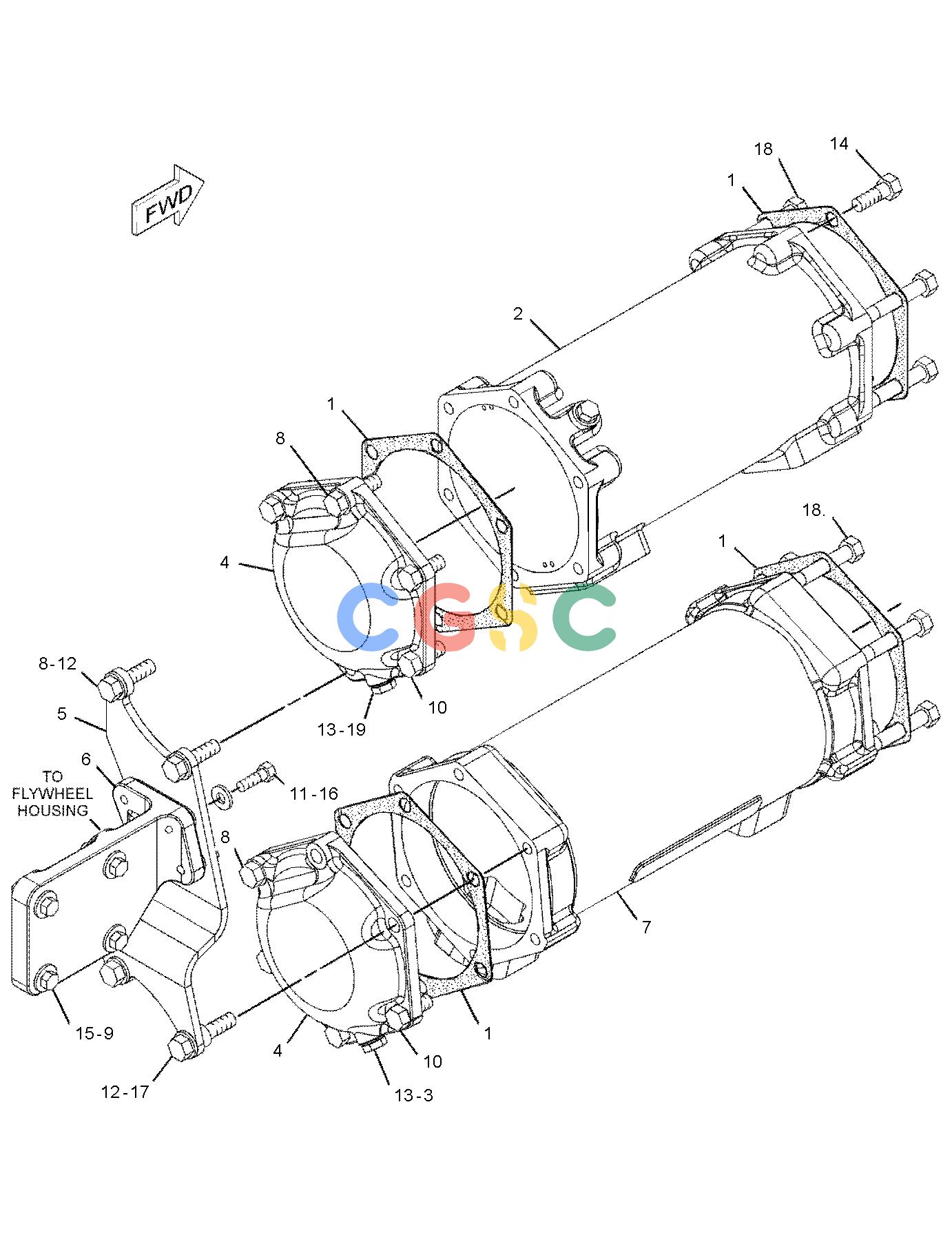

卡特零件查询（735） 242-3109: COOLER GP-BRAKE & TORQUE CONV
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2S-0795 | [4] | GASKET | |
| 2. | 4P-7731Y | [1] | CORE GP-OIL COOLER(BRAKE) | |
| 3. | 8M-9307 | [1] | PLUG(BRAKE OIL COOLER) | |
| 4. | 8S-4304 | [2] | BONNET-XMSN OIL COOLER | |
| 5. | 168-8313 | [1] | SUPPORT AS | |
| 6. | 168-8315 | [1] | SUPPORT | |
| 7. | 241-4280 | [1] | CORE AS(BRAKE OIL COOLER) | |
| | 1N-5999 | [1] | PLUG-O-RING | |
| | 7J-0204 | [1] | SEAL-O-RING | |
| 8. | 0S-1587 | [5] | BOLT(1/2-13X1.75-IN) | |
| 9. | 0S-1591 | [4] | BOLT(3/8-16X1.5-IN) | |
| 10. | 0S-1595 | [5] | BOLT(1/2-13X1.25-IN) | |
| 11. | 1A-2029 | [4] | BOLT(3/8-16X1.125-IN) | |
| 12. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 6F-7062 | [2] | WASHER(12.7X19.05X1.83-MM THK) | |
| 14. | 7B-3235 | [1] | BOLT(1/2-13X1.375-IN) | |
| 15. | 9L-9132 | [4] | WASHER(10.2X25.5X2.5-MM THK) | |
| 16. | 9X-6458 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 17. | 9X-8873 | [2] | BOLT(1/2-13X2.25-IN) | |
| 18. | 9X-8875 | [11] | BOLT(1/2-13X3.5-IN) | |
| 19. | 8M-9307 | [1] | PLUG(BRAKE OIL COOLER) | |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
