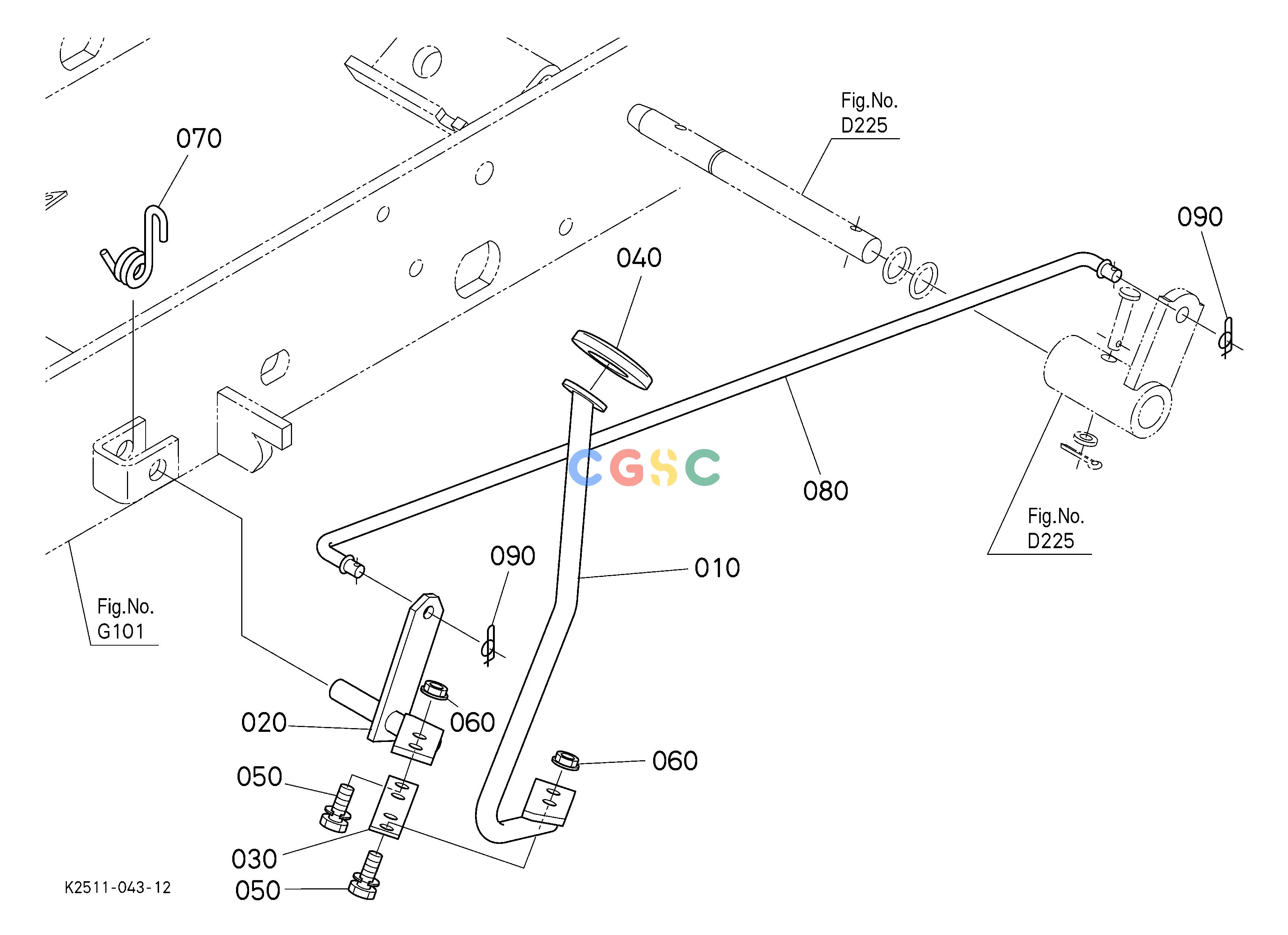

久保田零件查询F20502 DIFFERENTIAL LOCK PEDAL ## S.No.>=52724 REAR AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K257145510
|
[1] |
PEDAL DIFF.LOCK
|
0.4400(lbs); 0.200
|
| 020. |
K257145550
|
[1] |
SHAFT DIFF.LOCK
|
0.5280(lbs); 0.240
|
| 030. |
K257145560
|
[1] |
PLATE DIFF.LOCK
|
0.0880(lbs); 0.040
|
| 040. |
3691962320
|
[1] |
RUBBER PEDAL
|
0.0176(lbs); 0.008
|
| 050. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 060. |
0275150080
|
[4] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 070. |
K256145520
|
[1] |
SPRING DIFF.LOCK PDL
|
0.0880(lbs); 0.040
|
| 080. |
K256145530
|
[1] |
ROD DIFF.LOCK
|
0.5500(lbs); 0.250
|
| 090. |
K121191120
|
[2] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
