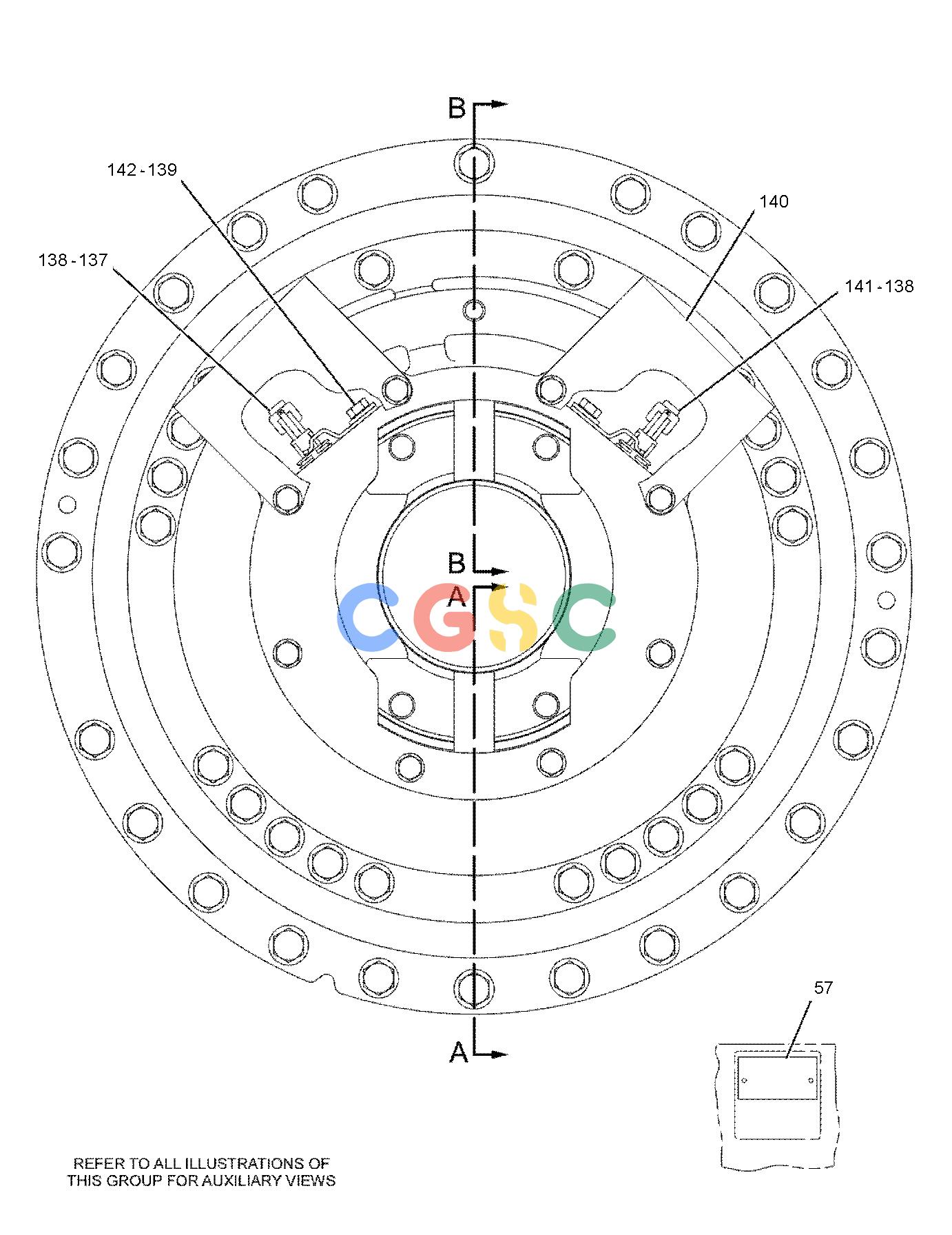

卡特零件查询（735） 146-0192: PLANETARY GP-TRANSMISSION
广数供应链运营团队, 15 02月, 2025，浏览：
391 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 185-8766 | [1] | YOKE AS | |
| | 2V-4458 | [1] | CUP | |
| 2. | 6L-4783 | [16] | BOLT-12 POINT HEAD(5/16-18X1.25-IN) | |
| 3. | 8E-3610 | [1] | RETAINER | |
| 4. | 7G-1141 | [1] | SHAFT-CENTER | |
| 5. | 176-4114 | [1] | CARRIER AS | |
| | 6F-6547 | [1] | BUSHING | |
| 6. | 8D-8621 | [1] | RING-RETAINING | |
| 7. | 7G-1158B | [1] | SHIM PACK(INCLUDES 17-SHIMS) | |
| 8. | 8E-8307 | [10] | DISC-THRUST | |
| 9. | 7G-0747 | [5] | SHAFT AS | |
| | | | (EACH INCLUDES) |
| | 2A-3746 | [1] | PLUG-CUP | |
| 10. | 3S-2708 | [19] | PIN-SPRING | |
| 11. | 5M-0578 | [10] | BEARING AS-ROLLER | |
| 12. | 224-4826 | [5] | GEAR-PLANETARY(21-TEETH) | |
| 13. | 133-2968 | [1] | GEAR-RING(85-TEETH) | |
| 14. | 141-9746 | [1] | PLATE-END | |
| 15. | 8D-4771 | [1] | SEAL-O-RING | |
| 16. | 133-2972 | [1] | HOUSING AS | |
| | 1A-2223 | [2] | DOWEL | |
| 17. | 102-8671 | [16] | DISC-FRICTION | |
| 18. | 6T-1996 | [9] | PLATE-CLUTCH | |
| 19. | 132-9643 | [2] | PISTON-CLUTCH | |
| 20. | 3P-2795 | [4] | SEAL-RING | |
| 21. | 7G-1186 | [2] | RING-SEAL(EXTERNAL) | |
| 22. | 7G-1596 | [1] | RING-RETAINING | |
| 23. | 7G-0746 | [4] | SHAFT AS | |
| | | | (EACH INCLUDES) |
| | 5M-7921 | [1] | PLUG-CORE | |
| 24. | 9M-4355 | [10] | DAMPER-BOLT | |
| 25. | 5P-9345 | [8] | BEARING | |
| 26. | 224-4825 | [4] | GEAR-PLANETARY(20-TEETH) | |
| 27. | 8E-8306 | [8] | DISC-THRUST | |
| 28. | 133-3024 | [1] | HOUSING-CLUTCH | |
| 29. | 8P-8744 | [2] | RING-SEAL EXTENSION | |
| 30. | 5P-9362 | [1] | RING-RETAINING | |
| 31. | 7G-0825 | [3] | PLATE-CLUTCH | |
| 32. | 5M-6126 | [13] | BEARING AS-ROLLER | |
| 33. | 7G-2516 | [4] | GEAR-PLANETARY(24-TEETH) | |
| 34. | 8E-8304 | [26] | DISC-THRUST | |
| 35. | 7G-0721 | [4] | SHAFT-PLANETARY | |
| 36. | 6Y-9807 | [5] | DISC-FRICTION | |
| 37. | 7G-0824 | [4] | PLATE-CLUTCH | |
| 38. | 1T-0141 | [1] | RING-METAL SEAL | |
| 39. | 2L-0043 | [1] | RING-RETAINING | |
| 40. | 106-7799 | [2] | BALL BEARING | |
| 41. | 1A-2170 | [28] | SPRING-RETAINER | |
| 42. | 3T-2299 | [2] | RING-SEAL EXTENSION | |
| 43. | 6Y-2281 | [2] | RING-SEAL | |
| 44. | 1S-0579 | [1] | BALL BEARING | |
| 45. | 6Y-5888 | [2] | RING-SEAL | |
| 46. | 3T-3725 | [2] | RING-SEAL EXTENSION | |
| 47. | 8S-3370 | [1] | RING-SEAL | |
| 48. | 3P-0896 | [2] | RING-RETAINING | |
| 49. | 5L-4753 | [2] | RING-RETAINING | |
| 50. | 6V-4323 | [1] | BALL BEARING | |
| 51. | 5M-6212 | [3] | TUBE | |
| 52. | 7G-0719 | [3] | SHAFT-PLANETARY | |
| 53. | 8P-2051 | [1] | PLATE-CLUTCH | |
| 54. | 9P-7390 | [2] | DISC AS-FRICTION | |
| 55. | 8E-9599 | [1] | PISTON-CLUTCH | |
| 56. | 145-2318 | [1] | HOUSING AS | |
| | 1A-2223 | [2] | DOWEL | |
| 57. | 6V-1720 | [1] | PLATE-SERIAL NUMBER(TRANSMISSION) | |
| 58. | 8P-2022 | [1] | RING-SEAL | |
| 59. | 8P-9569 | [1] | RING-SEAL | |
| 60. | 145-2339 | [1] | HUB AS | |
| | 9M-2001 | [1] | DOWEL | |
| 61. | 145-2324 | [1] | CAGE-BEARING | |
| 62. | 7G-2476 | [6] | GEAR-PLANETARY(20-TEETH) | |
| 63. | 067-3161 | [1] | RING-RETAINING | |
| 64. | 5P-6727 | [1] | BALL BEARING | |
| 65. | 5P-5296 | [1] | RING-RETAINING | |
| 66. | 3T-7000 | [1] | RING-RETAINING | |
| 67. | 3N-8506 | [1] | RING-PISTON | |
| 68. | 3T-6999 | [1] | GEAR-SUN(30, 26-TEETH) | |
| 69. | 7G-0720 | [3] | SHAFT-PLANETARY | |
| 70. | 149-5461 | [1] | SEAL-O-RING | |
| 71. | 2B-0947 | [8] | BOLT(1/2-13X2.25-IN) | |
| 72. | 5P-8245 | [63] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 73. | 7G-0725 | [1] | GEAR-RING(72-TEETH) | |
| 74. | 3D-9348 | [2] | BOLT(1/2-13X7.75-IN) | |
| 75. | 1A-7669 | [8] | BOLT(1/2-13X7-IN) | |
| 76. | 4M-8871 | [10] | DOWEL | |
| 77. | 4M-9592 | [20] | SPRING | |
| 78. | 307-3850 | [1] | HOUSING-CLUTCH | |
| 79. | 9H-5545 | [5] | DOWEL-REACTION | |
| 80. | 7G-0731 | [2] | PISTON-CLUTCH | |
| 81. | 7M-5813 | [10] | SPRING | |
| 82. | 8E-3602 | [1] | CARRIER AS | |
| | 3T-7003 | [1] | BUSHING | |
| 83. | 7G-1143 | [1] | GEAR AS(73-TEETH) | |
| | 9M-2001 | [1] | DOWEL | |
| 84. | 3T-0707 | [2] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 5H-6202 | [2] | PIN | |
| 85. | 0S-1588 | [36] | BOLT(3/8-16X1.25-IN) | |
| 86. | 5M-2894 | [55] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 87. | 7G-2475 | [3] | GEAR-PLANETARY(24-TEETH) | |
| 88. | 8P-2053 | [1] | SEAL-RING | |
| 89. | 9F-3823 | [2] | RING-SEAL | |
| 90. | 9W-9158 | [1] | PISTON-BALANCE | |
| 91. | 9W-9159 | [1] | PISTON-CLUTCH | |
| 92. | 9W-9161 | [1] | HOUSING AS | |
| | 6B-6863 | [1] | PIN-SPRING | |
| | 6P-7706 | [1] | CARRIER-RING | |
| | 8M-6521 | [2] | DOWEL | |
| | 8S-3426 | [1] | DOWEL | |
| 93. | 3T-0697 | [1] | MANIFOLD-CENTER | |
| 94. | 0S-1571 | [9] | BOLT(3/8-16X1.75-IN) | |
| 95. | 8E-9292 | [1] | MANIFOLD AS | |
| | 8S-3426 | [1] | DOWEL | |
| 96. | 7G-0739 | [1] | HOUSING AS | |
| | 8M-6521 | [2] | DOWEL | |
| 97. | 061-6712 | [1] | RING-RETAINING | |
| 98. | 4S-5816 | [1] | RING-SEAL | |
| 99. | 3T-3751 | [1] | PISTON-CLUTCH | |
| 100. | 5P-0076 | [6] | BOLT-12 POINT HEAD(3/8-16X1.5-IN) | |
| 101. | 3T-3723 | [1] | PISTON-BALANCE | |
| 102. | 0L-1351 | [2] | BOLT(3/8-16X0.875-IN) | |
| 103. | 3T-3997 | [1] | BAFFLE AS | |
| | 5C-1014 | [2] | BRACKET-LATCH | |
| 104. | 7G-1146 | [1] | GEAR AS-SUN(55-TEETH) | |
| | 9M-2001 | [1] | DOWEL | |
| 105. | 7G-0713 | [1] | CARRIER AS | |
| | 9L-9068 | [2] | DOWEL | |
| 106. | 7G-0727 | [1] | GEAR-RING(101-TEETH) | |
| 107. | 9F-3788 | [1] | RING-METAL SEAL | |
| 108. | 164-9661 | [1] | HOUSING AS | |
| | 1A-2223 | [4] | DOWEL | |
| 109. | 0S-1617 | [4] | BOLT(5/16-18X0.75-IN) | |
| 110. | 1B-7182 | [2] | BOLT(5/16-18X1.25-IN) | |
| 111. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 112. | 7G-0743 | [1] | PLATE | |
| 113. | 9M-1503 | [1] | RING-METAL SEAL | |
| 114. | 1M-9691 | [10] | SPRING | |
| 115. | 164-9662 | [5] | DOWEL-REACTION | |
| 116. | 133-2969 | [1] | GEAR-RING(85-TEETH) | |
| 117. | 4M-1678 | [10] | SPRING | |
| 118. | 135-8685 | [10] | PIN | |
| 119. | 0S-1587 | [25] | BOLT(1/2-13X1.75-IN) | |
| 120. | 1D-4574 | [10] | BOLT(1/2-13X6-IN) | |
| 121. | 4M-9641 | [10] | BOLT(1/2-13X12.75-IN) | |
| 122. | 7G-0744 | [1] | PLATE-RETAINER | |
| 123. | 1T-0720 | [4] | BOLT-12 POINT HEAD(3/8-16X1.25-IN) | |
| 124. | 7G-1148 | [1] | GEAR-SUN(30-TEETH) | |
| 125. | 7G-1159 | [1] | PLATE-RETAINER | |
| 126. | 5F-7054 | [1] | SEAL-O-RING | |
| 127. | 185-8733 | [1] | RETAINER AS | |
| 128. | 9M-5894 | [1] | SEAL-O-RING | |
| 129. | 188-0751 | [1] | RING-RETAINING | |
| 130. | 0T-0573 | [8] | BOLT(3/8-16X2.75-IN) | |
| 131. | 5P-9344 | [1] | BEARING AS-ROLLER | |
| 132. | 266-0830 | [1] | SEAL-LIP TYPE | |
| 133. | 185-8731 | [1] | ROTOR-SENSOR | |
| 134. | 7G-1136 | [1] | GEAR AS-SUN(29-TEETH) | |
| | 7G-1137 | [1] | GEAR-SUN(29-TEETH) | |
| | 7G-1138 | [1] | HUB-COUPLING | |
| | 9S-2843 | [1] | RING-LOCK | |
| 135. | 171-7209 | [1] | RING-SEAL | |
| 136. | 222-1550 | [1] | CARRIER-PLANETARY | |
| 137. | 191-8305 | [1] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| 138. | 117-1385 | [2] | SEAL-O-RING | |
| 139. | 2H-3755 | [2] | BOLT(5/16-18X0.43-IN) | |
| 140. | 186-2447 | [2] | GUARD | |
| 141. | 191-8304 | [1] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| 142. | 3E-4352 | [2] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
