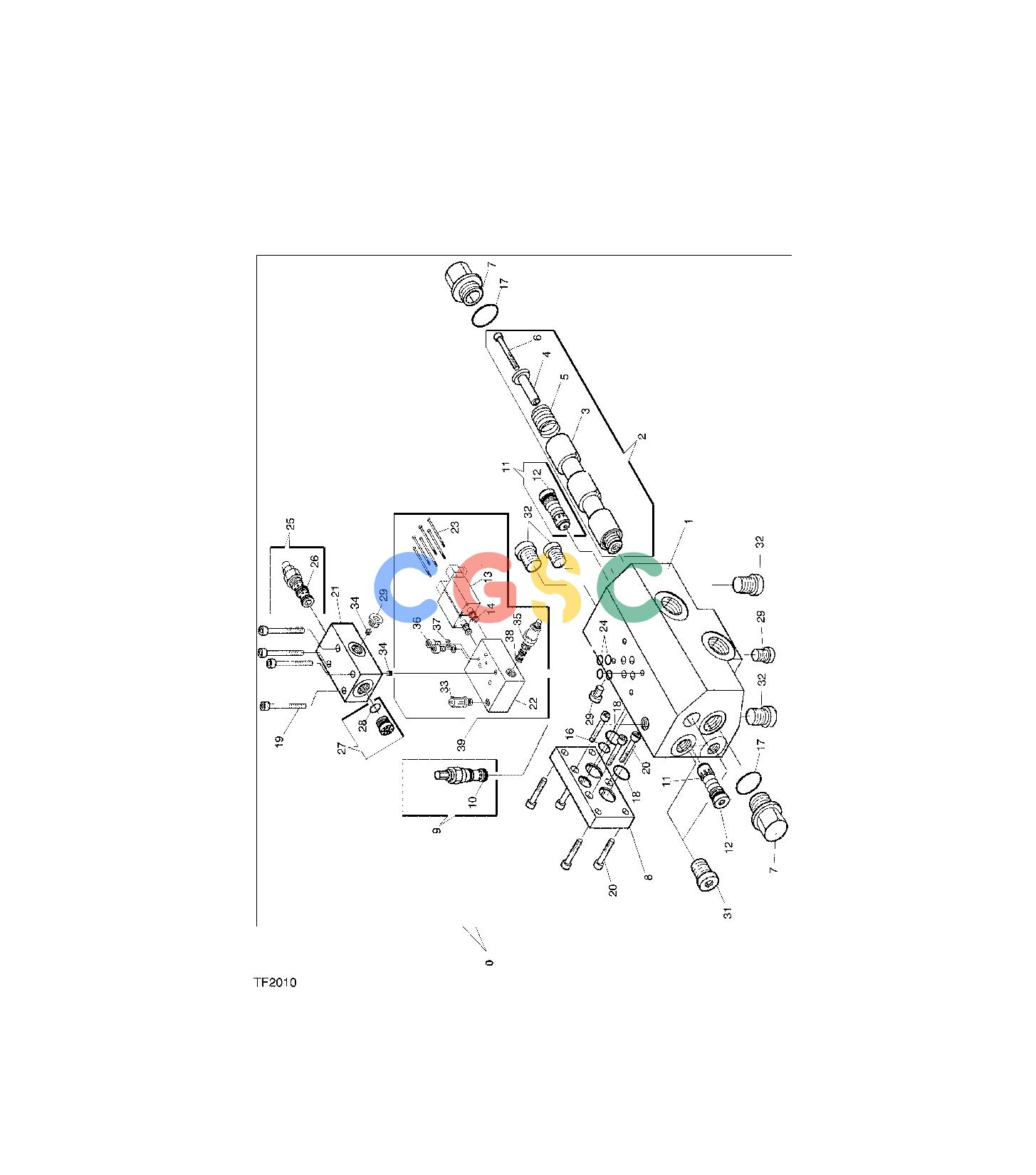

约翰迪尔零件查询762C ATT - ATTACHMENTS ENGINE FEED WHEEL BLOCK F048250 11 16.2 TF2010 [TF2010]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
866 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F049328
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F048342
|
[1] |
BLOCK
|
|
| 2. |
F058047
|
[1] |
Spool
|
|
| 3. |
F056528
|
[1] |
Spool
|
|
| 4. |
F048994
|
[2] |
Tube
|
|
| 5. |
F048993
|
[2] |
Spring
|
|
| 6. |
F048992
|
[2] |
Cap Screw
|
|
| 7. |
F048340
|
[2] |
Plug
|
|
| 8. |
F018792
|
[1] |
CONNECTING PLATE
|
|
| 9. |
F048339
|
[1] |
Relief Valve
|
|
| 10. |
F033364
|
[1] |
Seal Kit
|
|
| 11. |
F018794
|
[2] |
Relief Valve
|
|
| 12. |
F004571
|
[2] |
O-Ring
|
|
| 13. |
F018795
|
[2] |
Relief Valve
|
|
| 14. |
F022078
|
[2] |
Seal Kit
|
|
| 16. |
F018768
|
[1] |
O-Ring
|
|
| 17. |
F018796
|
[2] |
O-Ring
|
|
| 18. |
F021688
|
[2] |
O-Ring
|
|
| 19. |
F003147
|
[4] |
Cap Screw
|
|
| 20. |
F010537
|
[7] |
Cap Screw
|
|
| 21. |
F059611
|
[1] |
VALVE BLOCK SECTION
|
|
| 22. |
F060358
|
[1] |
BLOCK
|
|
| 23. |
F057000
|
[6] |
Cap Screw
|
|
| 24. |
F003286
|
[5] |
O-Ring
|
|
| 25. |
F046419
|
[1] |
REDUCING VALVE
|
|
| 26. |
F021587
|
[1] |
Seal Kit
|
|
| 27. |
F008631
|
[1] |
Check Valve
|
|
| 28. |
F021605
|
[1] |
O-Ring
|
|
| 29. |
F018111
|
[3] |
Plug
|
|
| 31. |
F005570
|
[2] |
Plug
|
|
| 32. |
F018067
|
[4] |
Plug
|
|
| 33. |
F004419
|
[1] |
MEASURING NIPPLE
|
|
| 34. |
F054478
|
[1] |
Orifice
|
|
| 35. |
F021599
|
[1] |
Relief Valve
|
|
| 36. |
F060359
|
[2] |
Cap Screw
|
|
| 37. |
F016317
|
[2] |
SEAL RING
|
|
| 38. |
F021600
|
[2] |
Seal Kit
|
|
| 39. |
F060206
|
[1] |
VALVE BLOCK
|
|
