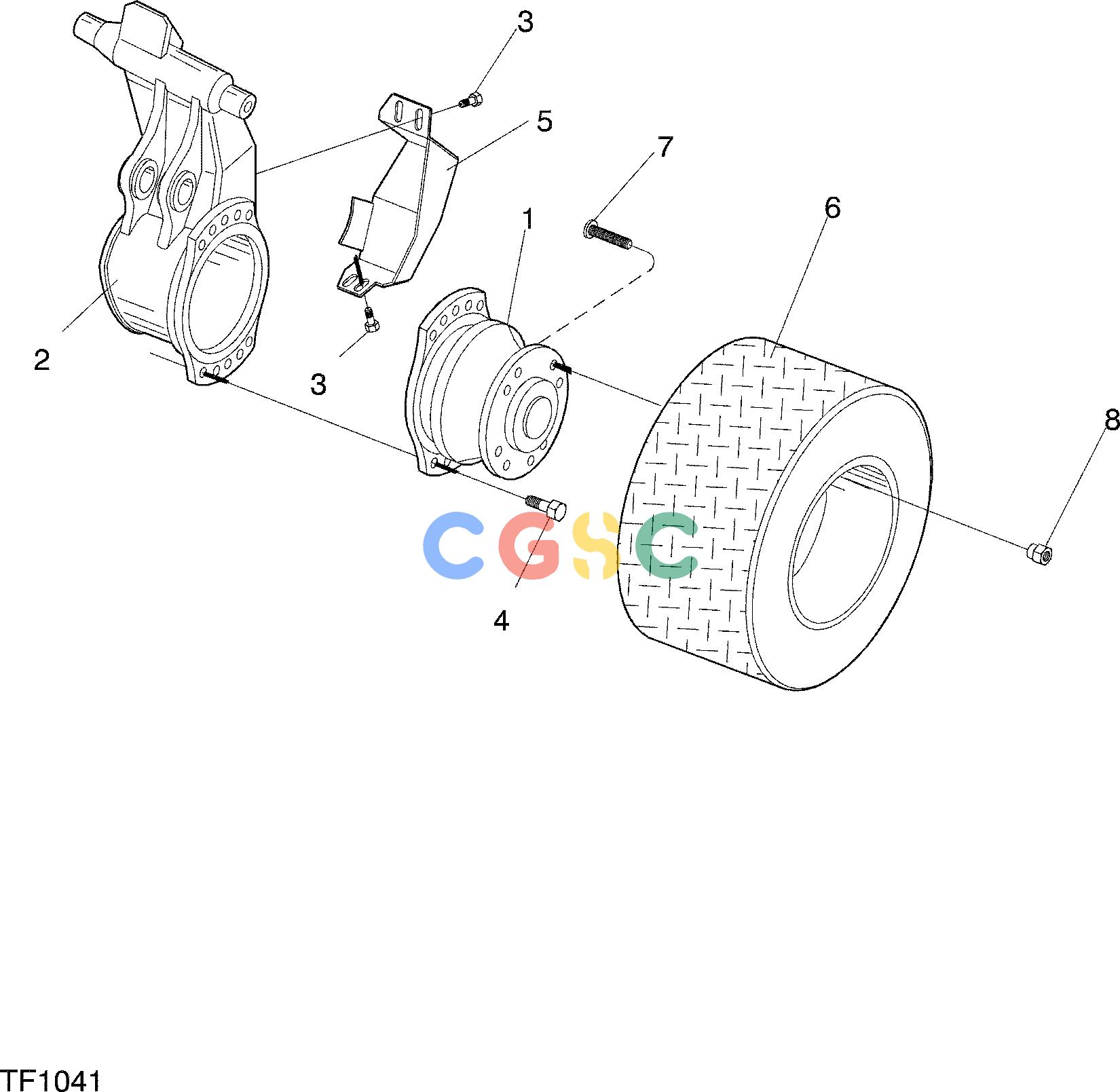

约翰迪尔零件查询762C ATT - ATTACHMENTS ENGINE WHEEL MOUNTING F048250 11 4 TF1041 [TF1041]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
969 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F037025
|
[2] |
Hydraulic Motor
|
|
| 1. |
F055829
|
[2] |
Hydraulic Motor
|
|
| 1. |
F056832
|
[2] |
Hydraulic Motor
|
|
| 2. |
F034274
|
[1] |
WHEEL MOUNTING
|
|
| 2. |
F034273
|
[1] |
WHEEL MOUNTING
|
|
| 3. |
F040644
|
[8] |
Screw
|
|
| 4. |
F026120
|
[20] |
Screw
|
|
| 5. |
F041181
|
[1] |
PROTECTION PLATE
|
|
| 5. |
F041182
|
[1] |
PROTECTION PLATE
|
|
| 6. |
F022484
|
[2] |
FEED WHEEL
|
|
| 6. |
F049324
|
[2] |
FEED WHEEL
|
|
| 6. |
F011178
|
[2] |
FEED WHEEL
|
|
| 6. |
F050473
|
[2] |
FEED WHEEL
|
|
| 6. |
F049324
|
[2] |
FEED WHEEL
|
|
| 7. |
F049053
|
[12] |
PIN SCREW
|
|
| 8. |
F049054
|
[12] |
Nut
|
|
| 9. |
F033710
|
[1] |
LOCKING FLUID
|
|
