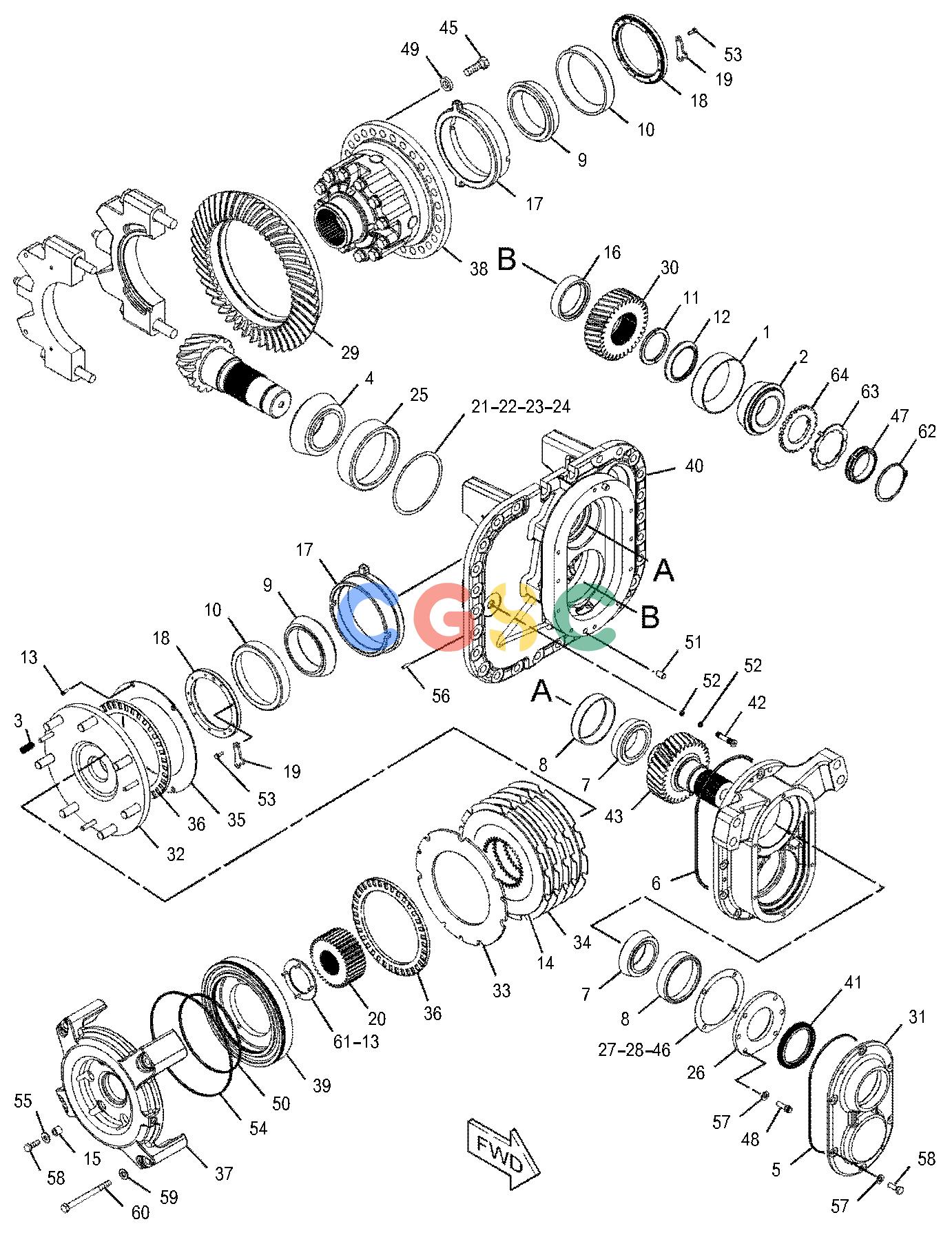

卡特零件查询（735） 154-0300: DIFFERENTIAL & BEVEL GEAR GP
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2D-9454 | [1] | CUP-BEARING | |
| 2. | 2D-9455 | [1] | CONE-BEARING | |
| 3. | 3S-1374 | [3] | SPRING | |
| 4. | 5P-9505 | [1] | CONE-BEARING | |
| 5. | 5S-3676 | [1] | SEAL-O-RING | |
| 6. | 6V-5057 | [1] | SEAL-O-RING | |
| 7. | 8H-7801 | [2] | CONE-BEARING | |
| 8. | 8H-7803 | [2] | CUP-BEARING | |
| 9. | 8S-9075 | [2] | CONE-BEARING | |
| 10. | 8S-9076 | [2] | CUP-BEARING | |
| 11. | 9D-1853 | [2] | RETAINER | |
| 12. | 9D-1854 | [1] | SPACER-SPECIAL(12.7-MM THK) | |
| 13. | 127-1960M | [8] | SCREW-FLAT HEAD(M6X1X16-MM) | |
| 14. | 136-6325 | [5] | DISC-FRICTION | |
| 15. | 138-1490 | [3] | SPACER(10.2X18X15-MM THK) | |
| 16. | 138-1505 | [1] | SPACER-SPECIAL | |
| 17. | 138-3623 | [2] | CAGE | |
| 18. | 138-3624 | [2] | RING | |
| 19. | 138-3626 | [2] | LOCK | |
| 20. | 138-3638 | [1] | HUB | |
| 21. | 138-4096B | [5] | SHIM(0.05-MM THK) | |
| 22. | 138-4097B | [5] | SHIM(0.08-MM THK) | |
| 23. | 138-4098B | [3] | SHIM(0.12-MM THK) | |
| 24. | 138-4099B | [1] | SHIM(0.5-MM THK) | |
| 25. | 1J-2860 | [1] | CUP-BEARING | |
| 26. | 139-2154 | [1] | CAGE | |
| 27. | 139-2155B | [4] | SHIM(0.08-MM THK) | |
| 28. | 139-2156B | [5] | SHIM(0.12-MM THK) | |
| 29. | 361-9414 | [1] | GEAR SET-BEVEL | |
| 30. | 147-7379 | [1] | GEAR(33-TEETH) | |
| 31. | 147-7383 | [1] | RETAINER-SEAL | |
| 32. | 258-4467 | [1] | HUB AS | |
| | 151-8108 | [3] | DOWEL | |
| | | [7] | DOWEL |
| 33. | 151-8281 | [1] | PLATE | |
| 34. | 151-8282 | [5] | PLATE | |
| 35. | 151-8397 | [1] | PLATE | |
| 36. | 224-2323 | [2] | BEARING-THRUST | |
| 37. | 445-6671 | [1] | HOUSING-PISTON | |
| 38. | 219-1879Y | [1] | DIFFERENTIAL GP(DRIVE AXLE) | |
| 39. | 160-8058 | [1] | PISTON | |
| 40. | 367-6368Y | [1] | CARRIER GP-DIFFERENTIAL(CENTER) | |
| 41. | 293-4503 | [1] | SEAL-LIP TYPE | |
| 42. | 163-1921 | [1] | TUBE | |
| 43. | 168-9029 | [1] | GEAR AS | |
| | 4K-0149 | [1] | PLUG-CUP | |
| 45. | 160-8509M | [28] | BOLT(M16X2X50-MM) | |
| 46. | 184-4339 | [1] | SHIM(0.92-MM THK) | |
| 47. | 504-6540 | [1] | NUT-BEARING LOCK | |
| 48. | 434-0776M | [4] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 49. | 171-3010 | [28] | WASHER-HARD(17.5X32X7-MM THK) | |
| 50. | 1H-8278 | [1] | SEAL-O-RING | |
| 51. | 1S-2199 | [2] | DOWEL | |
| 52. | 4J-2506 | [2] | SEAL-O-RING | |
| 53. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 54. | 5H-4909 | [1] | SEAL-O-RING | |
| 55. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 56. | 8C-3347 | [2] | PIN-ROLL | |
| 57. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 58. | 8T-4195M | [9] | BOLT(M10X1.5X30-MM) | |
| 59. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 60. | 8T-5412M | [4] | BOLT(M12X1.75X140-MM) | |
| 61. | 444-8152 | [1] | WASHER-THRUST | |
| 62. | 5L-4753 | [1] | RING-RETAINING | |
| 63. | 485-9743 | [1] | WASHER-LOCK | |
| 64. | 504-6542 | [1] | WASHER | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
