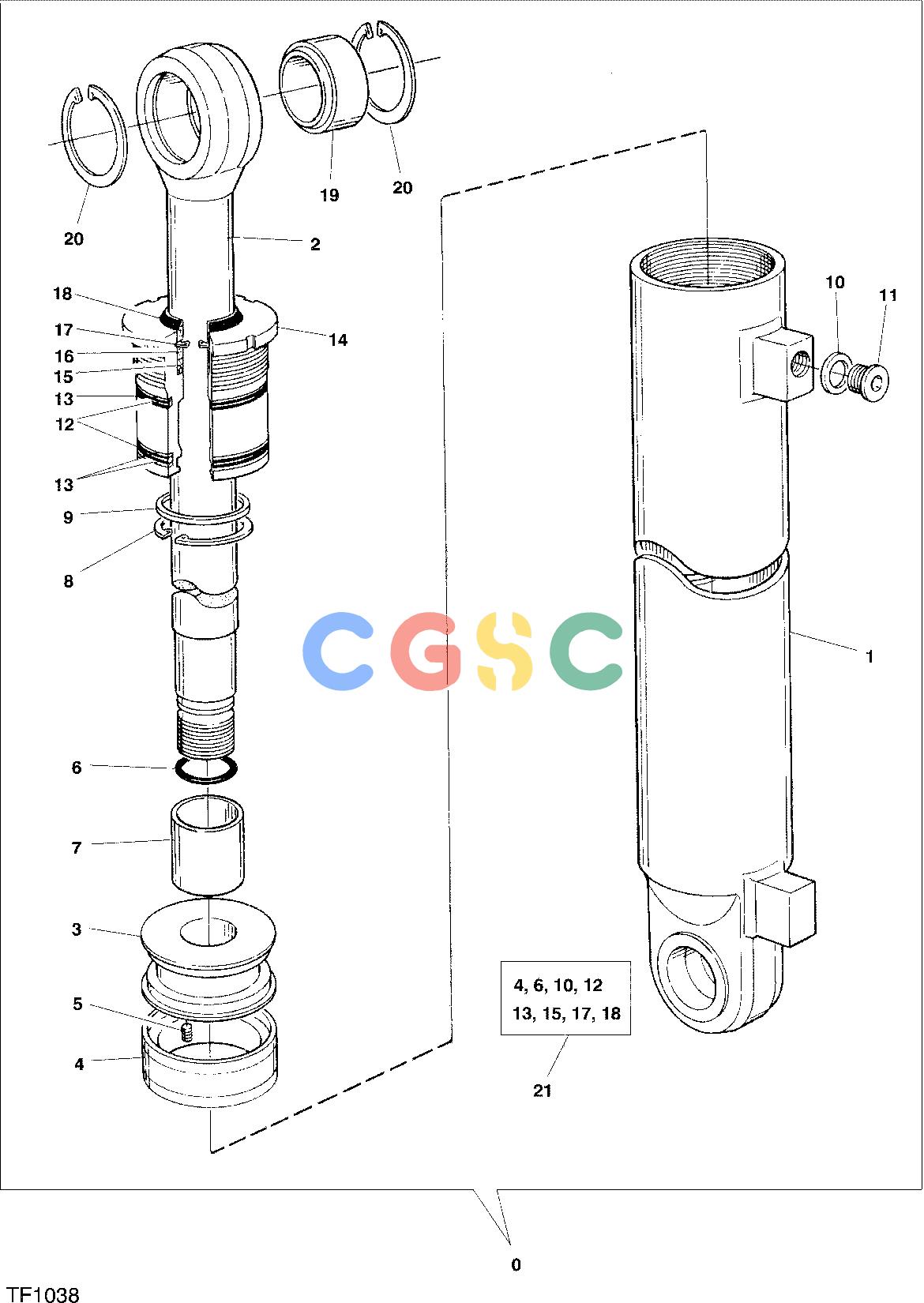

约翰迪尔零件查询762C ATT - ATTACHMENTS ENGINE CYLINDER, TILTING F048250 11 26 TF1038 [TF1038]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F029982
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F033862
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 2. |
F019065
|
[1] |
PISTON ROD
|
|
| 3. |
F005612
|
[1] |
Piston
|
|
| 4. |
F015236
|
[1] |
Seal
|
|
| 5. |
F011446
|
[1] |
Set Screw
|
|
| 6. |
F005500
|
[1] |
O-Ring
|
|
| 7. |
F019064
|
[1] |
Ring
|
|
| 8. |
F019070
|
[1] |
Snap Ring
|
|
| 9. |
F019067
|
[1] |
Ring
|
|
| 10. |
F005164
|
[1] |
Sealing Washer
|
|
| 11. |
F003382
|
[1] |
Plug
|
|
| 12. |
F003291
|
[2] |
O-Ring
|
|
| 13. |
F003765
|
[3] |
Back-Up Ring
|
|
| 14. |
F019068
|
[1] |
Cylinder Head
|
|
| 15. |
F015739
|
[1] |
Seal
|
|
| 16. |
F015740
|
[1] |
Ring
|
|
| 17. |
F003369
|
[1] |
Snap Ring
|
|
| 18. |
F007653
|
[1] |
Scraper Ring
|
|
| 19. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 20. |
F003370
|
[4] |
Snap Ring
|
|
| 21. |
F019069
|
[1] |
Seal Kit
|
|
