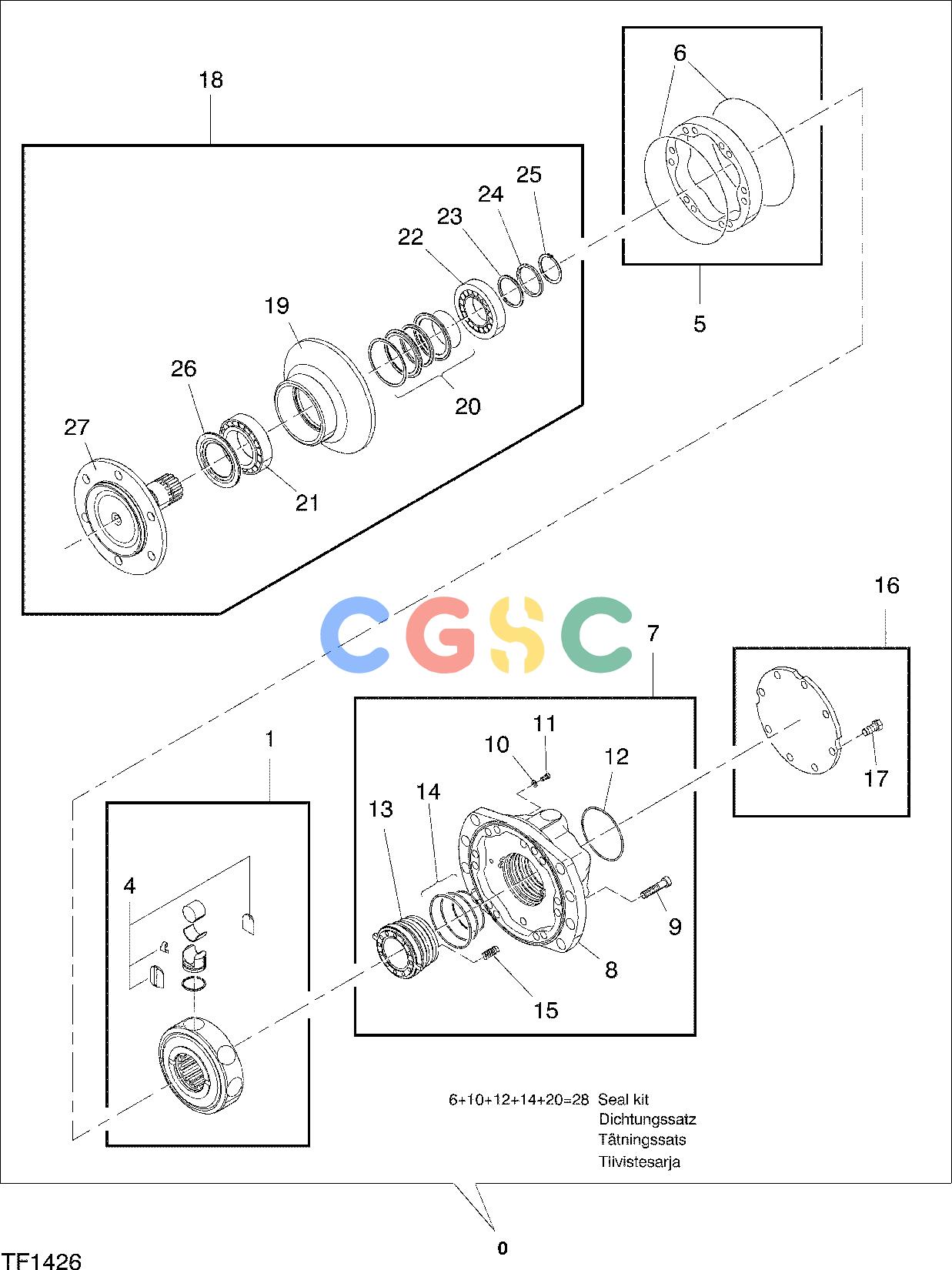

约翰迪尔零件查询762C ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, FEED ROLLS, 857 CC /934 CC F048250 11 38.1 TF1426 [TF1426]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F055829
|
[1] |
Hydraulic Motor
|
|
| 0. |
F056832
|
[1] |
Hydraulic Motor
|
|
| 1. |
F049025
|
[1] |
Cylinder Block
|
|
| 4. |
F049028
|
[1] |
Repair Kit
|
|
| 5. |
F056141
|
[1] |
Cam
|
|
| 5. |
F056918
|
[1] |
Cam
|
|
| 6. |
F049030
|
[2] |
O-Ring
|
|
| 7. |
F056840
|
[1] |
Cover
|
|
| 8. |
F049032
|
[1] |
Cover
|
|
| 9. |
F056841
|
[16] |
Screw
|
|
| 10. |
F049034
|
[2] |
Gasket
|
|
| 11. |
F049035
|
[2] |
Screw
|
|
| 12. |
F049036
|
[1] |
O-Ring
|
|
| 13. |
F049037
|
[1] |
DISTRIBUTOR
|
|
| 14. |
F049038
|
[1] |
Seal Kit
|
|
| 15. |
F049039
|
[8] |
Spring
|
|
| 16. |
F049040
|
[1] |
Plate
|
|
| 17. |
F056843
|
[8] |
Screw
|
|
| 18. |
F049042
|
[1] |
BEARING BRACKET
|
|
| 19. |
F049043
|
[1] |
BEARING BRACKET
|
|
| 20. |
F049044
|
[1] |
Seal Kit
|
|
| 21. |
F049045
|
[1] |
Bearing
|
|
| 22. |
F049046
|
[1] |
Bearing
|
|
| 23. |
F049047
|
[1] |
Shim
|
|
| 24. |
F049048
|
[1] |
Ring
|
|
| 25. |
F049049
|
[1] |
Ring
|
|
| 26. |
F049050
|
[1] |
Seal
|
|
| 27. |
F049051
|
[1] |
Shaft
|
|
| 28. |
F049052
|
[1] |
Seal Kit
|
|
