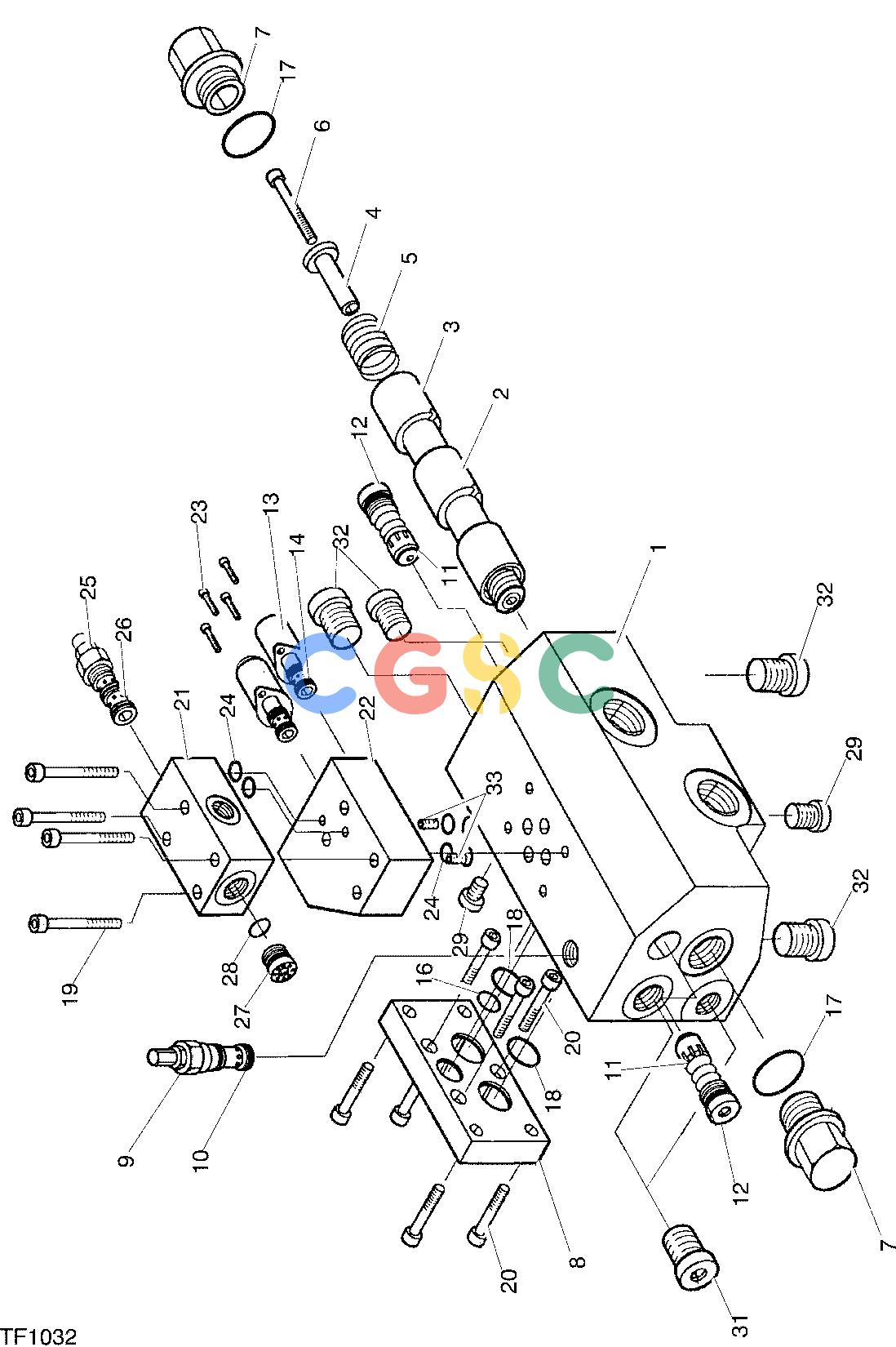

约翰迪尔零件查询762C ATT - ATTACHMENTS ENGINE FEED WHEEL BLOCK F048250 11 16 TF1032 [TF1032]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F049328
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F048342
|
[1] |
Manifold
|
|
| 2. |
F048341
|
[1] |
Spool
|
|
| 2. |
F058047
|
[1] |
Spool
|
|
| 3. |
F038824
|
[1] |
Spool
|
|
| 3. |
F056528
|
[1] |
Spool
|
|
| 4. |
F048994
|
[2] |
Tube
|
|
| 5. |
F048993
|
[2] |
Spring
|
|
| 6. |
F048992
|
[2] |
Screw
|
|
| 7. |
F048340
|
[2] |
Plug
|
|
| 8. |
F018792
|
[1] |
CONNECTING PLATE
|
|
| 9. |
F048339
|
[1] |
Relief Valve
|
|
| 10. |
F033364
|
[1] |
Seal Kit
|
|
| 11. |
F018794
|
[2] |
Relief Valve
|
|
| 12. |
F004571
|
[2] |
O-Ring
|
|
| 13. |
F048338
|
[2] |
PRESSURE REDUCING VALVE
|
|
| 14. |
F048991
|
[2] |
Seal Kit
|
|
| 16. |
F018768
|
[1] |
O-Ring
|
|
| 17. |
F018796
|
[2] |
O-Ring
|
|
| 18. |
F021688
|
[2] |
O-Ring
|
|
| 19. |
F008751
|
[4] |
Screw
|
|
| 20. |
F010726
|
[7] |
Screw
|
|
| 21. |
F048337
|
[1] |
BLOCK
|
|
| 22. |
F048336
|
[1] |
BLOCK
|
|
| 23. |
F001624
|
[4] |
Screw
|
|
| 24. |
F003286
|
[6] |
O-Ring
|
|
| 25. |
F046419
|
[1] |
REDUCING VALVE
|
|
| 26. |
F021587
|
[1] |
Seal Kit
|
|
| 27. |
F008631
|
[1] |
Check Valve
|
|
| 28. |
F021605
|
[1] |
O-Ring
|
|
| 29. |
F018111
|
[2] |
Plug
|
|
| 31. |
F005570
|
[2] |
Plug
|
|
| 32. |
F018067
|
[4] |
Plug
|
|
| 33. |
F013458
|
[2] |
THROTTLE SCREW
|
|
