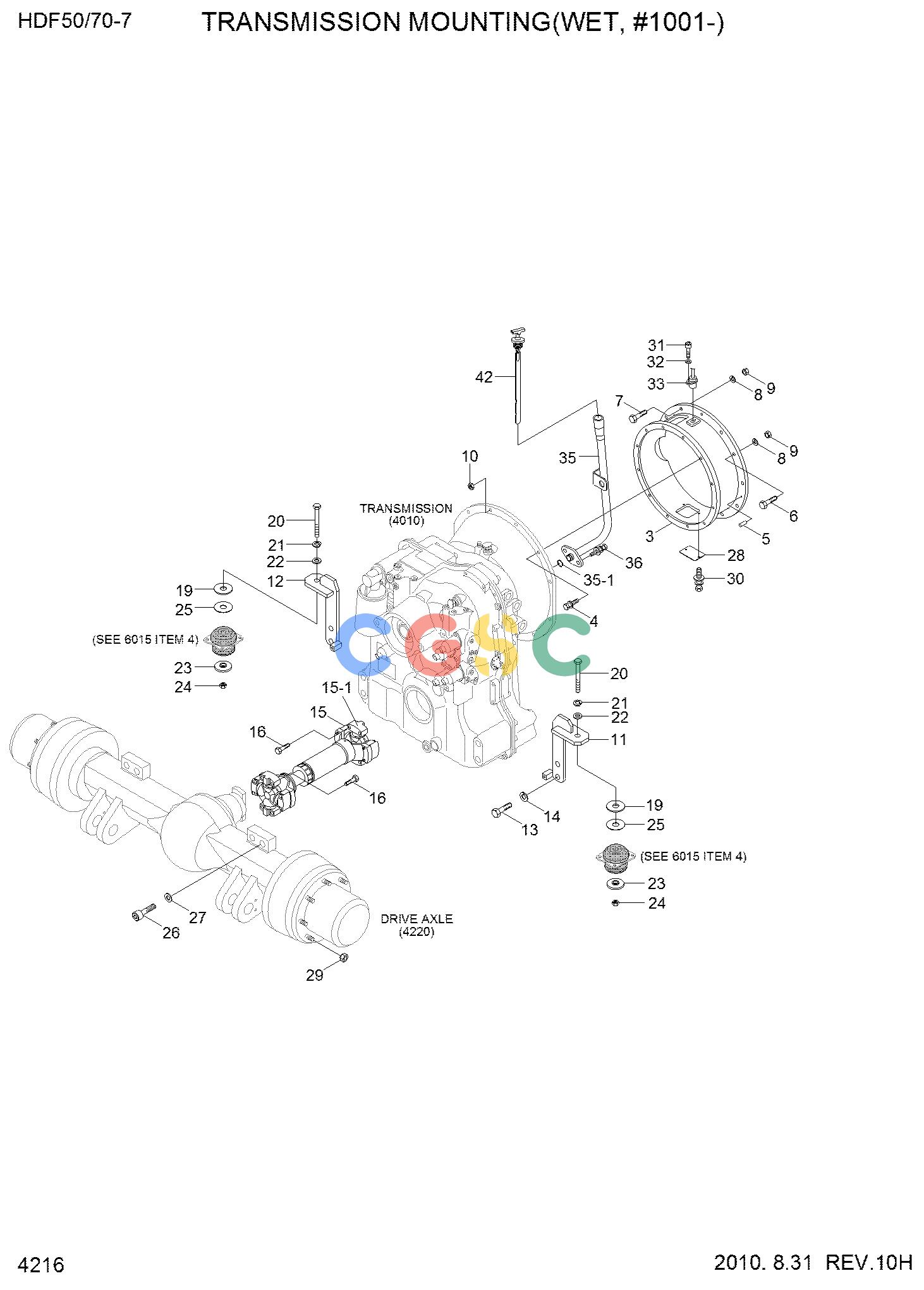

现代零件查询HDF50/70-7 TRANSMISSION MOUNTING(WET,#1001-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRANSMISSION MOUNTING
|
|
| 3. |
87FQ-30010
|
[1] |
HOUSING T/C
|
|
| 3. |
87FQ-30020
|
[1] |
HOUSING T/C
|
|
| 3. |
87FQ-30010
|
[1] |
HOUSING T/C
|
|
| 3. |
87FQ-30020
|
[1] |
HOUSING T/C
|
|
| 4. |
S037-103016
|
[12] |
BOLT-W/WASHER
|
|
| 5. |
81FA-31200
|
[2] |
PIN
|
|
| 5. |
S510-102400
|
[2] |
PIN-DOWEL
|
|
| 5. |
81FA-31200
|
[2] |
PIN
|
|
| 5. |
S510-102400
|
[2] |
PIN-DOWEL
|
|
| 6. |
S017-100356
|
[6] |
BOLT-HEX
|
|
| 7. |
S017-100456
|
[4] |
BOLT-HEX
|
|
| 8. |
S411-100006
|
[10] |
WASHER-SPRING
|
|
| 9. |
S205-101006
|
[10] |
NUT-HEX
|
|
| 10. |
S037-102026
|
[4] |
BOLT-W/WASHER
|
|
| 11. |
81FQ-30060
|
[1] |
BRACKET-LH T/M
|
|
| 11. |
81FQ-35121
|
[1] |
BRACKET-LH T/M
|
|
| 11. |
81FQ-30060
|
[1] |
BRACKET-LH T/M
|
|
| 11. |
81FQ-35121
|
[1] |
BRACKET-LH T/M
|
|
| 12. |
81FQ-30070
|
[1] |
BRACKET-RH T/M
|
|
| 12. |
81FQ-35131
|
[1] |
BRACKET-RH T/M
|
|
| 12. |
81FQ-30070
|
[1] |
BRACKET-RH T/M
|
|
| 12. |
81FQ-35131
|
[1] |
BRACKET-RH T/M
|
|
| 13. |
S017-20045D
|
[4] |
BOLT-HEX
|
|
| 14. |
S441-200006
|
[4] |
WASHER-HARDENED
|
|
| 15. |
81FQ-30080
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30120
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30080
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30081
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30080
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30120
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30080
|
[1] |
SHAFT-PROPELLER
|
|
| 15. |
81FQ-30081
|
[1] |
SHAFT-PROPELLER
|
|
| 15-1. |
100-6C
|
[2] |
J/BEARING ASSY
|
|
| 16. |
S088-060286
|
[8] |
BOLT-HEX,UNIFIED
|
|
| 19. |
FDE0100120-DA
|
[2] |
WASHER-REBOUND
|
|
| 20. |
S017-16130D
|
[2] |
BOLT-HEX
|
|
| 21. |
S411-160006
|
[2] |
WASHER-SPRING
|
|
| 22. |
S403-161006
|
[2] |
WASHER-PLAIN
|
|
| 23. |
FDE0100110-DA
|
[2] |
WASHER-OVERLOAD
|
|
| 24. |
FBC0100300-DA
|
[2] |
U-NUT
|
|
| 25. |
F31330010
|
[2] |
SHIM(1.0T)
|
|
| 26. |
S109-24080D
|
[6] |
BOLT-SOCKET
|
|
| 27. |
81FQ-30090
|
[6] |
WASHER-HARDENED
|
|
| 28. |
81FQ-30101
|
[2] |
COVER-T/C HOUSING
|
|
| 29. |
F14420100-DA
|
[16] |
NUT-HUB
|
|
| 30. |
S035-061526
|
[4] |
BOLT-W/WASHER
|
|
| 31. |
S109-060156
|
[1] |
BOLT-SOCKET
|
|
| 32. |
S411-060006
|
[1] |
WASHER-SPRING
|
|
| 33. |
17FV-00020
|
[1] |
SENSOR-CRANK POSITION
|
|
| 35. |
81FQ-35140
|
[1] |
PIPE WA
|
|
| 35. |
81FQ-35140
|
[1] |
PIPE WA
|
|
| 35-1. |
S611-030001
|
[1] |
O-RING
|
|
| 36. |
S035-082026
|
[1] |
BOLT-W/WASHER
|
|
| 36. |
S035-082026
|
[1] |
BOLT-W/WASHER
|
|
| 42. |
ZGAQ-03784
|
[1] |
DIPSTICK-OIL
|
|
| 42. |
ZGAQ-03784
|
[1] |
DIPSTICK-OIL
|
|
