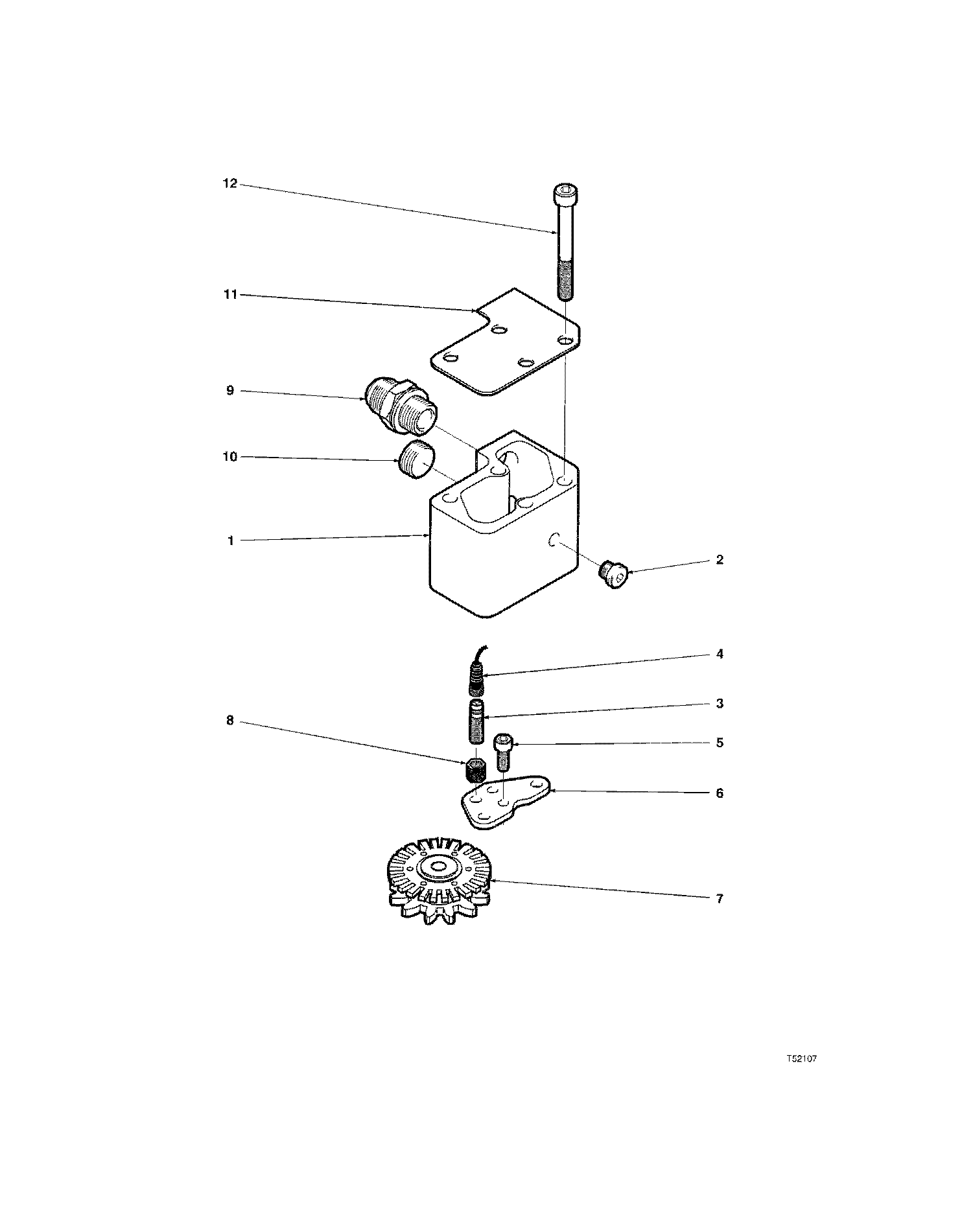

约翰迪尔零件查询790 - ATTACHMENTS SAW CUT CONTROL ( 10BD1007 - ) 4537-012/10 [4537-012/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F434975
|
[1] |
HOUSING -
|
|
| 2. |
F055998
|
[1] |
PLUG -
|
|
| 3. |
F056043
|
[3] |
SENSOR - NPN
|
|
| 4. |
F056042
|
[3] |
CONNECTOR -
|
|
| 5. |
F057428
|
[2] |
SCREW -
|
|
| 6. |
F434976
|
[1] |
PLATE -
|
|
| 6A. |
F434977
|
[1] |
WHEEL - 12 TOOTH COUNT
|
|
| 7. |
F057432
|
[1] |
WHEEL - 24 TOOTH COUNT
|
|
| 8. |
F057758
|
[3] |
NUT -
|
|
| 9. |
841388500
|
[1] |
FITTING -
|
|
| 10. |
F031582
|
[1] |
PLUG -
|
|
| 11. |
F434978
|
[1] |
COVER -
|
|
| 12. |
F122728
|
[4] |
CPSC-SHD M8X1.25X70 -
|
|
