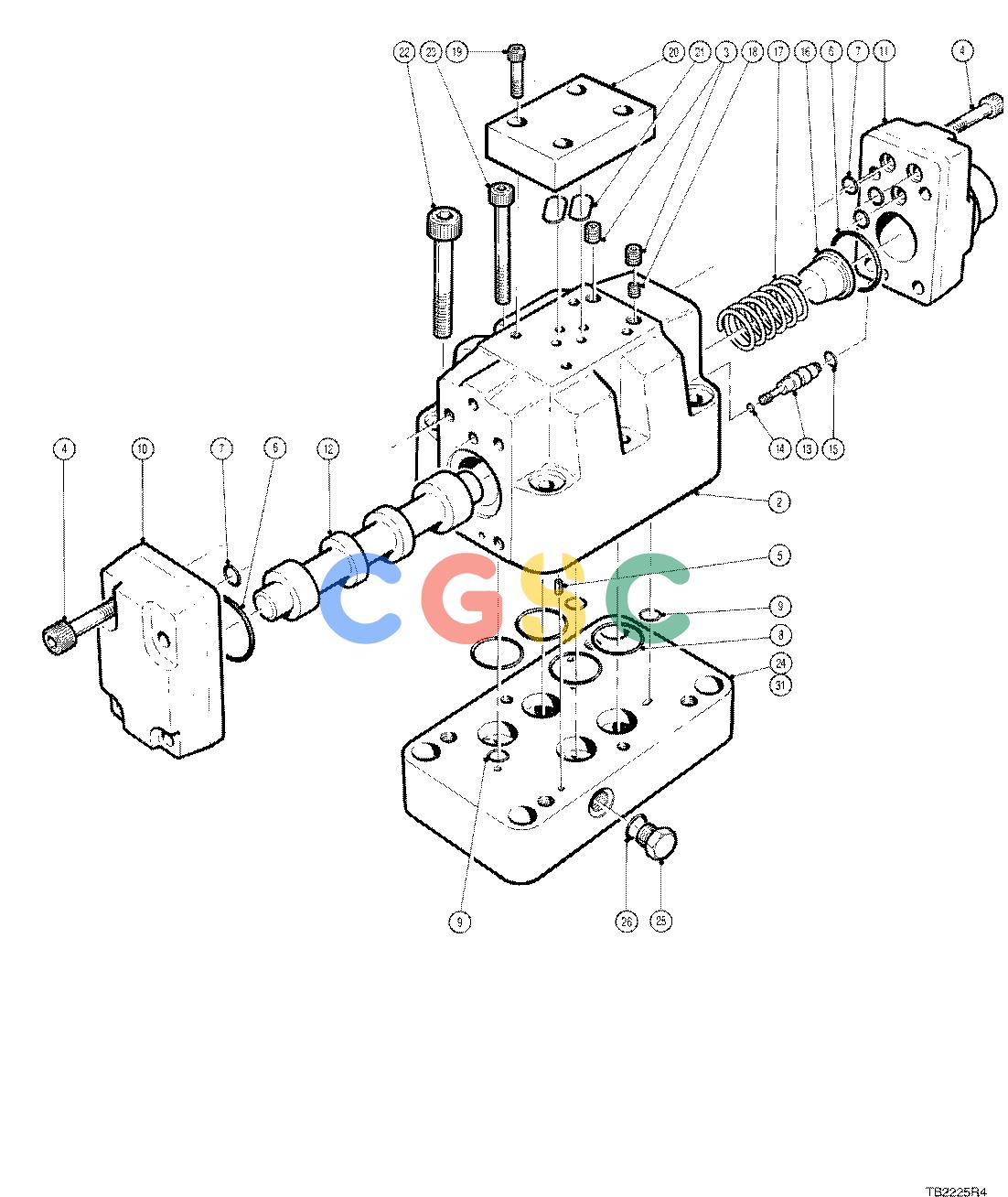

约翰迪尔零件查询C1187 - ATTACHMENTS VALVE CONTROL SAW 20`` HEAD ( 12101 - ) 2481-016/10 [2481-016/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
700592500
|
[1] |
VALVE-CONTROL -
|
|
| 2. |
-------
|
[1] |
Housing
|
|
| 3. |
790025700
|
[2] |
PLUG -
|
|
| 4. |
811351600
|
[8] |
BOLT M8-1.25X40 -
|
|
| 5. |
-------
|
[2] |
PIN - ROLL
|
|
| 6. |
-------
|
[2] |
O-Ring
|
|
| 7. |
-------
|
[4] |
O-Ring
|
|
| 8. |
-------
|
[4] |
O-Ring
|
|
| 9. |
-------
|
[3] |
O-Ring
|
|
| 10. |
-------
|
[1] |
Cover
|
|
| 11. |
-------
|
[1] |
Cover
|
|
| 12. |
-------
|
[1] |
Spool
|
|
| 13. |
790025800
|
[1] |
PLUG -
|
|
| 14. |
-------
|
[1] |
O-Ring
|
|
| 15. |
-------
|
[1] |
O-Ring
|
|
| 16. |
-------
|
[1] |
Retainer
|
|
| 17. |
790025900
|
[1] |
SPRING -
|
|
| 18. |
842683400
|
[1] |
PLUG -
|
|
| 19. |
811468800
|
[4] |
BOLT M5X0.80-16 -
|
|
| 20. |
-------
|
[1] |
Cover
|
|
| 21. |
-------
|
[2] |
O-Ring
|
|
| 22. |
811093300
|
[4] |
BOLT 3/8-16UNCX2-1/4 -
|
|
| 23. |
810595500
|
[2] |
BOLT 1/4-20UNC 2-1/4 -
|
|
| 24. |
790026000
|
[1] |
PLATE -
|
|
| 25. |
810609700
|
[1] |
PLUG -
|
|
| 26. |
810529500
|
[1] |
O-RING -
|
|
| |
842683500
|
|
SEAL KIT -
|
|
