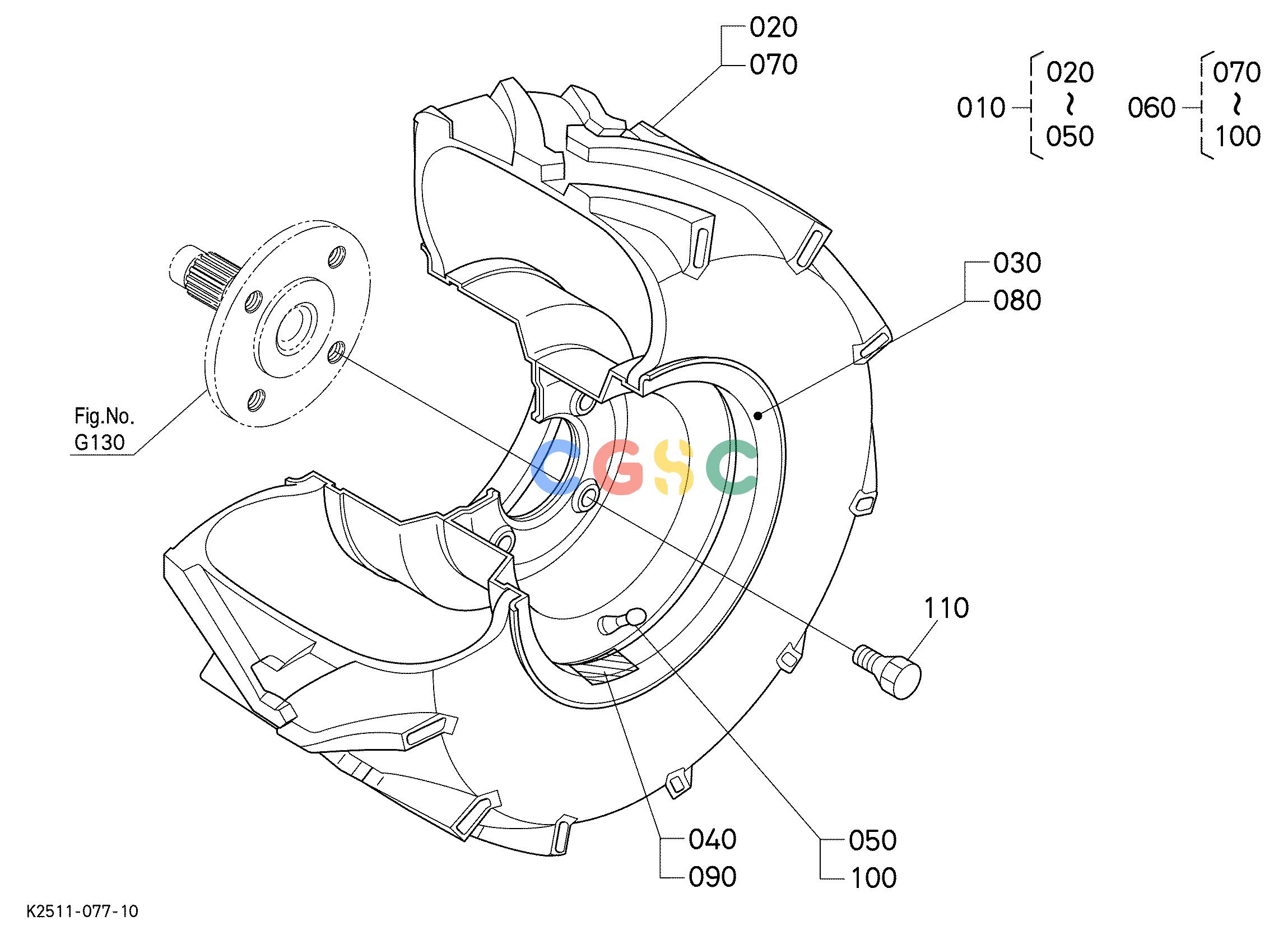

久保田零件查询R10102 FRONT WHEEL (16 7.5-8) FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251118412
|
[1] |
TIRE ASSY,BL16X7.5-8
|
15.8400(lbs); 7.200
|
| 020. |
K251118150
|
[1] |
TIRE,B,16X7.5-8
|
9.9000(lbs); 4.500
|
| 030. |
K251118180
|
[1] |
WHEEL,8X5.375
|
4.8400(lbs); 2.200
|
| 040. |
K251118370
|
[1] |
LABEL,BL,16X7.5-8
|
0.0000(lbs); 0.000
|
| 050. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 060. |
K251118422
|
[1] |
TIRE ASSY,BR16X7.5-8
|
15.4000(lbs); 7.000
|
| 070. |
K251118150
|
[1] |
TIRE,B,16X7.5-8
|
9.9000(lbs); 4.500
|
| 080. |
K251118180
|
[1] |
WHEEL,8X5.375
|
4.8400(lbs); 2.200
|
| 090. |
K251118380
|
[1] |
LABEL,BR,16X7.5-8
|
0.0000(lbs); 0.000
|
| 100. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 110. |
K256118210
|
[8] |
BOLT,WHEEL 9/16
|
0.1320(lbs); 0.060
|
