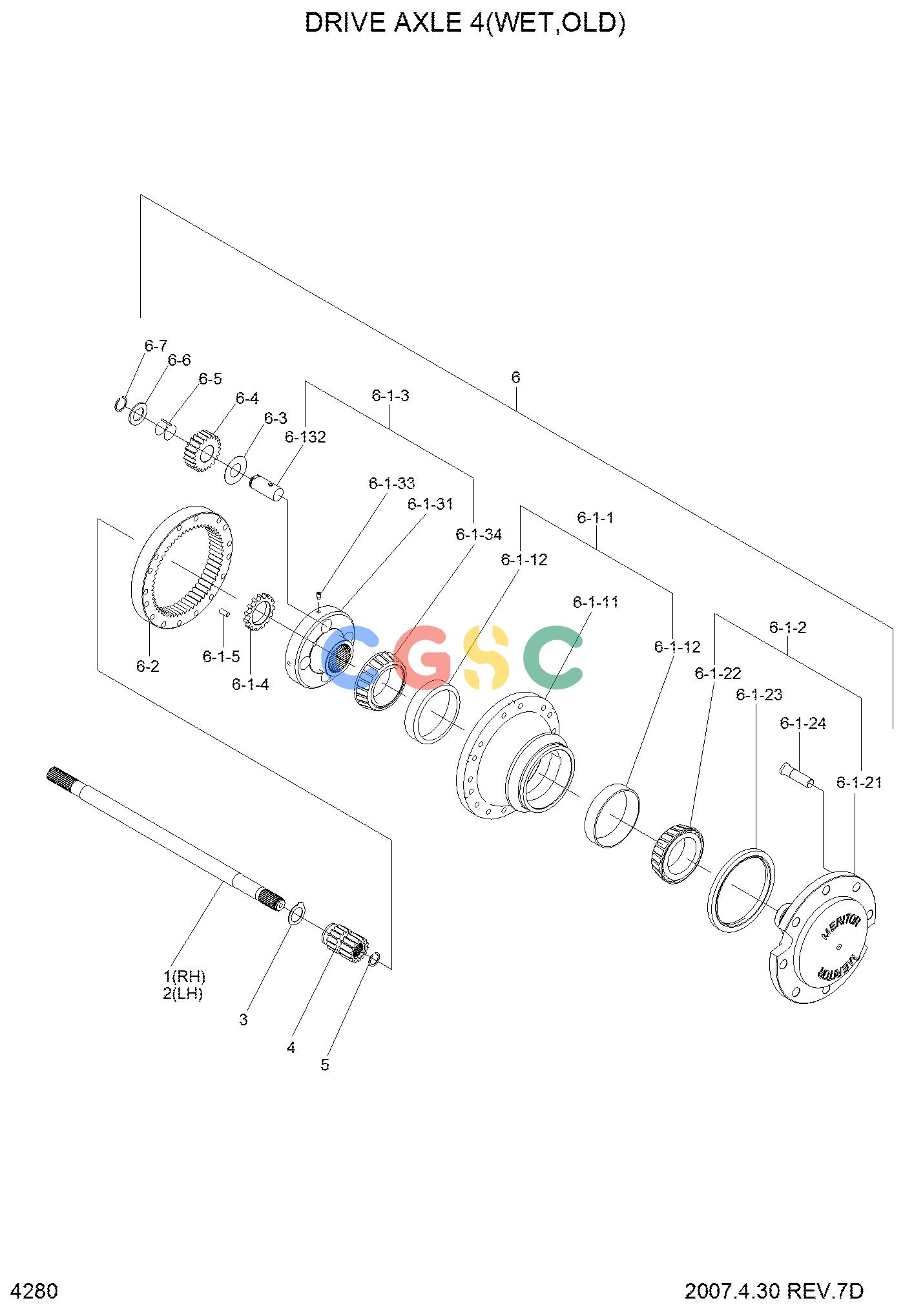

现代零件查询HDF50/70-7 DRIVE AXLE 4(WET,OLD)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
928 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
DRIVE AXLE
|
|
| . |
@
|
[1] |
DRIVE AXLE
|
|
| N1. |
XKBX-00067
|
[1] |
SHAFT-AXLE RH
|
|
| 2. |
XKBX-00068
|
[1] |
SHAFT-AXLE LH
|
|
| 3. |
XKBX-00073
|
[2] |
WASHER-THRUST
|
|
| 4. |
XKBX-00074
|
[2] |
GEAR-PLANETARY SUN
|
|
| 5. |
XKBX-00075
|
[2] |
RING-SANP
|
|
| 6. |
XKBX-00076
|
[2] |
SHAFT-OUT PLANET ASSY
|
|
| 6-1. |
XKBX-00077
|
[2] |
SHAFT-OUTPUT ASSY
|
|
| N6-1-1. |
XKBX-00078
|
[2] |
CASE ASSY-BRG
|
|
| 6-1-11. |
XKBX-00079
|
[2] |
CASE-BRG
|
|
| 6-1-12. |
XKBX-00080
|
[4] |
CUP-BEARING
|
|
| N6-1-2. |
XKBX-00081
|
[2] |
SHAFT OUTPUT ASSY
|
|
| 6-1-21. |
XKBX-00082
|
[2] |
SHAFT OUTPUT
|
|
| 6-1-22. |
XKBX-00083
|
[2] |
CONE-BEAIRNG
|
|
| 6-1-23. |
XKBX-00084
|
[2] |
SEAL ASSY-OIL
|
|
| 6-1-23. |
XKBX-00101
|
[2] |
SEAL ASSY-OIL
|
|
| 6-1-23. |
XKBX-00084
|
[2] |
SEAL ASSY-OIL
|
|
| 6-1-23. |
XKBX-00101
|
[2] |
SEAL ASSY-OIL
|
|
| 6-1-24. |
XKBX-00085
|
[16] |
STUD-WHEEL
|
|
| 6-1-3. |
XKBX-00086
|
[2] |
SPIDER ASSY-PLANETARY
|
|
| 6-1-31. |
XKBX-00087
|
[2] |
SPIDER-PLANETARY GEAR
|
|
| N6-132. |
XKBX-00088
|
[8] |
SHAFT-PINION,PLANETARY
|
|
| 6-1-33. |
XKBX-00089
|
[8] |
SCREW-SET
|
|
| 6-1-34. |
XKBX-00083
|
[2] |
CONE-BEAIRNG
|
|
| 6-1-4. |
XKBX-00090
|
[2] |
NUT-WHEEL BRG
|
|
| 6-1-5. |
XKBX-00091
|
[2] |
SCREW-SPECIAL
|
|
| 6-2. |
XKBX-00092
|
[2] |
GEAR-PLANETARY RING
|
|
| 6-3. |
XKBX-00093
|
[8] |
WASHER-THRUST
|
|
| 6-4. |
XKBX-00094
|
[8] |
PINION-PLANETARY
|
|
| 6-5. |
XKBX-00095
|
[232] |
ROLLER
|
|
| 6-6. |
XKBX-00096
|
[8] |
WASHER-THRUST
|
|
| 6-7. |
XKBX-00097
|
[8] |
RING-SNAP
|
|
