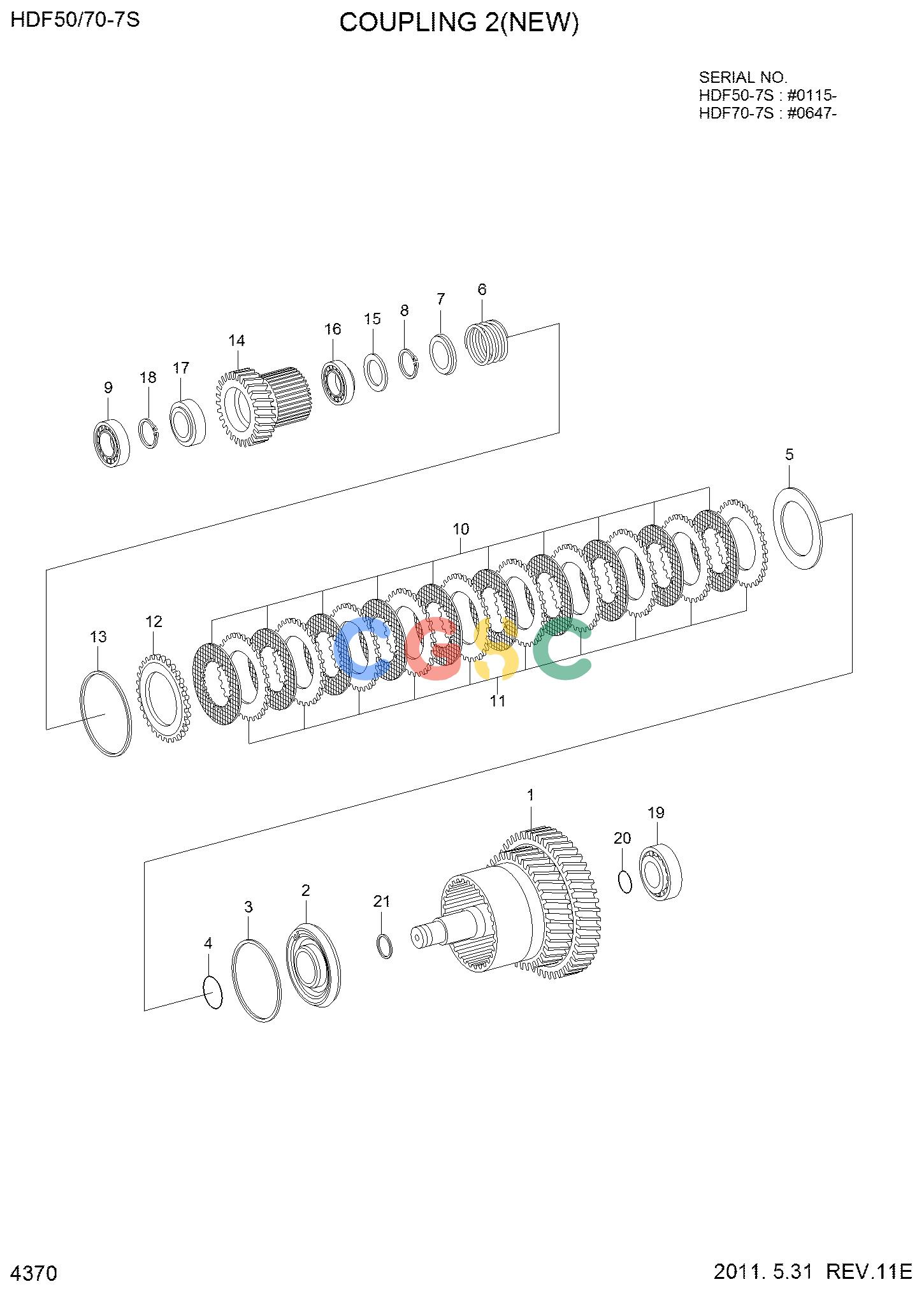

现代零件查询HDF50/70-7 COUPLING 2(NEW, 3 SPEED)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRANSMISSION
|
|
| . |
@
|
[1] |
TRANSMISSION
|
|
| 1. |
ZGAQ-03082
|
[1] |
COUPLING
|
|
| 1. |
ZGAQ-03978
|
[1] |
COUPLING
|
|
| 1. |
ZGAQ-03978
|
[1] |
COUPLING
|
|
| 1. |
ZGAQ-03978
|
[1] |
COUPLING
|
|
| 2. |
ZGAQ-03003
|
[1] |
PISTON
|
|
| 3. |
ZGAQ-03004
|
[1] |
O-RING
|
|
| 4. |
ZGAQ-03122
|
[1] |
O-RING
|
|
| 5. |
ZGAQ-03083
|
[1] |
SPRING-CUP
|
|
| 6. |
ZGAQ-03005
|
[1] |
SPRING-COMP
|
|
| 7. |
ZGAQ-03006
|
[1] |
SPRING-COMP
|
|
| 8. |
ZGAQ-00054
|
[1] |
RING-RETAINING
|
|
| 9. |
ZGAQ-03080
|
[1] |
BEARING-TAPER ROLLER
|
|
| 10. |
ZGAQ-03009
|
[10] |
DISC-CLUTCH, INNER
|
|
| 11. |
ZGAQ-03010
|
[10] |
DISC-CLUTCH, OUTER
|
|
| 12. |
ZGAQ-03011
|
[1] |
SHIM-END
|
|
| 13. |
ZGAQ-03012
|
[1] |
RING-SNAP(2.0)
|
|
| 13. |
ZGAQ-03013
|
[1] |
RING-SNAP(2.5)
|
|
| 13. |
ZGAQ-03123
|
[1] |
RING-SNAP(3.0)
|
|
| 13. |
ZGAQ-03124
|
[1] |
RING-SNAP(3.5)
|
|
| 13. |
ZGAQ-03014
|
[1] |
RING-SNAP
|
|
| 13. |
ZGAQ-03015
|
[1] |
RING-SNAP
|
|
| 13. |
ZGAQ-03016
|
[1] |
RING-SNAP(2.25)
|
|
| 14. |
ZGAQ-03084
|
[1] |
CARRIER-INNER DISC
|
|
| 15. |
ZGAQ-03077
|
[1] |
DISC-RUNNING
|
|
| 16. |
ZGAQ-03085
|
[1] |
TAPER ROLLER BEARING
|
|
| 17. |
ZGAQ-03086
|
[1] |
TAPER ROLLER BEARING
|
|
| 18. |
ZGAQ-03087
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03088
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03089
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03090
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03091
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03092
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03093
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03094
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03095
|
[1] |
RETAINING RING
|
|
| 18. |
ZGAQ-03096
|
[1] |
RETAINING RING
|
|
| 19. |
ZGAQ-03097
|
[1] |
BEARING-TAPER ROLLER
|
|
| 20. |
ZGAQ-03081
|
[2] |
RING-PISTON
|
|
| 21. |
ZGAQ-03127
|
[2] |
RING-PISTON
|
|
