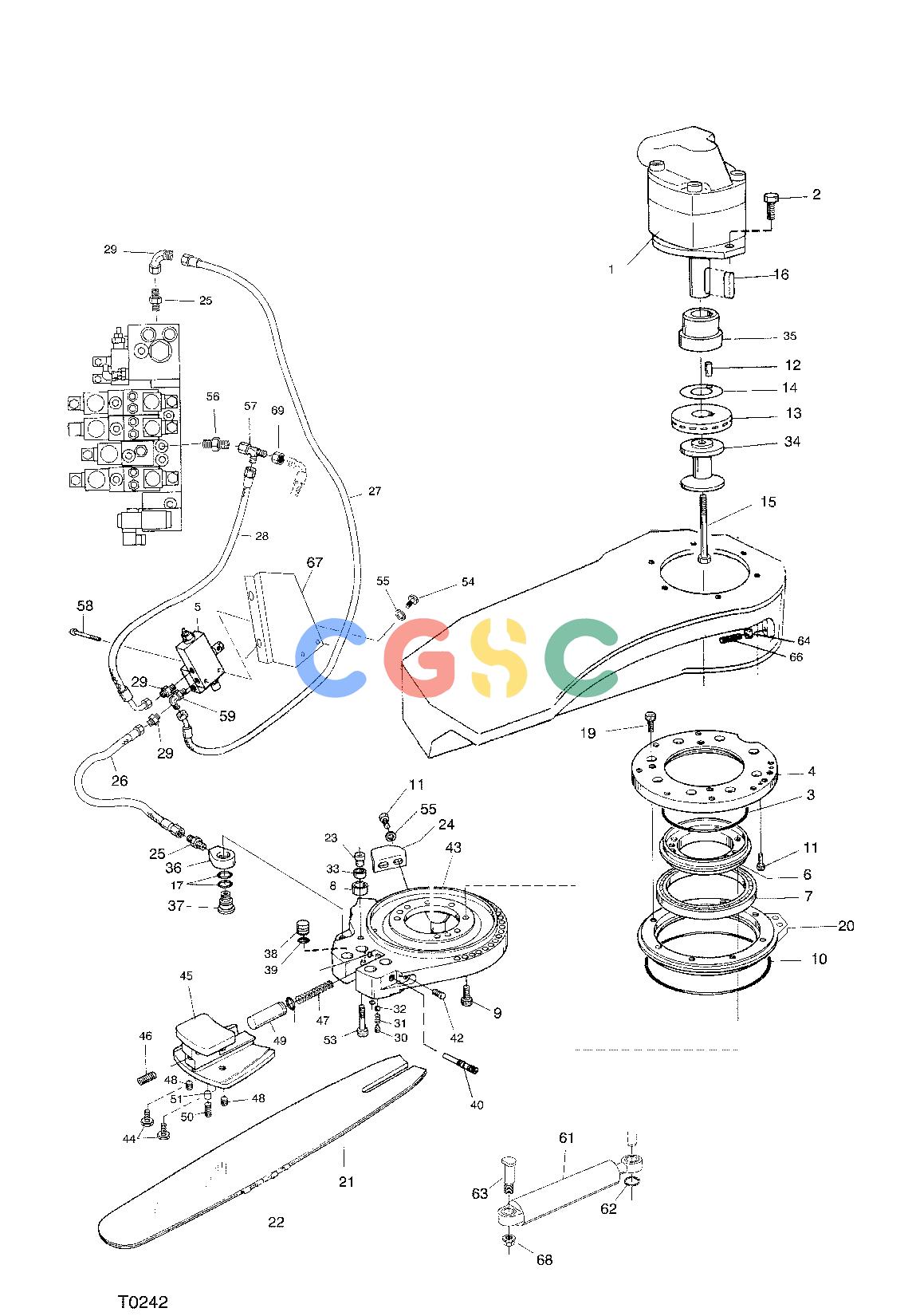

约翰迪尔零件查询J653EF - ATTACHMENTS SAW 762B ( O275 - ) 4535-013/12 [4535-013/12]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
427 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F039585
|
[1] |
CHAIN TIGHTENER
|
|
| 1. |
F005473
|
[1] |
Motor
|
|
| 2. |
F003542
|
[2] |
BOLT, M12X1.75
|
|
| 3. |
F005642
|
[1] |
O-Ring
|
|
| 4. |
F009837
|
[1] |
Holder
|
|
| 5. |
F034567
|
|
Kit
|
|
| 6. |
F041449
|
[1] |
Ring
|
|
| 7. |
F005571
|
[1] |
Ball Bearing
|
|
| 8. |
F034561
|
[1] |
CIRCLIP
|
|
| 9. |
F008646
|
[8] |
HEX.SOCKETHEAD SCREW
|
|
| 10. |
F013915
|
[1] |
O-Ring
|
|
| 11. |
F003411
|
[10] |
Bolt
|
|
| 12. |
F011196
|
[1] |
Pin
|
|
| 13. |
F020180
|
[1] |
SPROCKET WHEEL
|
|
| 14. |
F020181
|
[1] |
Shim
|
|
| 15. |
F005572
|
[1] |
Bolt
|
|
| 16. |
F011194
|
[1] |
Key
|
|
| 19. |
F008572
|
[8] |
HEX.SOCKETHEAD SCREW
|
|
| 20. |
F009841
|
[1] |
BEARING RING
|
|
| 21. |
F002933
|
[1] |
Bar
|
|
| 22. |
F005519
|
[1] |
Saw Chain
|
|
| 23. |
F034562
|
[1] |
Holder
|
|
| 24. |
F009836
|
[1] |
END PIECE
|
|
| 25. |
F005053
|
[1] |
CONNECTION
|
|
| 26. |
F038335
|
[1] |
HOSE ASSY - 850MM LG
|
|
| 27. |
F042699
|
[1] |
HOSE - 1400MM LG
|
|
| 28. |
F038337
|
[1] |
HOSE ASSY - 930MM LG
|
|
| 29. |
F005057
|
[3] |
CONNECTION
|
|
| 30. |
F009848
|
[1] |
Plug
|
|
| 31. |
F013895
|
[1] |
Spring
|
|
| 32. |
F013607
|
[1] |
STEEL BALL
|
|
| 33. |
F038415
|
[1] |
CIRCLIP
|
|
| 34. |
F038426
|
[1] |
CHAIN CATCHER
|
|
| 35. |
F038427
|
[1] |
CARRIER
|
|
| 36. |
F034559
|
[1] |
BANJO
|
|
| 37. |
F034560
|
[1] |
BANJO SCREW
|
|
| 38. |
F034554
|
[1] |
LOCKING PIECE
|
|
| 39. |
F004573
|
[3] |
O-Ring
|
|
| 40. |
F034556
|
[1] |
NIPPLE
|
|
| 41. |
F004573
|
[1] |
O-Ring
|
|
| 42. |
F034551
|
[1] |
Screw
|
|
| 43. |
F038416
|
[1] |
Bracket
|
|
| 44. |
F038417
|
[2] |
Screw
|
|
| 45. |
F038418
|
[1] |
Holder
|
|
| 46. |
F020022
|
[1] |
STOP SCREW
|
|
| 47. |
F034553
|
[1] |
Spring
|
|
| 48. |
F026206
|
[2] |
STOP SCREW
|
|
| 49. |
F034552
|
[1] |
Piston
|
|
| 50. |
F030750
|
[1] |
STOP SCREW
|
|
| 51. |
F034558
|
[1] |
LOCKING PIECE
|
|
| 52. |
F018111
|
[1] |
Plug
|
|
| 53. |
F010749
|
[1] |
Bolt
|
|
| 54. |
F003525
|
[2] |
BOLT, M8X1.25
|
|
| 55. |
F008262
|
[2] |
Washer
|
|
| 56. |
F005055
|
[5] |
CONNECTION
|
|
| 57. |
F023535
|
[1] |
L-CONNECTION
|
|
| 58. |
F008751
|
[2] |
HEX.SOCKETHEAD SCREW - TO S/N H-349
|
|
| 58A. |
F040891
|
[2] |
SCREW - FROM S/N H350
|
|
| 59. |
F024599
|
[1] |
ELBOW NIPPLE
|
|
| 61. |
F011197
|
[1] |
Cylinder
|
|
| 62. |
F003357
|
[1] |
CIRCLIP
|
|
| 63. |
F014614
|
[1] |
Pin
|
|
| 64. |
F003564
|
[2] |
NUT, M10X1.5
|
|
| 65. |
F012712
|
[1] |
Screw
|
|
| 66. |
F024428
|
[1] |
STOP SCREW
|
|
| 67. |
F037298
|
[1] |
Bracket
|
|
| 68. |
F011198
|
[1] |
Nut
|
|
| 69. |
F039981
|
[1] |
Nut
|
|
