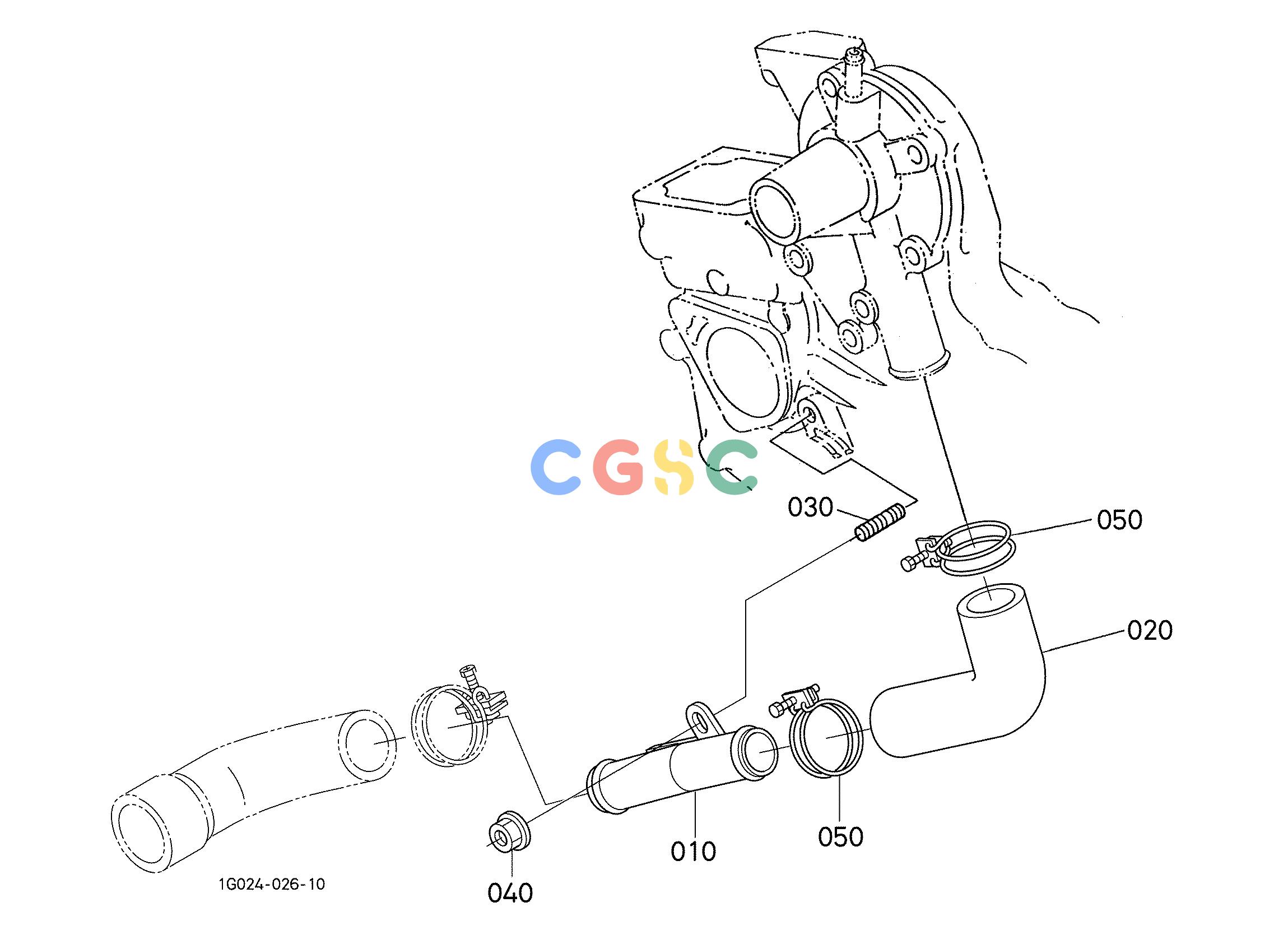

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1584172860 | [1] | PIPE WATER | 0.1980(lbs); 0.090 |
| 020. | 1680572870 | [1] | HOSE WATER | 0.0814(lbs); 0.037 |
| 030. | 1584191510 | [1] | STUD | 0.0154(lbs); 0.007 |
| 040. | 0275150060 | [1] | NUT FLANGE | 0.0110(lbs); 0.005 |
| 050. | 0931889030 | [2] | CLAMP HOSE | ; <=YS8195 0.0440(lbs); 0.020 |
| 050. | 1584172960 | [2] | BAND PIPE | ; =>YU0001 0.0550(lbs); 0.025 |
