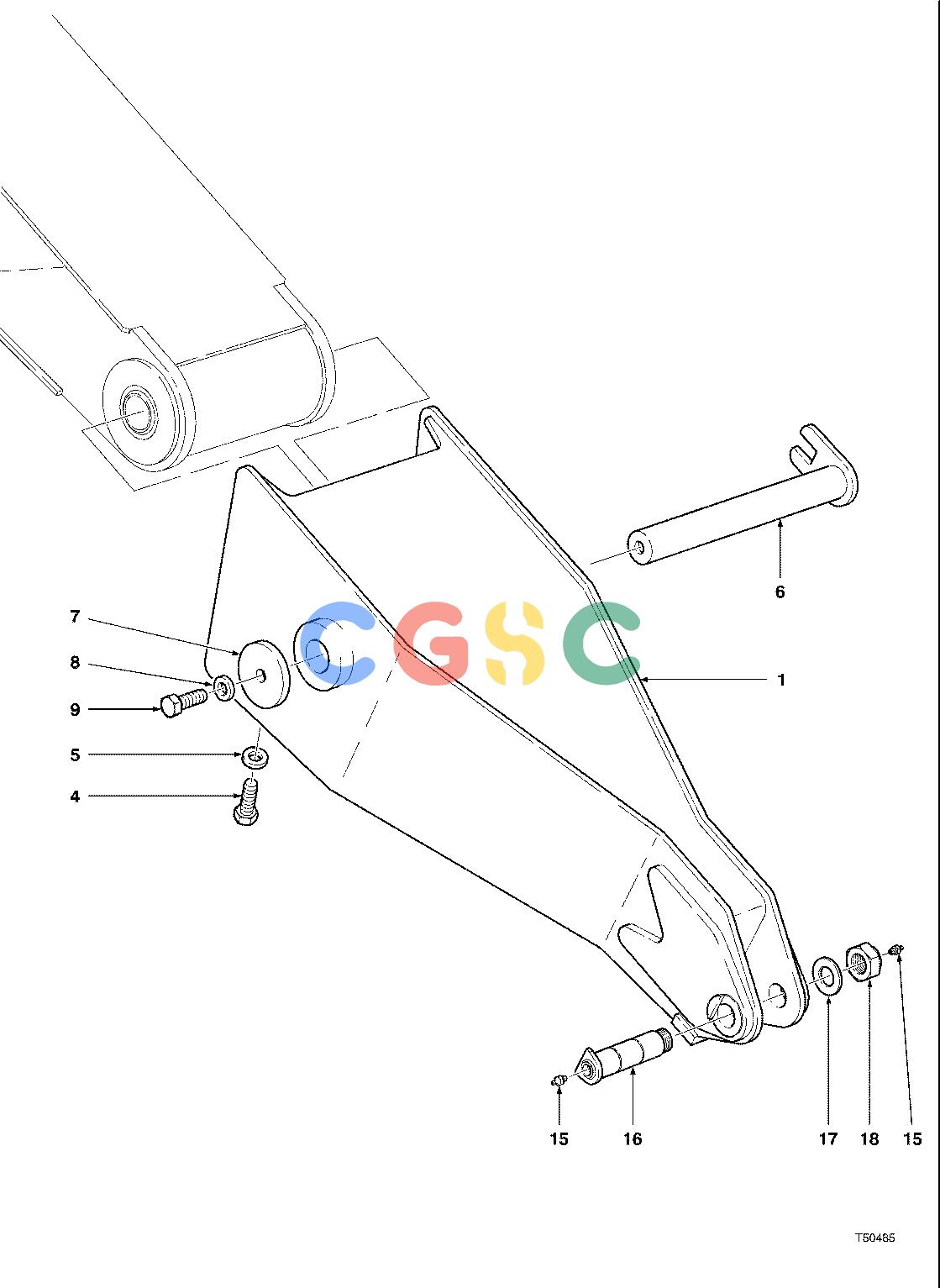

约翰迪尔零件查询T2600F - ATTACHMENTS BOOM ADAPTER 762B FIXED ( 1305 - ) 4542-037/10 [4542-037/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| A. |
701308000
|
|
KIT-BOOM EXT
|
|
| 1. |
|
[1] |
ADAPTOR
|
|
| 4. |
810084500
|
[3] |
BOLT 3/4-10UNCX2-1/4
|
|
| 5. |
810002100
|
[3] |
WASHER 3/4
|
|
| 6. |
701269700
|
[1] |
Pin
|
|
| 7. |
701302800
|
[1] |
Plate
|
|
| 8. |
810183200
|
[1] |
WASHER 7/8
|
|
| 9. |
810085700
|
[1] |
BOLT 7/8-9UNC 3
|
|
| |
700845400
|
[1] |
Pin
|
|
| 15. |
842099900
|
[2] |
GREASE FITTING
|
|
| 16. |
842774500
|
[1] |
Shaft
|
|
| 17. |
842774600
|
[1] |
Washer
|
|
| 18. |
841410200
|
[1] |
Nut
|
|
