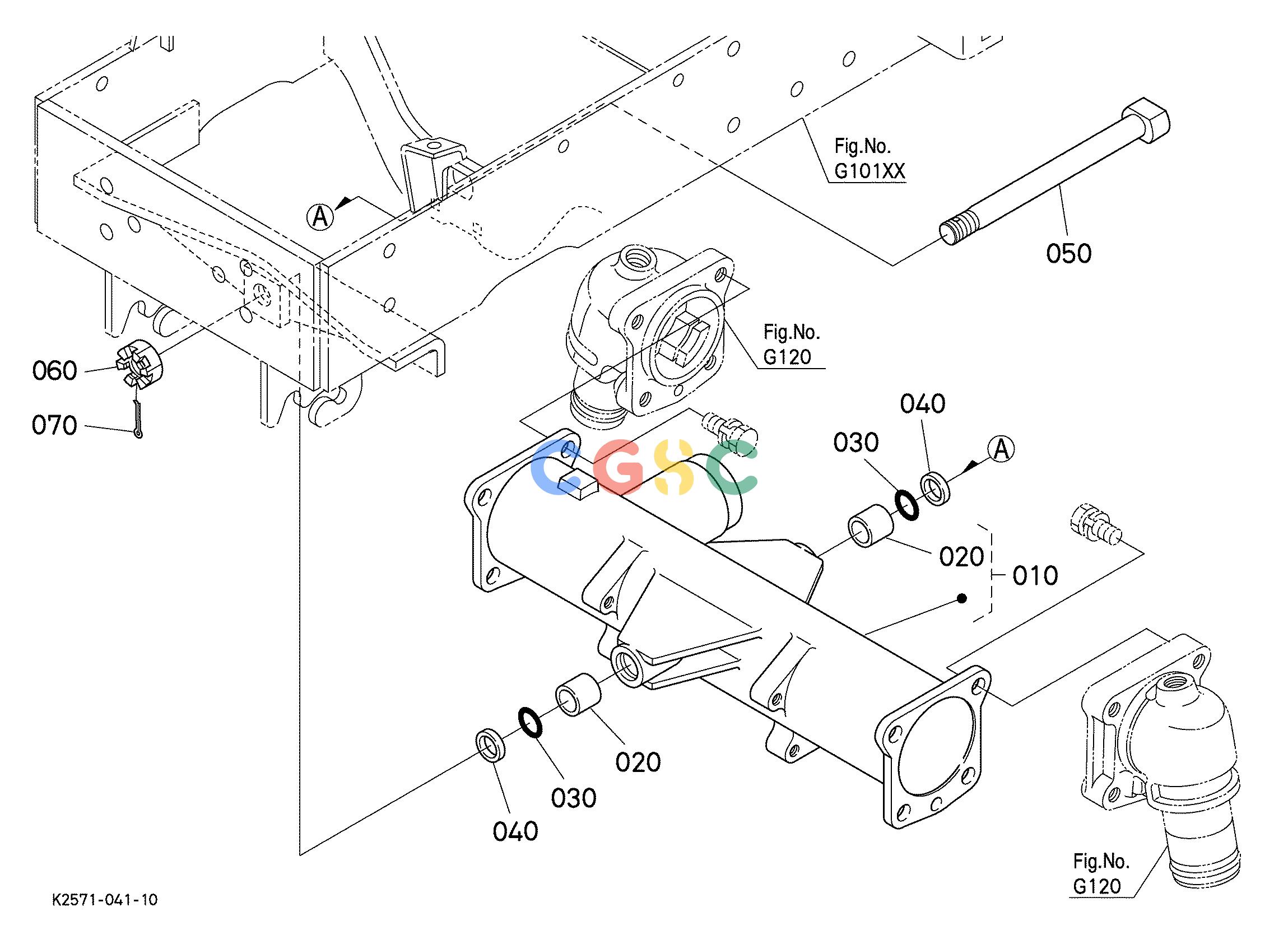

久保田零件查询G11000 FRONT DIFFERENTIAL CASE FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256190200
|
[1] |
ASSY CASE FRONT
|
22.2200(lbs); 10.100
|
| 020. |
0851102025
|
[2] |
BUSH
|
0.0440(lbs); 0.020
|
| 030. |
6781737190
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
K256115250
|
[2] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 050. |
K256115133
|
[1] |
SHAFT CENTER
|
1.4520(lbs); 0.660
|
| 060. |
K256115190
|
[1] |
NUT
|
0.0440(lbs); 0.020
|
| 070. |
7559953174
|
[1] |
PIN COTTER
|
0.0066(lbs); 0.003
|
| 070. |
7559953195
|
[1] |
PIN COTTER
|
0.0066(lbs); 0.003
|
