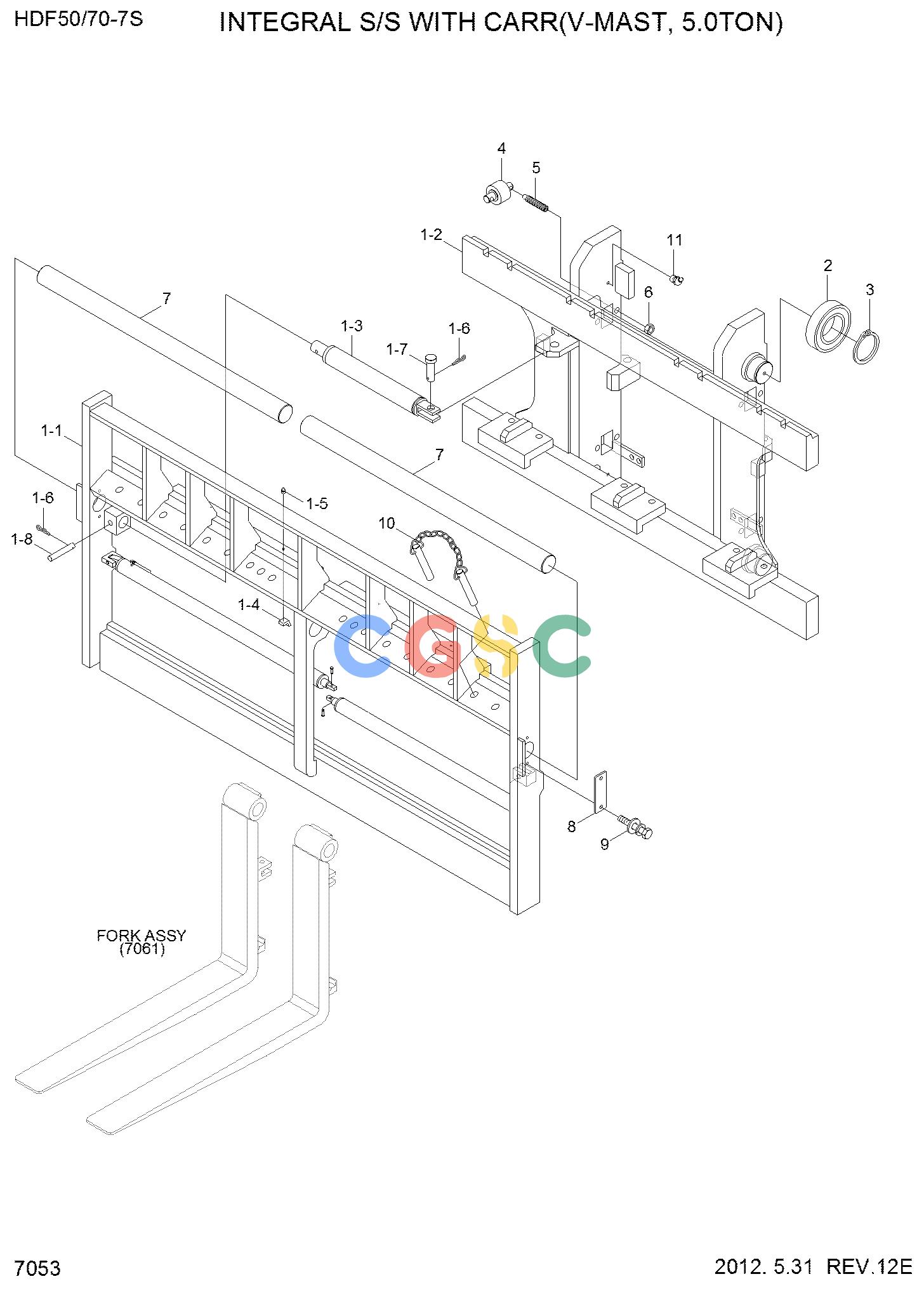

现代零件查询HDF50/70-7S INTEGRAL S/S WITH CARR(V-MAST,5.0TON)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N . |
67FQ-00010
|
[1] |
INTEGRAL S/S WITH CARR&BACK
|
|
| N . |
67FQ-00020
|
[1] |
INTEGRAL S/S WITH CARR&BACK
|
|
| 1. |
67FQ-00110
|
[1] |
INTEGRAL SIDE SHIFT ASSY
|
|
| 1. |
67FQ-00120
|
[1] |
INTEGRAL SIDE SHIFT ASSY
|
|
| 1-1. |
66FQ-00200
|
[1] |
CARRIAGE WA
|
|
| 1-1. |
66FQ-00210
|
[1] |
CARRIAGE WA
|
|
| 1-14. |
66FQ-00450
|
[1] |
FITTING
|
|
| 1-2. |
67FQ-00310
|
[1] |
SIDE SHIFT WA
|
|
| 1-2. |
67FQ-00320
|
[1] |
SIDE SHIFT WA
|
|
| 1-3. |
66FQ-00300
|
[1] |
CYLINDER
|
|
| 1-3. |
66FQ-00310
|
[1] |
CYLINDER
|
|
| 1-4. |
JKSS-D4-0107P
|
[4] |
SLIDING PAD-UPPER
|
|
| 1-5. |
JKGN-0000
|
[4] |
GREASE NIPPLE
|
|
| 1-6. |
JKRP-0013
|
[2] |
R-PIN
|
|
| 1-7. |
JKSS-D4-0301P
|
[1] |
PIN-CYLINDER BASE
|
|
| 1-8. |
JKSS-D4-0302P
|
[1] |
PIN-CYLINDER ROD
|
|
| 2. |
61FF-18600
|
[4] |
LOAD R/BRG ASSY(164.5)
|
|
| 2. |
61FF-18610
|
[4] |
LOAD R/BRG ASSY(164.0)
|
|
| 2. |
61FF-18620
|
[4] |
LOAD R/BRG ASSY(165.0)
|
|
| 3. |
S601-075004
|
[4] |
RING-RETAINING
|
|
| 4. |
63FF-18300
|
[4] |
SIDE ROLLER ASSY
|
|
| 5. |
61FF-18810-DAC
|
[8] |
ADJUSTABLE SCREW
|
|
| 6. |
S205-201006
|
[8] |
NUT-HEX
|
|
| 7. |
61FF-18011
|
[2] |
HANGER BAR-FORK
|
|
| 7. |
61FQ-18121
|
[2] |
HANGER BAR-FORK
|
|
| 8. |
61FQ-25100
|
[2] |
COVER
|
|
| 9. |
S037-123526
|
[4] |
BOLT-W/WASHER
|
|
| 10. |
61FC-28051
|
[2] |
FORK RETAINING ASSY
|
|
| 11. |
S652-810008
|
[4] |
NIPPLE-GREASE
|
|
