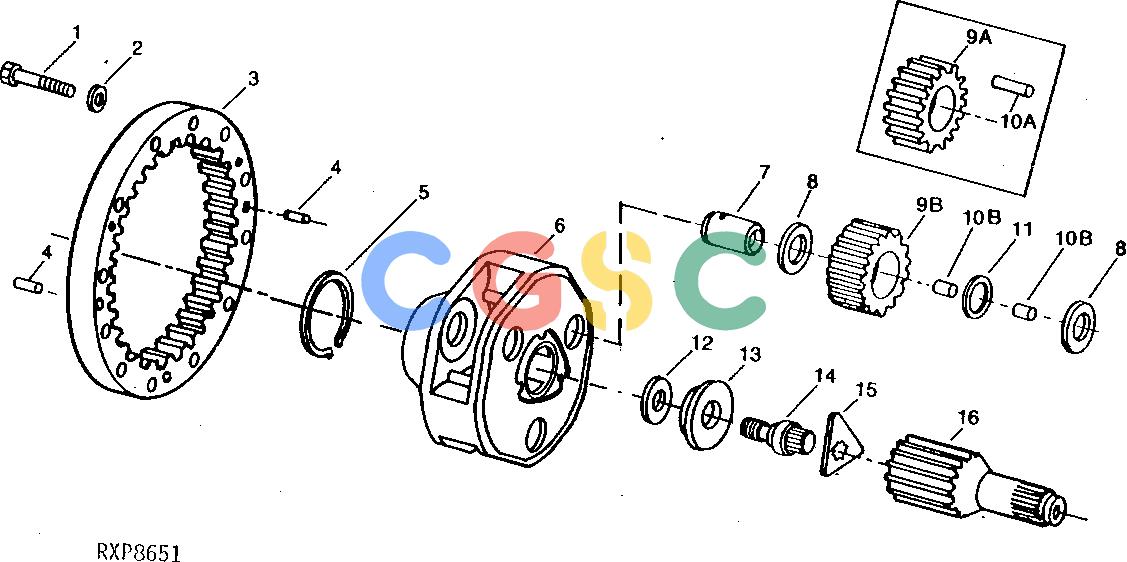

约翰迪尔零件查询1200 - AXLE RE35692 INBOARD PLANETARY FINAL DRIVE (OC-4)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R84557
|
[12] |
Cap Screw
|
|
| 2. |
R73290
|
[12] |
Washer
|
|
| 3. |
R93933
|
[1] |
Gear
|
|
| 4. |
R54380
|
[4] |
Dowel Pin
|
|
| 5. |
R97590
|
[1] |
Snap Ring
|
|
| 6. |
R93932
|
[1] |
Planet Pinion Carrier
|
|
| 6. |
R116811
|
[1] |
Planet Pinion Carrier
|
|
| 7. |
R97998
|
[3] |
Pinion Shaft
|
|
| 8. |
R90043
|
[6] |
Thrust Washer
|
|
| 8. |
R112079
|
[6] |
Thrust Washer
|
|
| 9A. |
R93934
|
[3] |
Planet Pinion
|
|
| 9B. |
R116822
|
[3] |
Planet Pinion
|
|
| 10A. |
R61033
|
[72] |
Needle Roller
|
|
| 10B. |
R109082
|
[144] |
Needle Roller
|
|
| 11. |
R109083
|
[3] |
Washer
|
|
| 12. |
R52389
|
[1] |
Shim
|
|
| 13. |
R97591
|
[1] |
Washer
|
|
| 14. |
R81162
|
[1] |
Bolt
|
|
| 15. |
R97589
|
[1] |
Lock Plate
|
|
| 16. |
R93935
|
[1] |
Shaft
|
|
| ... |
T43514
|
[1] |
Gasket
|
|
