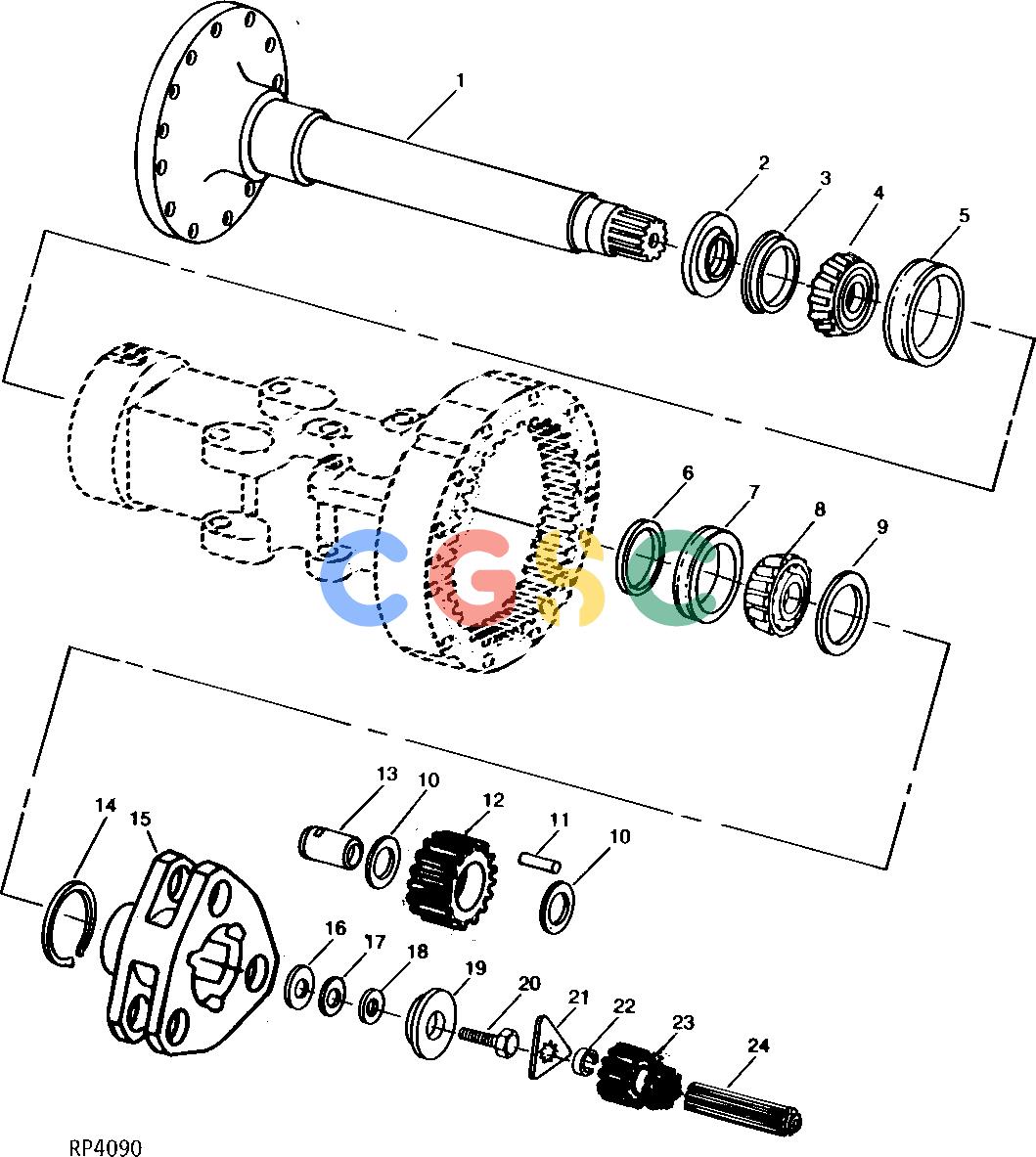

约翰迪尔零件查询1200 - AXLE RE37213,RE37191 PLANETARY AND AXLEEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R74992
|
[1] |
Spindle
|
|
| 2. |
AR57103
|
[1] |
Seal
|
|
| 3. |
R52015
|
[1] |
Round Retainer
|
|
| 4. |
JD9069
|
[1] |
Bearing Cone
|
|
| 5. |
JD9127
|
[1] |
Bearing Cup
|
|
| 6. |
AR75527
|
[1] |
Seal
|
|
| 7. |
JD8272
|
[1] |
Bearing Cup
|
|
| 8. |
JD8989
|
[1] |
Bearing Cone
|
|
| 9. |
R52389
|
[1] |
Shim
|
|
| 10. |
R33022
|
[6] |
Thrust Washer
|
|
| 11. |
T21418
|
[99] |
Pin
|
|
| 12. |
R84686
|
[3] |
Planet Pinion
|
|
| 13. |
R85532
|
[3] |
Shaft
|
|
| 14. |
R84788
|
[1] |
Snap Ring
|
|
| 15. |
R84732
|
[1] |
Planet Pinion Carrier
|
|
| 16. |
R61461
|
[AR] |
Shim
|
|
| 16. |
R59439
|
[AR] |
Shim
|
|
| 16. |
R59440
|
[AR] |
Shim
|
|
| 17. |
F2380R
|
[1] |
Washer
|
|
| 18. |
R52389
|
[1] |
Shim
|
|
| 19. |
R82921
|
[1] |
Washer
|
|
| 20. |
R82175
|
[1] |
Cap Screw
|
|
| 21. |
R84787
|
[1] |
Lock Plate
|
|
| 22. |
R36664
|
[1] |
Snap Ring
|
|
| 23. |
R84687
|
[1] |
Pinion
|
|
| 24. |
R73013
|
[1] |
Drive Shaft
|
|
