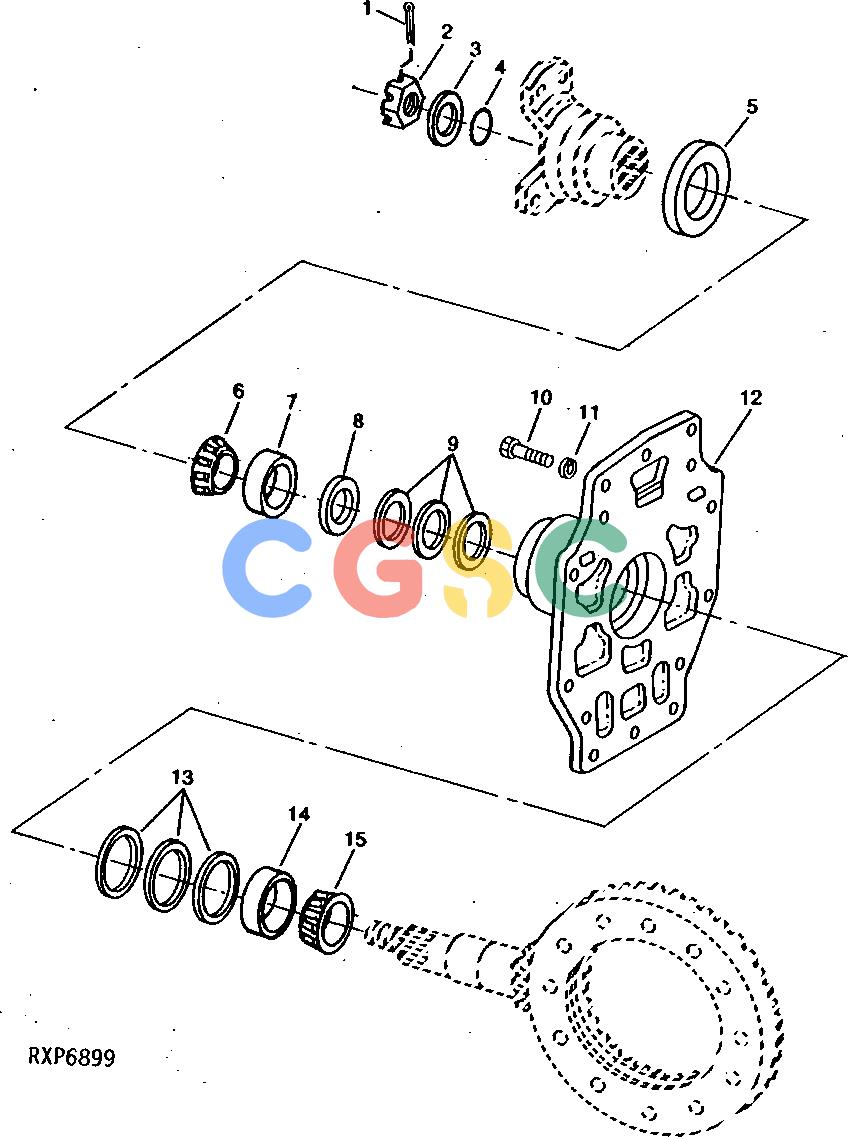

约翰迪尔零件查询1200 - AXLE RE37947 INPUT HOUSING (OC-1)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11M7085
|
[1] |
Cotter Pin
|
|
| 2. |
R47598
|
[1] |
Nut
|
|
| 3. |
R48629
|
[AR] |
Spacer
|
|
| 3. |
R48630
|
[AR] |
Spacer
|
|
| 3. |
R48631
|
[AR] |
Spacer
|
|
| 4. |
R44181
|
[1] |
O-Ring
|
|
| 5. |
AR79581
|
[1] |
Seal
|
|
| 6. |
JD8970
|
[1] |
Bearing Cone
|
|
| 7. |
JD8264
|
[1] |
Bearing Cup
|
|
| 8. |
R75639
|
[1] |
Washer
|
|
| 9. |
R47593
|
[AR] |
Shim
|
|
| 9. |
R47594
|
[AR] |
Shim
|
|
| 9. |
R47595
|
[AR] |
Shim
|
|
| 9. |
R47596
|
[AR] |
Shim
|
|
| 10. |
19M7409
|
[14] |
Cap Screw
|
|
| 10. |
19M7409
|
[16] |
Cap Screw
|
|
| 10. |
19M8295
|
[2] |
Cap Screw
|
|
| 11. |
R135543
|
[16] |
Washer
|
|
| 11. |
R135543
|
[18] |
Washer
|
|
| 12. |
R90711
|
[1] |
Cover
|
|
| 12. |
R105501
|
[1] |
Cover
|
|
| 13. |
R81362
|
[AR] |
Shim
|
|
| 13. |
R81363
|
[AR] |
Shim
|
|
| 13. |
R81364
|
[AR] |
Shim
|
|
| 14. |
JD10313
|
[1] |
Bearing Cone
|
|
| 15. |
JD10372
|
[1] |
Bearing Cup
|
|
| ... |
UN7189
|
[1] |
Sealant
|
|
