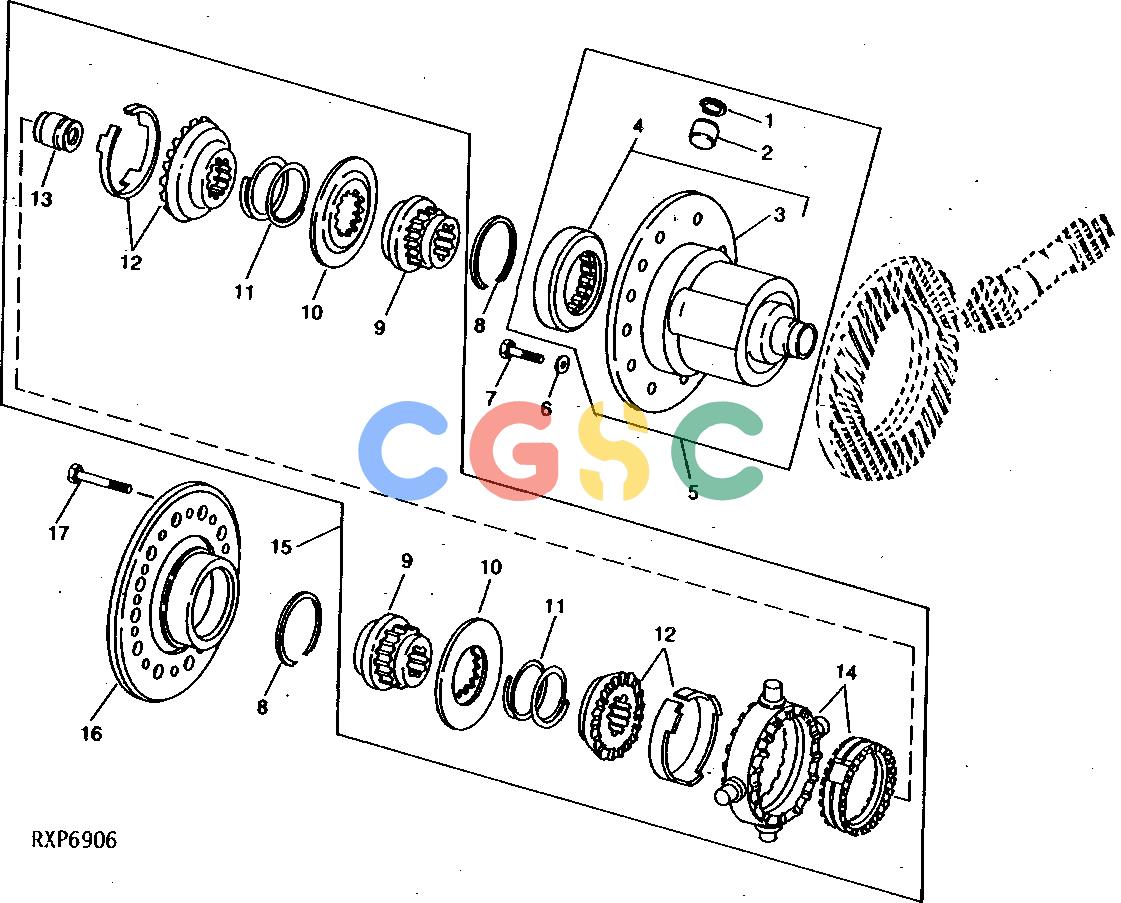

约翰迪尔零件查询1200 - AXLE RE37958,RE38313 STANDARD DIFFERENTIAL (OC-2)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R51112
|
[3] |
Snap Ring
|
|
| 2. |
R98595
|
[3] |
Pin
|
|
| 3. |
R92650
|
[1] |
Housing
|
|
| 4. |
RE37337
|
[1] |
Housing
|
|
| 5. |
RE37768
|
[1] |
Housing
|
|
| 6. |
R85226
|
[12] |
Washer
|
|
| 7. |
19H3718
|
[12] |
Cap Screw
|
|
| 8. |
R98619
|
[2] |
Snap Ring
|
|
| 9. |
R94589
|
[2] |
Gear
|
|
| 10. |
R60044
|
[2] |
Guide
|
|
| 11. |
R60045
|
[2] |
Spring
|
|
| 12. |
RE32167
|
[2] |
Clutch
|
|
| 13. |
R94590
|
[1] |
Sleeve
|
|
| 14. |
RE38076
|
[1] |
Spider
|
|
| 15. |
RE37969
|
[1] |
Differential
|
|
| 16. |
R94631
|
[1] |
Cover
|
|
| 17. |
R112884
|
[12] |
Cap Screw
|
|
| ... |
R68437
|
[4] |
Plug
|
|
| ... |
400R
|
[2] |
Ball
|
|
