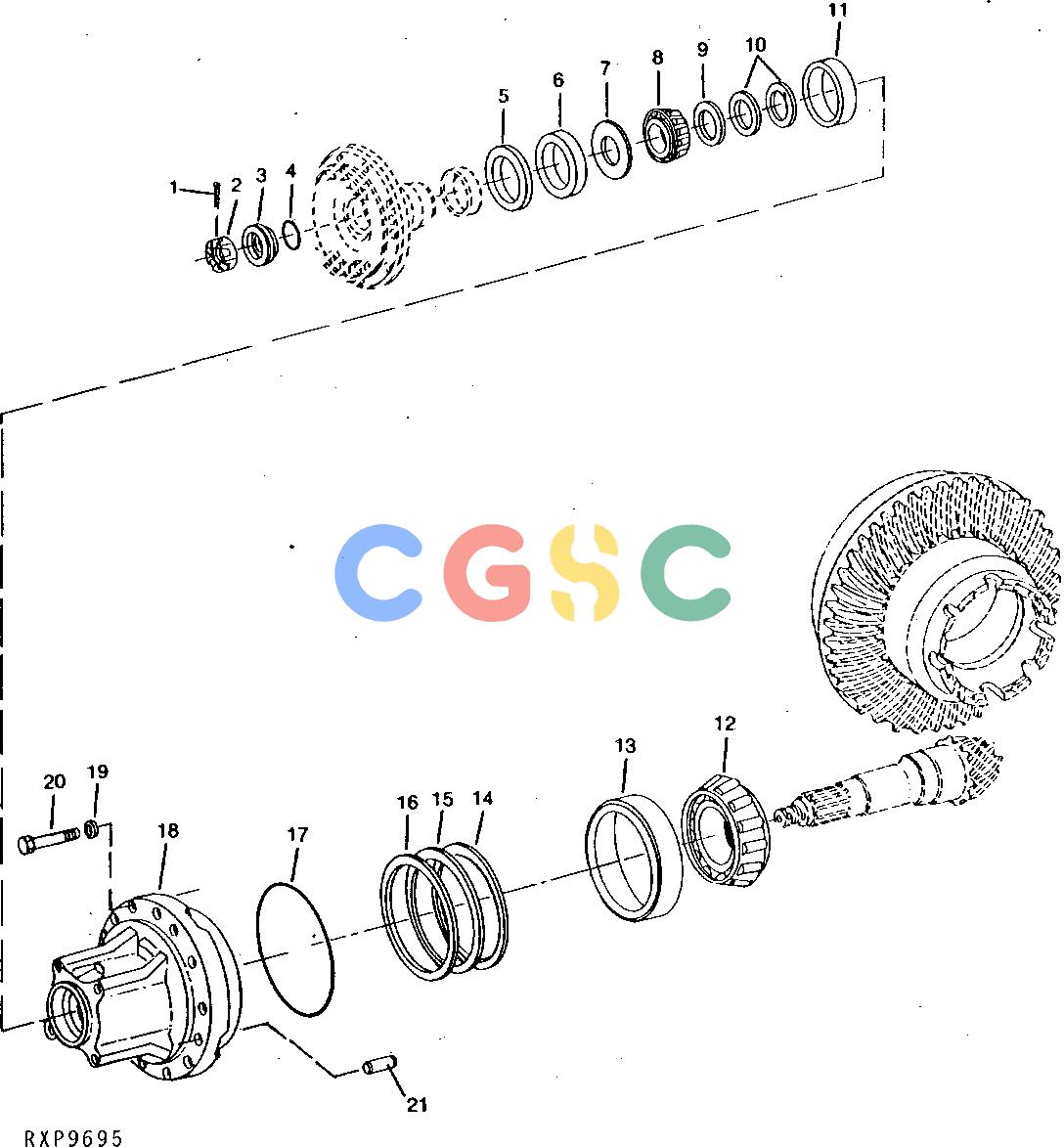

约翰迪尔零件查询1200 - AXLE RE38193 INPUT HOUSINGEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11M7085
|
[1] |
Cotter Pin
|
|
| 2. |
R47598
|
[1] |
Nut
|
|
| 3. |
R48629
|
[AR] |
Spacer
|
|
| 3. |
R48630
|
[AR] |
Spacer
|
|
| 3. |
R48631
|
[AR] |
Spacer
|
|
| 4. |
R44181
|
[1] |
O-Ring
|
|
| 5. |
AR46102
|
[1] |
Seal
|
|
| 6. |
AR105724
|
[1] |
Seal
|
|
| 7. |
R44723
|
[1] |
Washer
|
|
| 8. |
JD9036
|
[1] |
Bearing Cone
|
|
| 9. |
R75639
|
[1] |
Washer
|
|
| 10. |
R47593
|
[AR] |
Shim
|
|
| 10. |
R47594
|
[AR] |
Shim
|
|
| 10. |
R47595
|
[AR] |
Shim
|
|
| 10. |
R47596
|
[AR] |
Shim
|
|
| 11. |
JD8286
|
[1] |
Bearing Cup
|
|
| 12. |
JD9035
|
[1] |
Bearing Cone
|
|
| 13. |
JD9100
|
[1] |
Bearing Cup
|
|
| 14. |
R44166
|
[AR] |
Shim
|
|
| 15. |
R44167
|
[AR] |
Shim
|
|
| 16. |
R44168
|
[AR] |
Shim
|
|
| 17. |
R63226
|
[1] |
Ring
|
|
| 18. |
R65070
|
[1] |
Bearing Housing W/O Bearing
|
|
| 19. |
R135543
|
[6] |
Washer
|
|
| 20. |
19H2599
|
[6] |
Cap Screw
|
|
| 21. |
R26616
|
[1] |
Dowel Pin
|
|
| ... |
T47250
|
[2] |
Spacer
|
|
