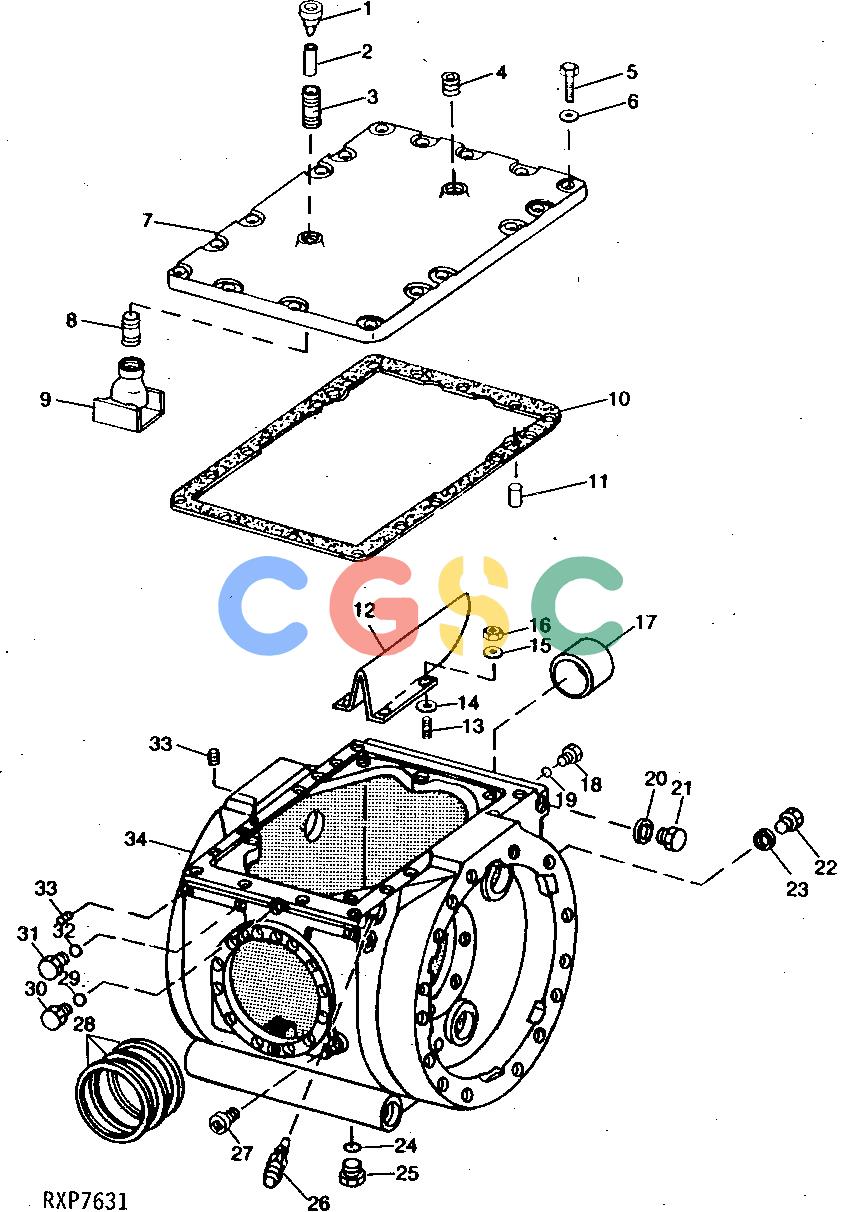

约翰迪尔零件查询1200 - AXLE RE38200 STANDARD DIFFERENTIAL CASE (OC-1)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 669 次

Pos.	Part No	Qty	Parts name	Comments
1.	U43871	[1]	Breather
2.	15H597	[1]	Coupling	3/8"
3.	29H659	[1]	Threaded Nipple	3/8"
4.	15H666	[1]	Pipe Plug	3/8"
5.	19H2550	[17]	Cap Screw	1/2" X 1-5/8"
6.	12H301	[17]	Lock Washer	1/2"
7.	R76214	[1]	Cover
10.	R63232	[1]	Gasket
11.	R27315	[2]	Dowel Pin
12.	R63852	[1]	Partition
13.	R32042	[4]	Stud
14.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065"
15.	A147R	[4]	Washer
16.	K40003	[4]	Lock Nut	(SUB FOR R41564)
17.	R97707	[1]	Bushing	(SUB FOR R64385)
18.	R27094	[4]	Drain Plug
19.	R26286	[4]	O-Ring
20.	R51494	[2]	Washer
21.	R69532	[2]	Fitting Plug
22.	R26727	[3]	Drain Plug
23.	A4827R	[3]	Washer
24.	R26375	[1]	O-Ring
25.	R33138	[1]	Fitting
26.	R21612	[2]	Bleed Valve
27.	15H690	[1]	Pipe Plug	3/4"
29.	F3171R	[1]	O-Ring
30.	R27175	[1]	Drain Plug
31.	R39112	[1]	Fitting
32.	R26375	[1]	O-Ring
33.	R162026	[8]	Pipe Plug
34.	AR96457	[1]	Case	(MARKED R72634 ) (SUB (2) AR36250, AR96458, (2) R44166, (3) R44167, R44168, R44399, (2) R47593, (2) R47594, (2) R47595, (2) R47596, (3) R63228 AND R63229)
...	B2979R	[1]	Plug
