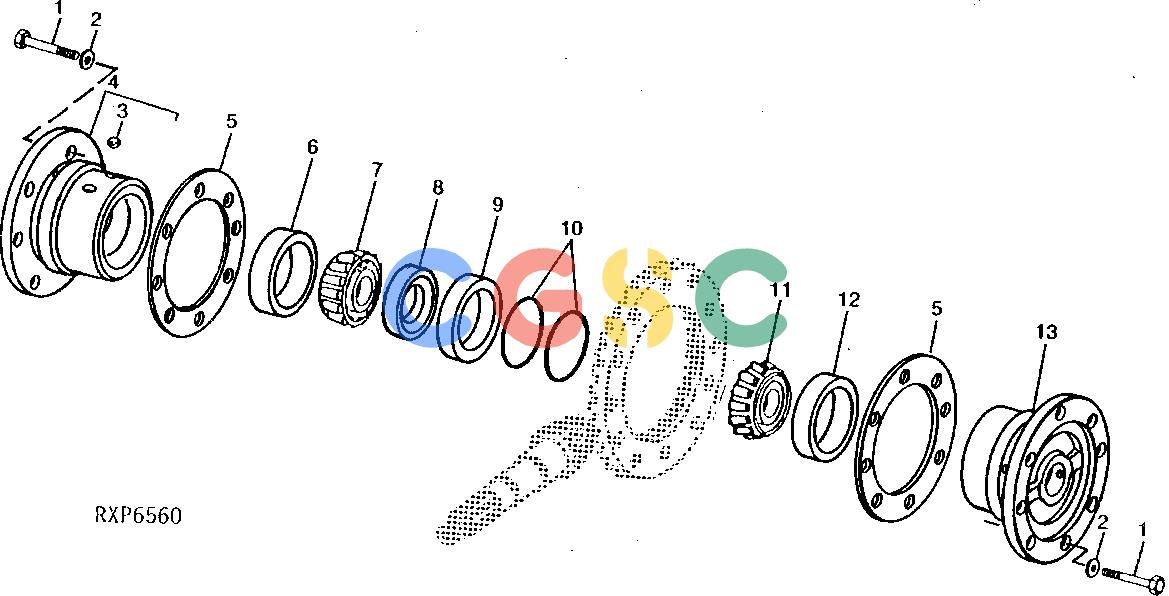

约翰迪尔零件查询1200 - AXLE RE38195, RE38196 DIFFERENTIAL BEARING QUILLS (OC-3)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R112882
|
[16] |
Cap Screw
|
|
| 2. |
T23891
|
[16] |
Washer
|
|
| 3. |
400R
|
[1] |
Ball
|
|
| 4. |
AR90011
|
[1] |
Bearing Housing W/O Bearing
|
|
| 5. |
R44402
|
[AR] |
Shim
|
|
| 5. |
R44403
|
[AR] |
Shim
|
|
| 5. |
R44404
|
[AR] |
Shim
|
|
| 7. |
JD9018
|
[1] |
Bearing Cone
|
|
| 8. |
R35735
|
[1] |
Seal
|
|
| 9. |
AR78259
|
[1] |
Seal
|
|
| 10. |
R44173
|
[2] |
Ring
|
|
| 11. |
JD9037
|
[1] |
Bearing Cone
|
|
| 12. |
JD8282
|
[1] |
Bearing Cup
|
|
| 13. |
R63091
|
[1] |
Bearing Housing W/O Bearing
|
|
