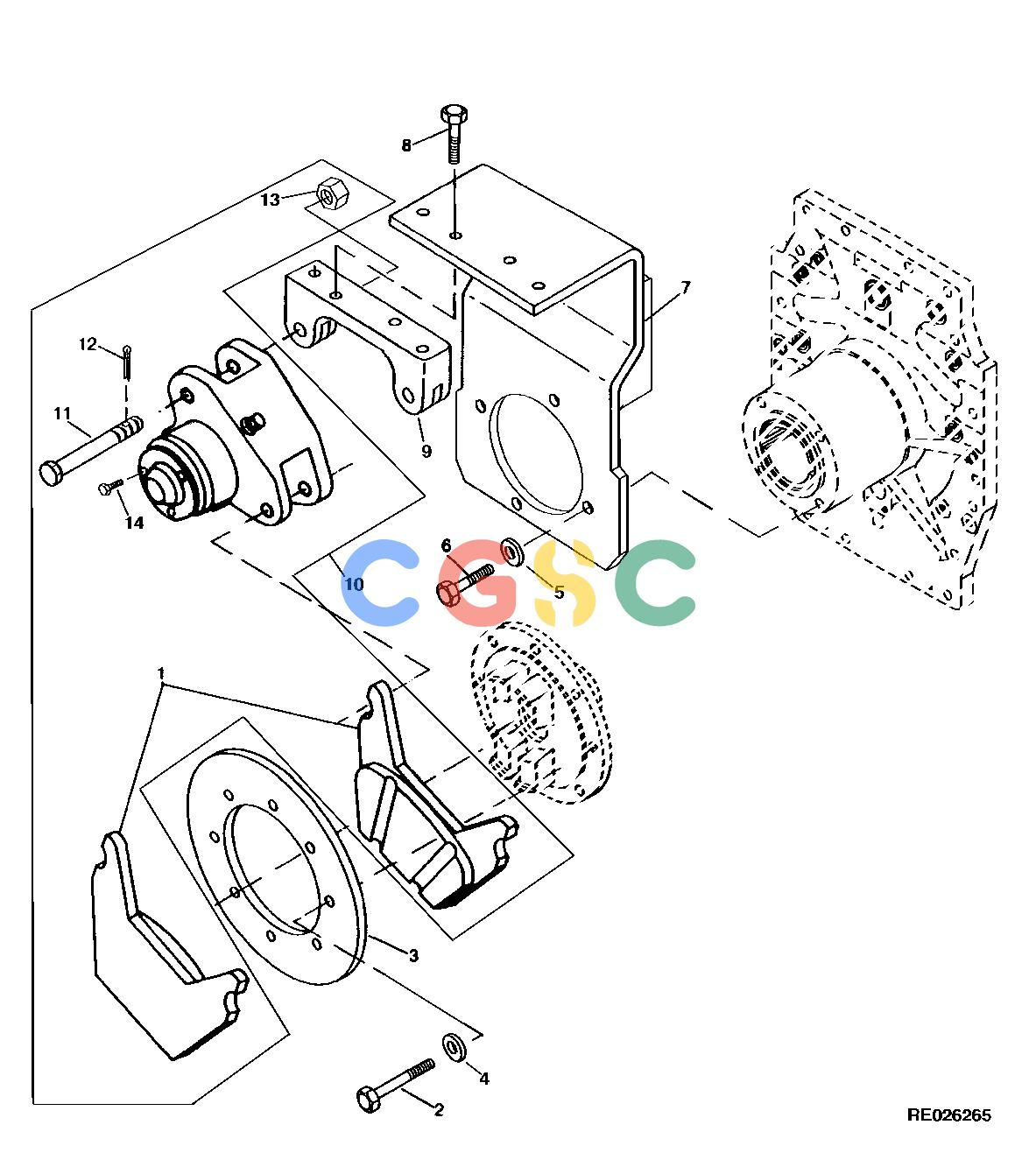

约翰迪尔零件查询1200 - AXLE RE38193 MANUAL APPLY BRAKES (OC-A) (SERIAL NO. 793083- )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT143311
|
[2] |
Brake Disk
|
|
| 2. |
19H2510
|
[8] |
Cap Screw
|
|
| 3. |
R116361
|
[1] |
Brake Disk
|
|
| 4. |
R47172
|
[8] |
Washer
|
|
| 5. |
R85226
|
[4] |
Washer
|
|
| 6. |
19H2008
|
[4] |
Cap Screw
|
|
| 7. |
RE53158
|
[1] |
Bracket
|
|
| 8. |
19M7786
|
[4] |
Screw
|
|
| 9. |
R100583
|
[1] |
Bracket
|
|
| 10. |
AT135528
|
[1] |
Disk Brake Caliper Assy
|
|
| 11. |
T141698
|
[2] |
Cap Screw
|
|
| 12. |
11M7092
|
[2] |
Cotter Pin
|
|
| 13. |
14M7179
|
[2] |
Nut
|
|
| 14. |
19M7302
|
[3] |
Cap Screw
|
|
