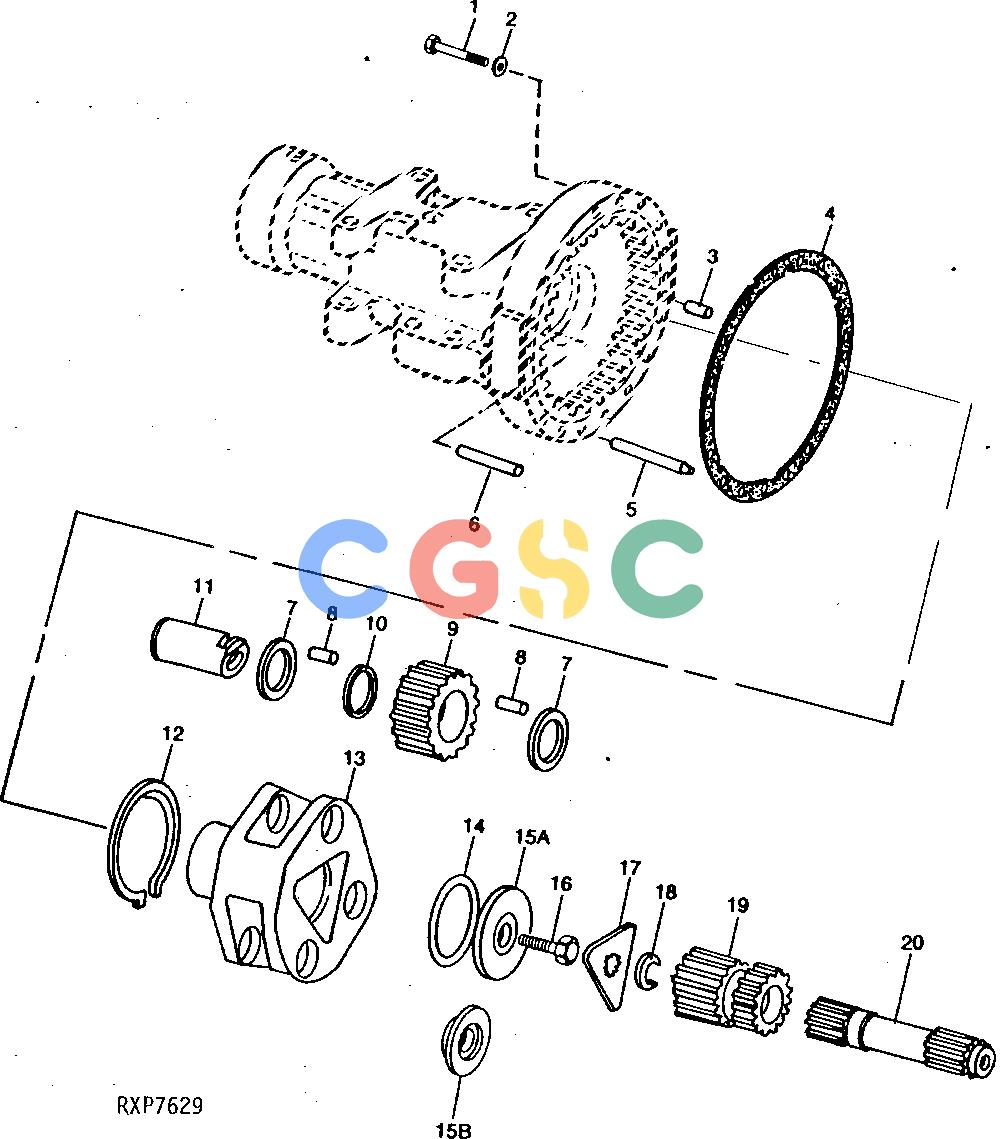

约翰迪尔零件查询1200 - AXLE RE3820,RE38489 INBOARD PLANETARY FINAL DRIVE (OC-2)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R107722
|
[18] |
Cap Screw
|
|
| 2. |
R135543
|
[18] |
Washer
|
|
| 3. |
R54380
|
[2] |
Dowel Pin
|
|
| 4. |
R100310
|
[1] |
Gasket
|
|
| 5. |
R46749
|
[1] |
Dowel Pin
|
|
| 6. |
R44832
|
[5] |
Dowel Pin
|
|
| 7. |
R83096
|
[6] |
Thrust Washer
|
|
| 8. |
R63249
|
[252] |
Needle Roller
|
|
| 9. |
R63234
|
[3] |
Pinion
|
|
| 10. |
R63235
|
[3] |
Washer
|
|
| 11. |
R63087
|
[3] |
Pinion Shaft
|
|
| 12. |
R63233
|
[1] |
Snap Ring
|
|
| 13. |
R81566
|
[1] |
Planet Pinion Carrier
|
|
| 14. |
R63237
|
[1] |
Shim
|
|
| 15A. |
R100257
|
[1] |
Spacer
|
|
| 15B. |
R81987
|
[1] |
Bushing
|
|
| 16. |
R81910
|
[1] |
Cap Screw
|
|
| 17. |
R92510
|
[1] |
Lock Plate
|
|
| 18. |
J15739
|
[1] |
Snap Ring
|
|
| 19. |
R63101
|
[1] |
Pinion
|
|
| 20. |
R63243
|
[1] |
Drive Shaft
|
|
