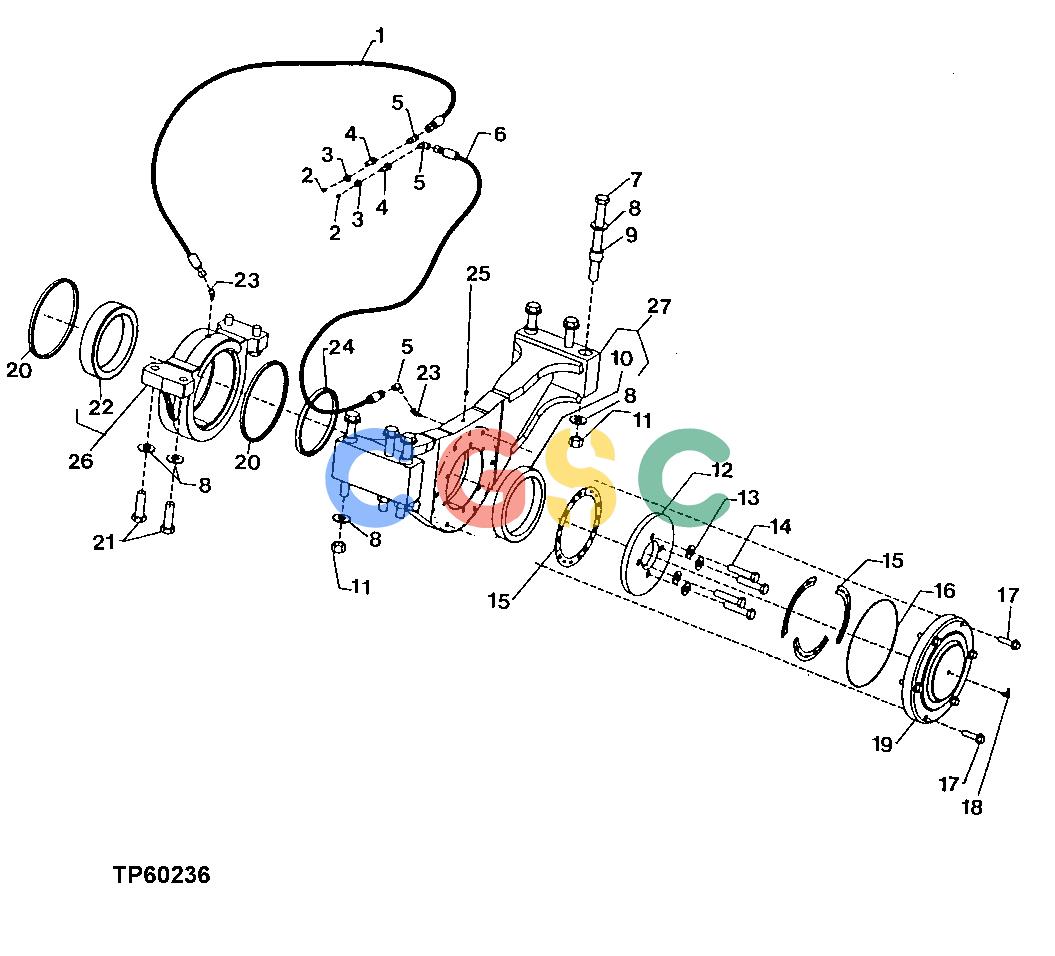

约翰迪尔零件查询RE160299 - AXLE DIFFERENTIAL SUPPORTS AND LUBRICATION LINESEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
161 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT207022
|
[1] |
Hydraulic Hose
|
|
| 2. |
JD7797
|
[2] |
Lubrication Fitting
|
|
| 3. |
E12379
|
[2] |
Nut
|
|
| 4. |
R36311
|
[2] |
Fitting
|
|
| 5. |
T56112
|
[3] |
Elbow Fitting
|
|
| 6. |
AT53541
|
[1] |
Hydraulic Hose
|
|
| 7. |
19M7778
|
[6] |
Cap Screw
|
|
| 8. |
24M7242
|
[16] |
Washer
|
|
| 9. |
T174463
|
[4] |
Bushing
|
|
| 10. |
T167837
|
[1] |
Bushing
|
|
| 11. |
14M7277
|
[6] |
Nut
|
|
| 12. |
T157055
|
[1] |
Disk
|
|
| 13. |
24M7241
|
[4] |
Washer
|
|
| 14. |
19M7719
|
[4] |
Cap Screw
|
|
| 15. |
T167924
|
[6] |
Thrust Bearing
|
|
| 16. |
T169329
|
[1] |
O-Ring
|
|
| 17. |
19M7813
|
[6] |
Screw
|
|
| 18. |
JD7781
|
[1] |
Lubrication Fitting
|
|
| 19. |
T157056
|
[1] |
Cover
|
|
| 20. |
AT206794
|
[2] |
Seal
|
|
| 21. |
19M8639
|
[4] |
Cap Screw
|
|
| 22. |
T167837
|
[1] |
Bushing
|
|
| 23. |
M45937
|
[2] |
Elbow Fitting
|
|
| 24. |
AT206794
|
[1] |
Seal
|
|
| 25. |
15H558
|
[1] |
Pipe Plug
|
|
| 26. |
AT210606
|
[1] |
Rear Axle Support
|
|
| 27. |
AT211367
|
[1] |
Rear Axle Support
|
|
