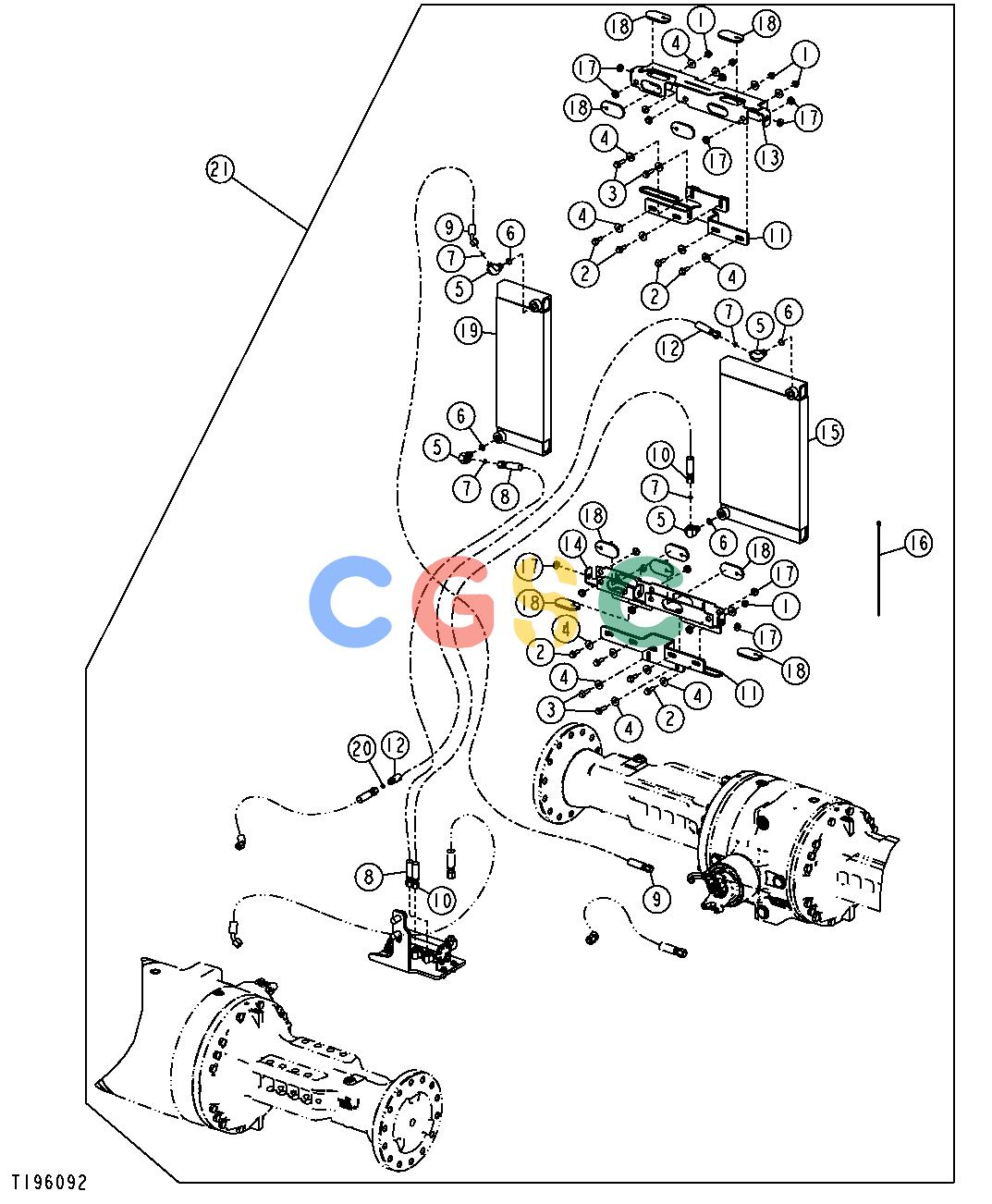

约翰迪尔零件查询RE160299 - AXLE FIELD INSTALLED AXLE COOLERS AND HOSESEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7296
|
[8] |
Flange Nut
|
|
| 2. |
19M7786
|
[8] |
Screw
|
|
| 3. |
19M7835
|
[4] |
Screw
|
|
| 4. |
24M7296
|
[20] |
Washer
|
|
| 5. |
38H1010
|
[4] |
Elbow Fitting
|
|
| 6. |
R26375
|
[4] |
O-Ring
|
|
| 7. |
T77613
|
[4] |
O-Ring
|
|
| 8. |
AT300845
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 9. |
AT300847
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 10. |
AT300849
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 11. |
AT305165
|
[2] |
Bracket
|
|
| 12. |
AT306758
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 13. |
AT307462
|
[1] |
Bracket
|
|
| 14. |
AT307463
|
[1] |
Bracket
|
|
| 15. |
AT307464
|
[1] |
Heat Exchanger
|
|
| 16. |
H77698
|
[4] |
Tie Band
|
|
| 17. |
T162238
|
[18] |
Grommet
|
|
| 18. |
T201546
|
[12] |
Grommet
|
|
| 19. |
AT307465
|
[1] |
Oil Cooler
|
|
| 20. |
T77613
|
[1] |
O-Ring
|
|
| 21. |
AT228286
|
[1] |
Field Installation Kit
|
|
