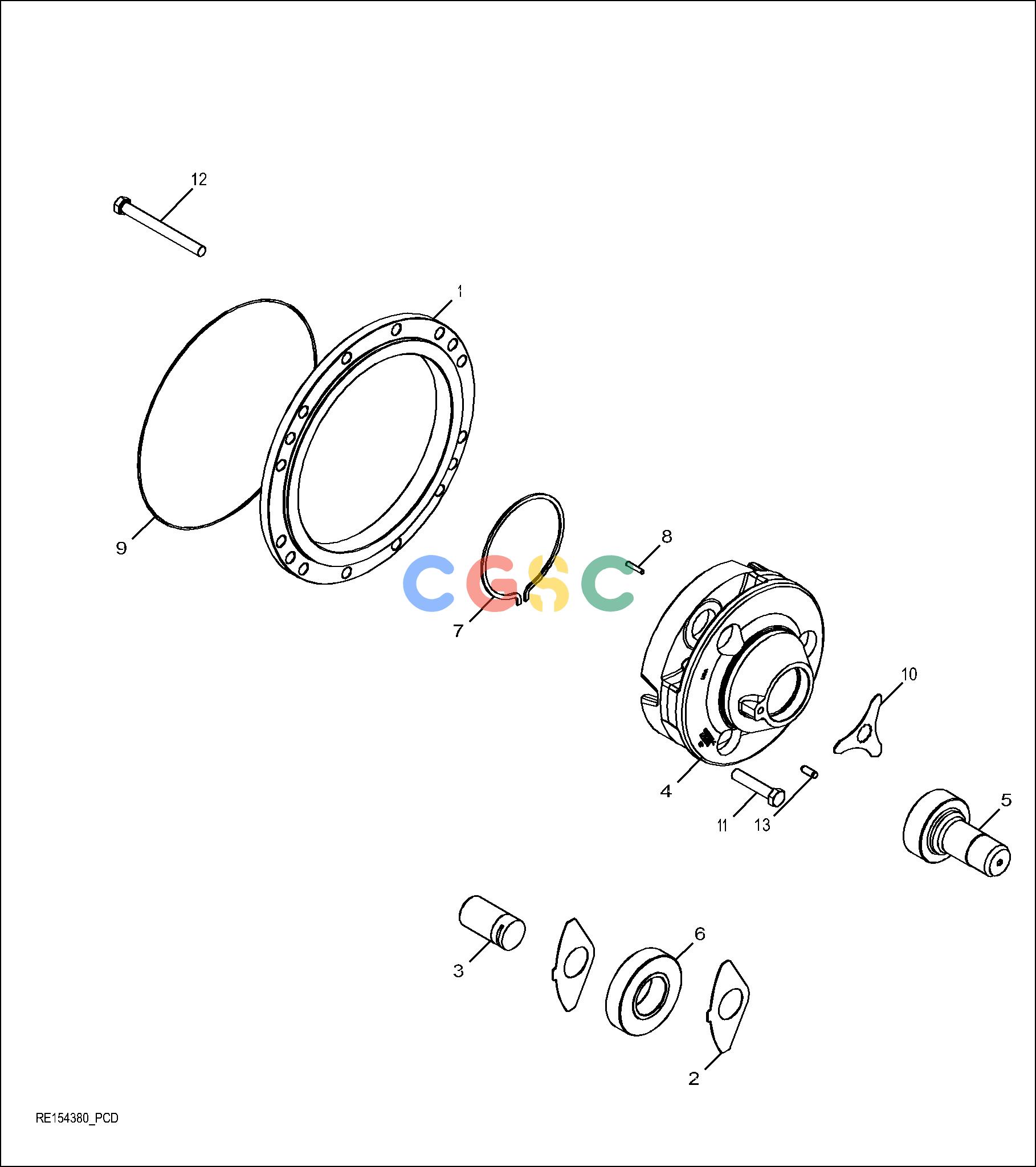

约翰迪尔零件查询RE160299 - AXLE RE154380 Inboard Planetary Final Drive 4.846:1EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R129669
|
[2] |
Ring Gear
|
|
| 2. |
YZ120569
|
[12] |
Thrust Washer
|
|
| 3. |
R132858
|
[6] |
Pinion Shaft
|
|
| 4. |
YZ120448
|
[2] |
Planet Pinion Carrier
|
|
| |
YZ120569
|
[2] |
Thrust Washer
|
|
| 5. |
R153386
|
[2] |
Universal Driveshaft
|
|
| 6. |
R153387
|
[6] |
Planet Pinion
|
|
| 7. |
R57055
|
[2] |
Snap Ring
|
|
| 8. |
R63249
|
[162] |
Needle Roller
|
|
| 9. |
R87047
|
[2] |
Ring
|
|
| 10. |
R93172
|
[2] |
Lock Plate
|
|
| 11. |
19M7720
|
[16] |
Cap Screw
|
|
| 12. |
19M8019
|
[16] |
Cap Screw
|
|
| 13. |
YZ120909
|
[2] |
Spring Pin
|
|
